Hybrid Model Based Identification of Local Rubbing Fault in Rotor Systems

Abstract:

A quantitative identification procedure for local rubbing fault in rotor systems based on a hybrid model is proposed. The hybrid model combines finite element model of rotor and rigid discs, online identified oil film stiffness and elastic supports. The identification algorithm of oil film parameters is stated in detail. The hybrid model based diagnosis process for local rubbing fault is described with assumption of periodic rubbing forces. With the help of modal expansion technique, the estimated rubbing forces at each node along rotor are checked for the rubbing position. The estimated rubbing forces at ascertained position are then used in fault severity assessing quantitatively next. These approaches have been tested successfully on a test rig with single rotor double discs.

You might also be interested in these eBooks

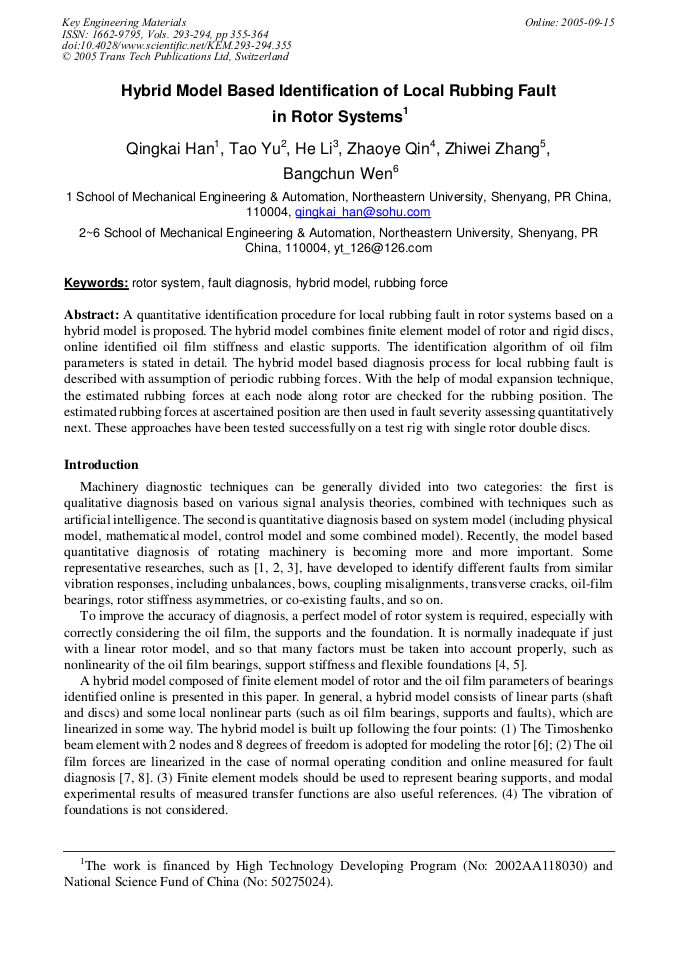

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 293-294)

Pages:

355-364

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.293-294.355

Citation:

Cite this paper

Online since:

September 2005

Authors:

Qing Kai Han, Tao Yu, He Li, Zhao Ye Qin, Zhi Wei Zhang, Bang Chun Wen

Keywords:

Fault Diagnosis, Hybrid Model, Rotor System, Rubbing Force

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I. Mayes and J. E. T. Penny: Model based diagnostics of faults in rotating machines, 12th Intern. Congress on Condition Monitoring and Diagnostic Engineering Management, (1999), p.431~440.

Google Scholar

[2] N. Bachschmid, P. Pennacchi and A. Vania: Identification of multiple faults in rotor systems, Journal of Sound and Vibration, 254(2), (2002), p.327~366.

DOI: 10.1006/jsvi.2001.4116

Google Scholar

[3] R. Markert, R. Platz and M. Siedler: Model based fault identification in rotor systems by least squares fiting, Proc. Of ISROMAC-8, (2000), p.900~906.

Google Scholar

[4] B. C. Wen, X. H. Wu, Q. Ding, Q. K. Han. Dynamics and experiments of fault rotors, Science press, (2004), (in Chinese).

Google Scholar

[5] J. Kicinski, R. Drozdowski, P. Materny, The nonlinear analysis of the effect of support construction properties on the dynamic properties of multi-support rotor systems, Journal of Sound and Vibration, 206(4), 1997, pp.523-539.

DOI: 10.1006/jsvi.1997.1113

Google Scholar

[6] H.D. Neison, J.M. McVaugh: The dynamics of rotor-bearing systems using finite elements. Transactions of the ASME, Journal of Engineering for Industry. (3) (1976), pp.593-800.

DOI: 10.1115/1.3438942

Google Scholar

[7] S. H. Bi, W. H. Huang, W. X. Jing, G. T. Zheng, identification of both dynamic characteristics of the journal bearings an unbalances of the rotor, Structure & Environment Engineering, (2), (1995), p.8~15, 20.

Google Scholar

[8] R. Tiwari, A.W. Lees, M.I. Friswell: Identification of speed-dependent bearing parameters. Journal of Sound and Vibration. Vol. 254 (2002), pp.967-986.

DOI: 10.1006/jsvi.2001.4140

Google Scholar
