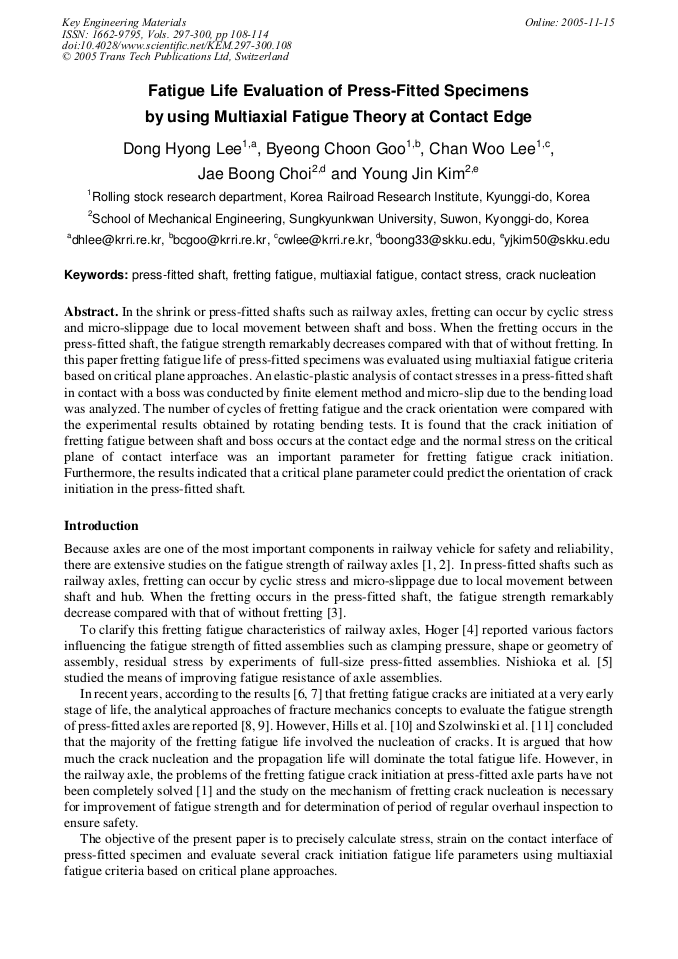

Fatigue Life Evaluation of Press-Fitted Specimens by Using Multiaxial Fatigue Theory at Contact Edge

Abstract:

In the shrink or press-fitted shafts such as railway axles, fretting can occur by cyclic stress and micro-slippage due to local movement between shaft and boss. When the fretting occurs in the press-fitted shaft, the fatigue strength remarkably decreases compared with that of without fretting. In this paper fretting fatigue life of press-fitted specimens was evaluated using multiaxial fatigue criteria based on critical plane approaches. An elastic-plastic analysis of contact stresses in a press-fitted shaft in contact with a boss was conducted by finite element method and micro-slip due to the bending load was analyzed. The number of cycles of fretting fatigue and the crack orientation were compared with the experimental results obtained by rotating bending tests. It is found that the crack initiation of fretting fatigue between shaft and boss occurs at the contact edge and the normal stress on the critical plane of contact interface was an important parameter for fretting fatigue crack initiation. Furthermore, the results indicated that a critical plane parameter could predict the orientation of crack initiation in the press-fitted shaft.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 108-114
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.108
• Online since: November 2005
• Authors: Dong Hyung Lee, Byeong Choon Goo, Chan Woo Lee, Jae Boong Choi, Young Jin Kim
• Keywords: Contact Stress, Crack Nucleation, Fretting Fatigue, Multiaxial Fatigue, Press-Fitted Shaft

References

[1] K. Hirakawa, K. Toyama and M. Kubota: The analysis and prevention of failure in railway axles, Int. J. Fatigue Vol. 20 No. 2 (1998), p.135.

DOI: 10.1016/s0142-1123(97)00096-0

[2] Toyama, Kazuo, Inoue, Jyun: Fatigue reliability assessment and thirty years maintenance history of axles for Shinkansen, Sumitomo Metals Vol. 48 No. 2 (in Japanese) (1996), p.13.

[3] R.B. Waterhouse: FRETTING CORROSION (Pergamon Press, Oxford 1972).

[4] O.J. Hoger: Influence of fretting corrosion on the fatigue strength of fitted members, ASTM STP144 (1952), p.40.

[5] K. Nishioka et al.: Study on the means for Improvement in Fatigue Strength of press-fitted axles, Trans. Jpn. Soc. Mech. Eng. Vol. 33 No. 248 (in Japanese) (1967), p.503.

[6] K. Nishioka and K. Hirakawa: Fundamental investigations of fretting fatigue (Part 3. Some Phenomena and Mechanics of Surface Cracks), Bull. of JSME Vol. 12 No. 51 (1969), p.397.

DOI: 10.1299/jsme1958.12.397

[7] K. Endo: Practical Observations of Initiation and Propagation of Fretting Fatigue Cracks, in Fretting Fatigue (Applied Science Publishers, London 1981).

[8] H. ISHIZUKA, et al.: Fracture Mechanics Evaluation of Fatigue Tests Using Shinkansen Vehicle Axles with Artificial Flaws on Their Wheelseats, RTRI Report Vol. 9 No. 6 (in Japanese) (1995), p.25.

[9] T. Makino, M. Yamamoto and K. Hirakawa: Fracture Mechanics Approach to the Fretting Fatigue Strength of Axle Assemblies, Fretting Fatigue: Current Technology and Practices, ASTM STP 1367, D.W. Hoeppner, V. Chandrasekaran and C.B. Elliott, eds., American Society for Testing and Materials, West Conshohocken, PA. (2000).

DOI: 10.1520/stp14751s

[10] D.A. Hills, D. Nowell and J.J. O'Connor: On the mechanics of fretting fatigue, Wear Vol. 125 (1988), p.129.

[11] P. Matthew, Szolwinski and Thomas N. Farris: Mechanics of fretting fatigue crack formation, Wear Vol. 198 (1996), p.93.

DOI: 10.1016/0043-1648(96)06937-2

[12] Y. Mutoh, K. Tanaka: Fretting Fatigue in Several Steels and a Cast Iron, Wear Vol. 125 (1988), p.175.

DOI: 10.1016/0043-1648(88)90201-3

[13] C. Ruiz, P.H.B. Boddington and K.C. Chen: An investigation of fatigue and fretting in a dovetail joint, Experimental Mechanics Vol. 24 No. 3 (1984), p.208.

DOI: 10.1007/bf02323167

[14] D. Nowell and D.A. Hills: Crack Initiation Criteria in Fretting Fatigue, Wear Vol. 136 (1990), p.329.

DOI: 10.1016/0043-1648(90)90155-4

[15] R.I. Stephens et al.: Metal Fatigue in Engineering (John Wiley & Sons, 2001).
