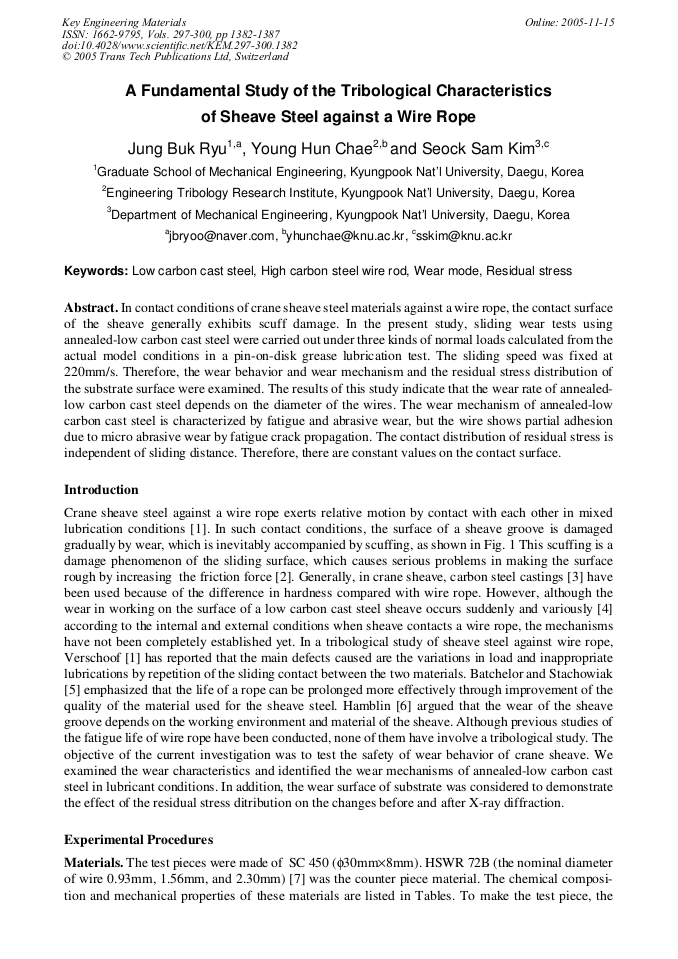

A Fundamental Study of the Tribological Characteristics of Sheave Steel against a Wire Rope

Abstract:

In contact conditions of crane sheave steel materials against a wire rope, the contact surface of the sheave generally exhibits scuff damage. In the present study, sliding wear tests using annealed-low carbon cast steel were carried out under three kinds of normal loads calculated from the actual model conditions in a pin-on-disk grease lubrication test. The sliding speed was fixed at 220mm/s. Therefore, the wear behavior and wear mechanism and the residual stress distribution of the substrate surface were examined. The results of this study indicate that the wear rate of annealedlow carbon cast steel depends on the diameter of the wires. The wear mechanism of annealed-low carbon cast steel is characterized by fatigue and abrasive wear, but the wire shows partial adhesion due to micro abrasive wear by fatigue crack propagation. The contact distribution of residual stress is independent of sliding distance. Therefore, there are constant values on the contact surface.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 1382-1387
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.1382
• Online since: November 2005
• Authors: Jung Buk Ryu, Young Hun Chae, Seock Sam Kim
• Keywords: High Carbon Steel Wire Rod, Low Carbon Cast Steel, Residual Stress, Wear Mode

References

[1] I.J. Verschoof: Cranes design, practice, and maintenance (Engineering Publishing, London 1999).

[2] L.L. Ting: Lubricated piston rings and cylinder bore wear, wear control Handbook (American Society of Mechanical Engineers, 1980).

[3] JIS G 5101: Carbon Steel Castings (1991).

[4] B. Bhushan and B. Gupta: Handbooh of Tribology (McGraw-Hill, New York 1991).

[5] A.W. Batchelor and G.W. Stachowiak: Extending the life of wire ropes by the development of Improved wire coating and sheave materials, Trans of Mechanical Engineering, IE Aust. ME17. No. 3 (1992), pp.161-169.

[6] M.G. Hamblin and G.W. Stachowiak: Environmental and sheave material effects on the wear of roping wire and sheave, Tribology International 28 No. 5 (1990), pp.307-315.

DOI: 10.1016/0301-679x(94)00002-8

[7] JIS G 3506: High carbon steel wire rods (1996).

[8] N. Teshima, T. Uchida and M. Kikuchi: Tribology of equiments for elevators. elevator technology Ⅱ, Proceedings of Elevcon '88, International Association of Elevator Engineerings (1988), p.263.

[9] H.Y. Lee: Analysis of sliding wear mode on annealed steel by X-ray diffraction technique, Wear Vol. 256 (2004), pp.657-663.

DOI: 10.1016/s0043-1648(03)00512-x

[10] G.W. Stachowiak, A.W. Batchelor and G.B. Stachowiak: Wear and film transfer between wire rope and sheave, Int' Tribology Conf', Brisbane, IEA Conf' Publ' no. 90/14 (1990), pp.23-27.

[11] J.W. Kim and Y.Z. Lee: The residual stresses on lubricated sliding surfaces during break-in and up to scuffing, Wear, 251 (2001), pp.985-989.

DOI: 10.1016/s0043-1648(01)00701-3
