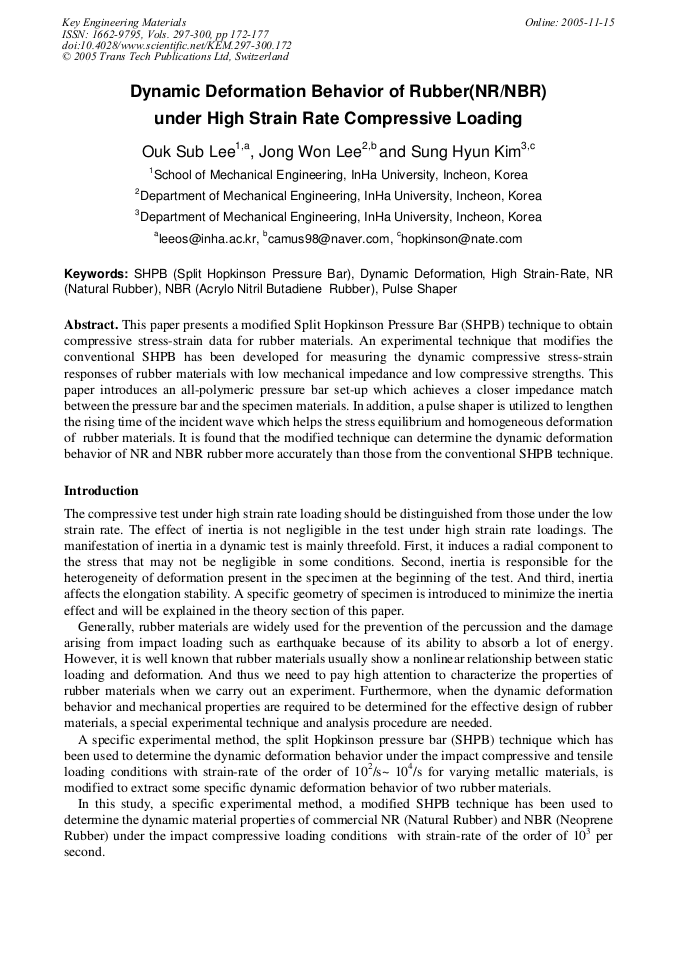

Dynamic Deformation Behavior of Rubber (NR/NBR) under High Strain Rate Compressive Loading

Abstract:

This paper presents a modified Split Hopkinson Pressure Bar (SHPB) technique to obtain compressive stress-strain data for rubber materials. An experimental technique that modifies the conventional SHPB has been developed for measuring the dynamic compressive stress-strain responses of rubber materials with low mechanical impedance and low compressive strengths. This paper introduces an all-polymeric pressure bar set-up which achieves a closer impedance match between the pressure bar and the specimen materials. In addition, a pulse shaper is utilized to lengthen the rising time of the incident wave which helps the stress equilibrium and homogeneous deformation of rubber materials. It is found that the modified technique can determine the dynamic deformation behavior of NR and NBR rubber more accurately than those from the conventional SHPB technique.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 172-177
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.172
• Online since: November 2005
• Authors: Ouk Sub Lee, Jong Won Lee, Sung Hyun Kim
• Keywords: Acrylo Nitril Butadiene Rubber NBR, Dynamic Deformation, High Strain Rate, Natural Rubber (NR), Pulse Shaper, Split Hopkinson Pressure Bar (SHPB)

References

[1] L . Pochhammer: J. Reine Angewandte Math, 81 (1876), p.324.

[2] C. Chree: Cambridge Phil. Soc. Trans. Vol. 14 (1889), p.250.

[3] R. M. Davies: Phil. Tran. A, 240 (1948), p.375.

[4] O.S. Lee, S.S. Lee, J.H. Chung and H.S. Kang: Int. J. KSME Vol. 12 No. 6 (1998), pp.1143-1149.

[5] O.S. Lee, M.S. Kim, K.J. Kim, S.W. Hwang and K.S. Cho : Int. J. Modern Physics Vol. 17 No. 8 & 9 (2003), pp.1415-1420.
