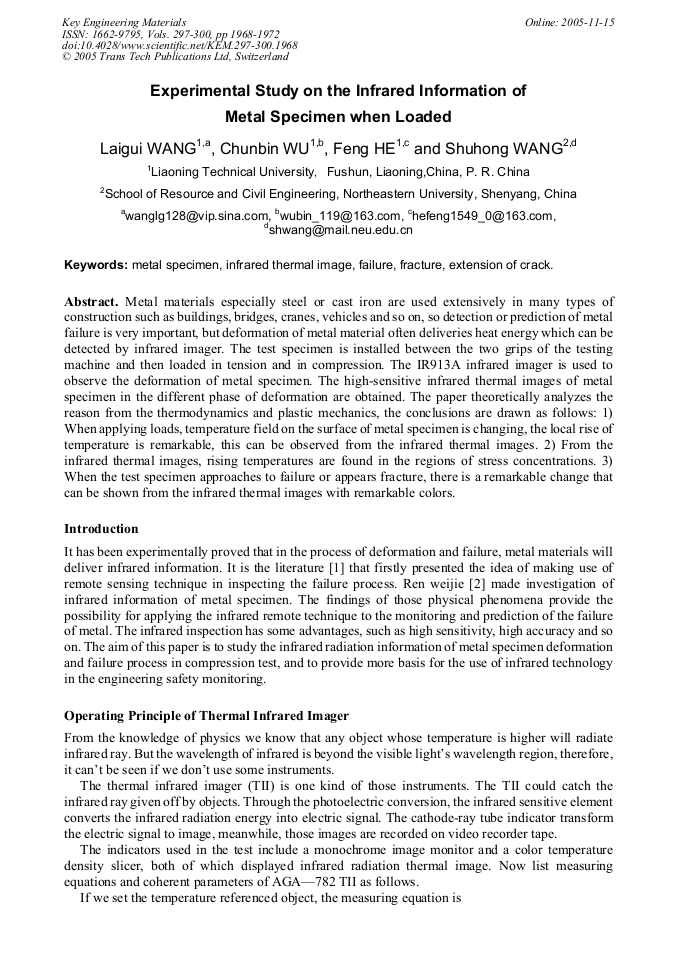

Experimental Study on the Infrared Information of Metal Specimen when Loaded

Abstract:

Metal materials especially steel or cast iron are used extensively in many types of construction such as buildings, bridges, cranes, vehicles and so on, so detection or prediction of metal failure is very important, but deformation of metal material often deliveries heat energy which can be detected by infrared imager. The test specimen is installed between the two grips of the testing machine and then loaded in tension and in compression. The IR913A infrared imager is used to observe the deformation of metal specimen. The high-sensitive infrared thermal images of metal specimen in the different phase of deformation are obtained. The paper theoretically analyzes the reason from the thermodynamics and plastic mechanics, the conclusions are drawn as follows: 1) When applying loads, temperature field on the surface of metal specimen is changing, the local rise of temperature is remarkable, this can be observed from the infrared thermal images. 2) From the infrared thermal images, rising temperatures are found in the regions of stress concentrations. 3) When the test specimen approaches to failure or appears fracture, there is a remarkable change that can be shown from the infrared thermal images with remarkable colors.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 1968-1972
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.1968
• Online since: November 2005
• Authors: Lai Gui Wang, Chunbin Wu, Feng He, Shu Hong Wang
• Keywords: Extension of Crack, Failure, Fracture, Infrared Thermal Image, Metal Specimen

References

[1] Geng Naiguang, Chui Chenyu and Deng Mingde: The application of remote sensing monitor in the test of rock burst and the beginning of remote sensing rock mechanics [J], Acta Seismologica Sinica (14) (1992).

DOI: 10.1007/bf02651832

[2] Ren Weijie, Dong Yufen and Li Shumin: Experiment study on the failure of metal [J], Journal of Liaoning Technical University 18(5) (1999), pp.545-548.

[3] R.C. HIbbeler: Mechanics of Materials [M] (Higher Education Press, 2004).

[4] Geng Naiguang: New Rresults of Experimental Study of Solid Mechanics by Using Rremote Sensing Technology [J], Advances in mechanics, 27 (2) (1997) pp.185-192.
