Degradation Evaluation of 2.25Cr-1Mo Steel Using Nondestructive Method

Jong Seo Park; Un Bong Baek; Jeong Min Kim; Seung Hoon Nahm; Bong Young Ahn

doi:10.4028/www.scientific.net/KEM.297-300.1951

Paper Titles

Treatment of Cut Slope and Analysis of its Reliability
p.1925

A Unified Method for the Prediction of the Fatigue Strength of Small-Hole-Containing Components under Combined Loading
p.1929

Interference Effect of Interaction Cracks Investigated by Photoelastic and Caustics Methods
p.1939

A Study on the Evaluation of Creep Degradation of High Temperature Pipeline Steel by Non-Destructive Test
p.1945

Degradation Evaluation of 2.25Cr-1Mo Steel Using Nondestructive Method
p.1951

Determination of the Young's Modulus and Loss Factor by Acoustic Bending Vibration Methods
p.1958

Pattern Classification of Acoustic Emission Signals during Wood Drying by Principal Component Analysis and Artificial Neural Network
p.1962

Experimental Study on the Infrared Information of Metal Specimen when Loaded
p.1968

On Nondestructive Evaluation of Wood Materials Using Ultrasonic Techniques
p.1973

HomeKey Engineering MaterialsKey Engineering Materials Vols. 297-300Degradation Evaluation of 2.25Cr-1Mo Steel Using...

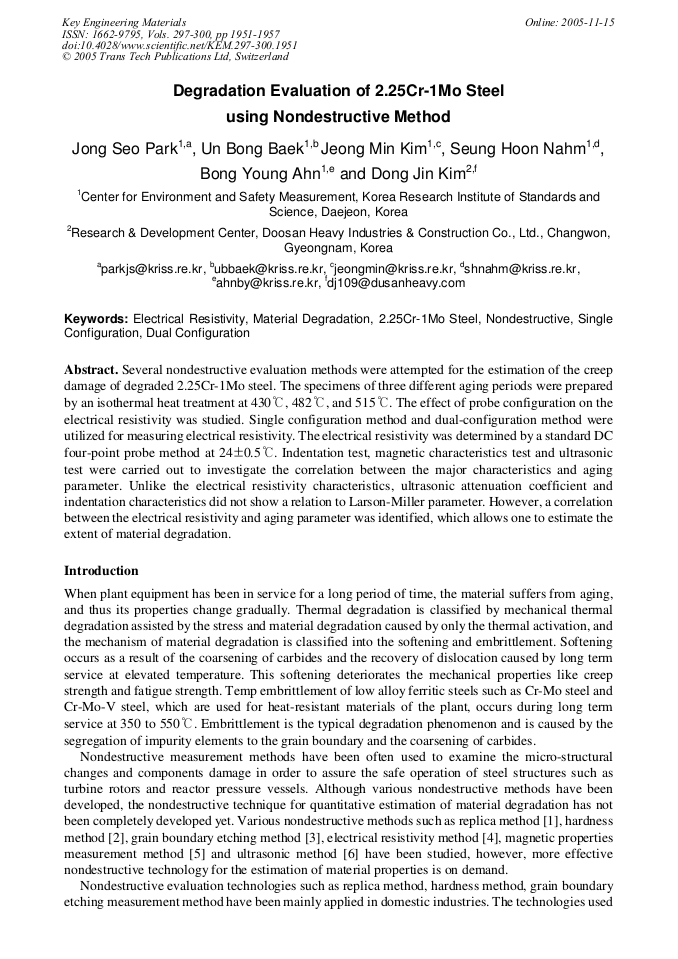

Degradation Evaluation of 2.25Cr-1Mo Steel Using Nondestructive Method

Abstract:

Several nondestructive evaluation methods were attempted for the estimation of the creep damage of degraded 2.25Cr-1Mo steel. The specimens of three different aging periods were prepared by an isothermal heat treatment at 430°C, 482°C, and 515°C. The effect of probe configuration on the electrical resistivity was studied. Single configuration method and dual-configuration method were utilized for measuring electrical resistivity. The electrical resistivity was determined by a standard DC four-point probe method at 24±0.5°C. Indentation test, magnetic characteristics test and ultrasonic test were carried out to investigate the correlation between the major characteristics and aging parameter. Unlike the electrical resistivity characteristics, ultrasonic attenuation coefficient and indentation characteristics did not show a relation to Larson-Miller parameter. However, a correlation between the electrical resistivity and aging parameter was identified, which allows one to estimate the extent of material degradation.
