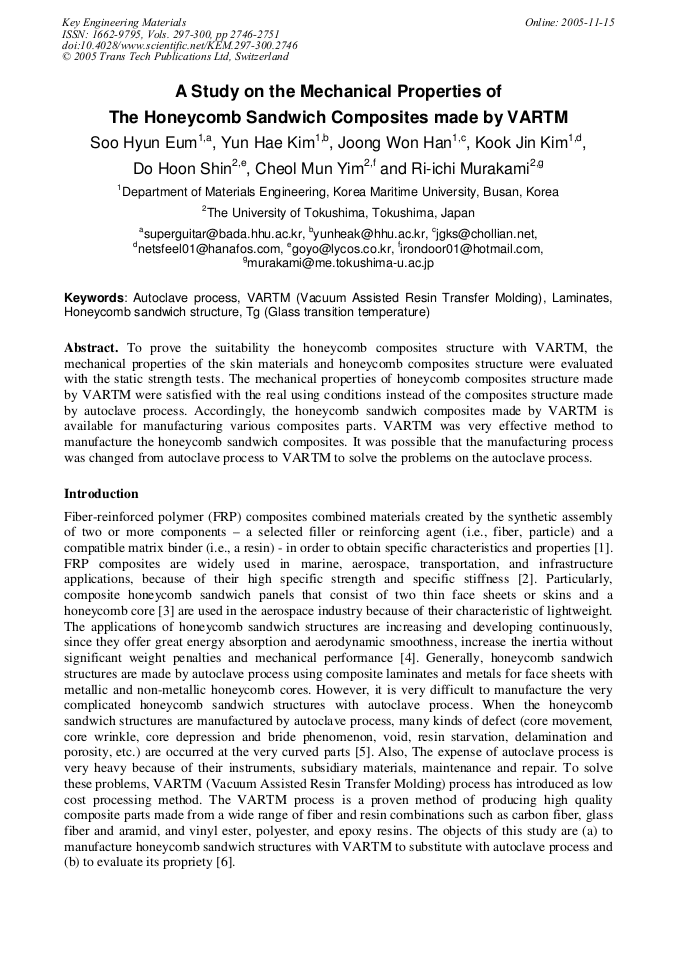

A Study on the Mechanical Properties of the Honeycomb Sandwich Composites made by VARTM

Abstract:

To prove the suitability the honeycomb composites structure with VARTM, the mechanical properties of the skin materials and honeycomb composites structure were evaluated with the static strength tests. The mechanical properties of honeycomb composites structure made by VARTM were satisfied with the real using conditions instead of the composites structure made by autoclave process. Accordingly, the honeycomb sandwich composites made by VARTM is available for manufacturing various composites parts. VARTM was very effective method to manufacture the honeycomb sandwich composites. It was possible that the manufacturing process was changed from autoclave process to VARTM to solve the problems on the autoclave process.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 2746-2751
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.2746
• Online since: November 2005
• Authors: Soo Hyun Eum, Yun Hae Kim, Joong Won Han, Kook Jin Kim, Do Hoon Shin, Cheolmun Yim, Riichi Murakami
• Keywords: Autoclave Process, Glass Transition Temperature (T_g), Honeycomb Sandwich Structure, Laminates, Vacuum Assisted Resin Transfer Molding VARTM

References

[1] George Lubin: Handbook of Composites, pp.1-2.

[2] C. Ulven, U.K. Vaidya and M.V. Hosur: Effect of projectile shape during ballistic perforation of VARTM carbon/epoxy composite panels, Composite Structures 61 (2003), pp.143-150.

DOI: 10.1016/s0263-8223(03)00037-0

[3] Isaac M. Daniel and Jandro L. Abot: Fabrication, testing and analysis of composite sandwich beams, Composites Science and Technology 60 (2000), pp.2455-2463.

DOI: 10.1016/s0266-3538(00)00039-7

[4] Wahyu Lestari and Pizhong Qiao: Damage detection of fiber-reinforced polymer honeycomb sandwich beams (Published by Elsevier Ltd., 2004).

[5] S-C. Kwon, C-M. Yim, B-K. Choi, S-W. Lee, J-W. Han and Y-H. Kim: A Study on the Analysis of Causes & Minimizing of Defects at Composite Materials Sandwich Aircraft Structure in Autoclave Processing, Journal of The Korean Society for Composite Materials, 2 Vol. 014, N. 001 (2001).

[6] Anca Pirvu, Douglas J. Gardner and Roberto Lopez-Anido: Carbon fiber-vinyl ester composite reinforcement of wood using the VARTM/SCRIMP fabrication process, Composites: Part A 35 (2004), pp.1257-1265.

DOI: 10.1016/j.compositesa.2004.04.003

[7] S-H. Eum, S-U. Lee, J-W. Han, K-J. Kim, Y-S. Kim and Y-H. Kim: A Study on the Evaluation of the properties change of Aircraft Composites Parts During Repair by Thermal Analysis Test, The Proceeding of Korean Society for Composite Materials 2002 Autumn Annual Meeting, pp.33-37.

[8] ASTM D3039, Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials (West Conshohocken, PA: American Society of Testing and Materials, 2000).

[9] ASTM D695, Standard Test Method for Compressive Properties of Rigid Plastics (West Conshohocken, PA: American Society of Testing and Materials, 2000).

[10] ASTM D3410, Standard Test Method for Compressive Properties of Polymer Matrix Composite Materials with Unsupported Gage Section by Shear Loading (West Conshohocken, PA: American Society of Testing and Materials, 2000).

DOI: 10.1520/d3410_d3410m-16e01

[11] ASTM D790, Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials (West Conshohocken, PA: American Society of Testing and Materials, 2000).

DOI: 10.1520/d0790-07

[12] ASTM D2344, Standard Test Method for Apparent Interlaminar Shear Strength of Parallel Fiber Composites by Shortbeam Method (West Conshohocken, PA: American Society of Testing and Materials, 2000).

[13] ASTM D3518, Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a 645° Laminate (West Conshohocken, PA: American Society of Testing and Materials, 2000).

DOI: 10.1520/d3518_d3518m-94e01
