Equivalent Modeling for Shape Design of IPMC (Ionic Polymer-Metal Composite) as Flapping Actuator

Abstract:

In this work, flapping wings actuated by IPMCs are designed and simulated to mimick birds wing. In order for the wing to generate lift and thrust during flapping motion, the wing must be able to flap and twist at the same time. For design of such wings, shape of the IPMC actuator need to be designed such that the actuator can create bending and twisting motions during wing strokes. To determine the shape of the IPMC actuator, an equivalent bimorph beam model has been proposed based on the measured force-displacement data of an IPMC. The equivalent model and thermal analogy are used for numerical simulation of IPMC actuated wings to determine suitable shape of the IPMC actuator. In this way, we could select a best performing wing that can create the largest twist motion during flapping of the wing.

You might also be interested in these eBooks

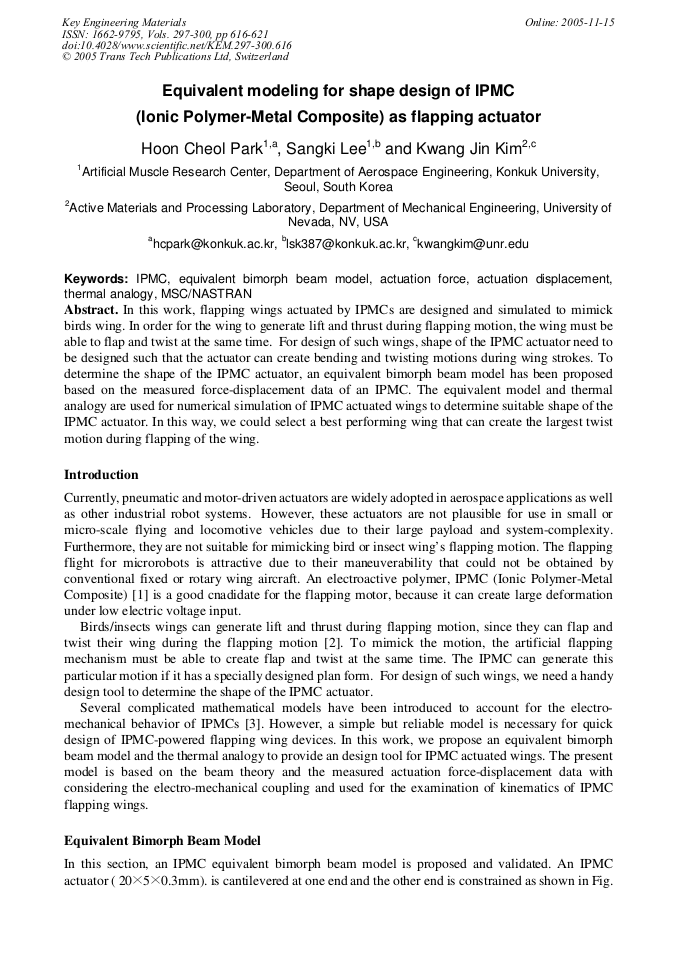

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 297-300)

Pages:

616-621

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.297-300.616

Citation:

Cite this paper

Online since:

November 2005

Authors:

Hoon Cheol Park, Sang Ki Lee, Kwang Jin Kim

Keywords:

Actuation Displacement, Actuation Force, Equivalent Bimorph Beam Model, Ionic Polymer Metal Composite (IPMC), MSC/NASTRAN, Thermal Analogy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K.J. Kim and M. Shahinpoor: Ionic polymer-Metal composites: II. Manufacturing techniques, Smart Materials and Structures Vol. 12 (2003), pp.65-79.

DOI: 10.1088/0964-1726/12/1/308

Google Scholar

[2] D.E. Alexander: Nature's Flyers, Chapter 4 (The Johns Hopkins University Press, London 2003).

Google Scholar

[3] J.W. Paquette and K.J. Kim: An Equilibrium Circuit Model for Ionic Polymer-Metal Composites and Their Performance Improvement by a Clay-Based Polymer Nano-Composite Technique, Journal of Intelligent Materials Systems and Structures Vol. 14 (2003).

DOI: 10.1115/imece2002-39003

Google Scholar

[4] Q. Wang, Q. Zhang, B. Xu, R. Liu and E. Cross: Nonlinear piezoelectric behavior of ceramic bending mode actuators under strong electric fields, Journal of Applied Physics Vol. 86 (1999), pp.3352-3360.

DOI: 10.1063/1.371213

Google Scholar

[5] MSC/NASTARAN User's Guide (MSC 2003).

Google Scholar

[6] B.K. Taleghani and J.F. Campbell: Non-linear Finite Element Modeling of THUNDER Piezoelectric Actuators NASA/TM-1999-209322 (1999).

Google Scholar

[7] S. Nemat-Nasser: Micromechanics of actuation of ionic polymer-metal composites, Journal of Applied Physics Vol. 92 (2002), pp.2899-2915.

DOI: 10.1063/1.1495888

Google Scholar
