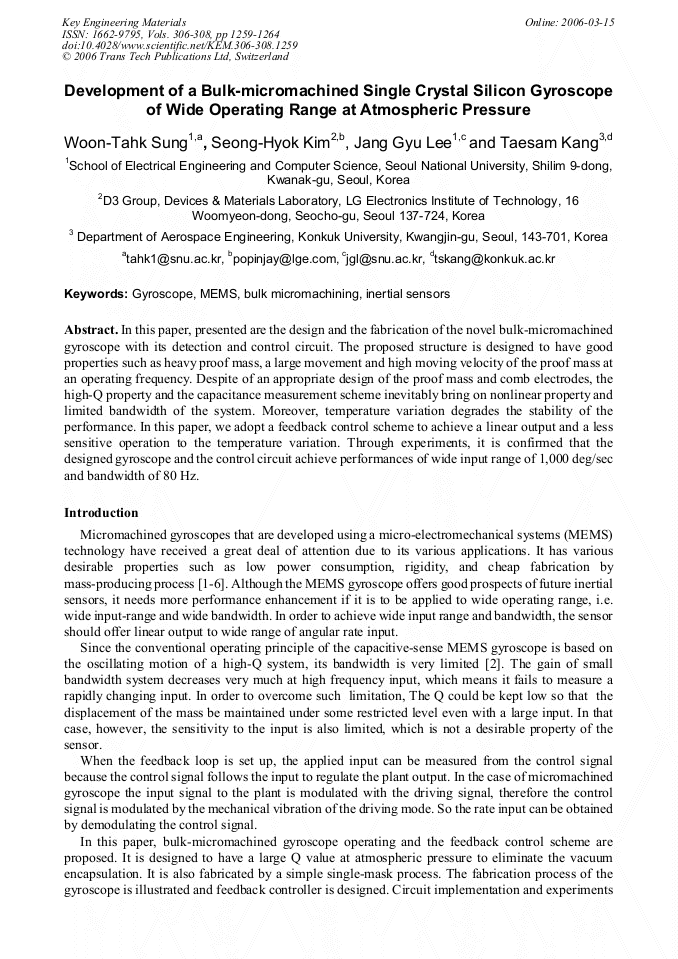

Development of a Bulk-Micromachined Single Crystal Silicon Gyroscope of Wide Operating Range at Atmospheric Pressure

Abstract:

In this paper, presented are the design and the fabrication of the novel bulk-micromachined gyroscope with its detection and control circuit. The proposed structure is designed to have good properties such as heavy proof mass, a large movement and high moving velocity of the proof mass at an operating frequency. Despite of an appropriate design of the proof mass and comb electrodes, the high-Q property and the capacitance measurement scheme inevitably bring on nonlinear property and limited bandwidth of the system. Moreover, temperature variation degrades the stability of the performance. In this paper, we adopt a feedback control scheme to achieve a linear output and a less sensitive operation to the temperature variation. Through experiments, it is confirmed that the designed gyroscope and the control circuit achieve performances of wide input range of 1,000 deg/sec and bandwidth of 80 Hz.

• Periodical: Key Engineering Materials (Volumes 306-308)
• Pages: 1259-1264
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.306-308.1259
• Online since: March 2006
• Authors: Woon Tahk Sung, Seong Hyok Kim, Jang Gyu Lee, Tae Sam Kang
• Keywords: Bulk Micromachining, Gyroscope, Inertial Sensor, Micro-Electromechanical System (MEMS)

References

[1] J.W. Song, J.G. Lee, T. Kang, W.T. Sung, H.T. Lim, and Y. K Kim: Design of a Gimbal-Structured Micro Gyroscope and Signal Processing Part, Proceedings of ICCAS2001, (2001), pp.1266-1269.

[2] Woon Tahk Sung, Jin Woo Song, Sangkyung Sung, Jang Gyu Lee and Taesam Kang: Feedback loop design for micro gyroscope, Proceedings of ICCAS2002, (2002), pp.234-238.

DOI: 10.1109/iccas.2007.4406550

[3] Hyung-Taek Lim, Jin-Woo Song, Jang-Gyu Lee and Yong-Kweon Kim: A Few deg/hr resolvable low noise lateral microgyroscope: IEEE MEMS Conference, Las Vegas, NV, January 20-24, (2002), pp.627-630.

DOI: 10.1109/memsys.2002.984349

[4] N. Yazdi, F. Ayazi and K. Najafi: Micromachined Inertial Sensors, Proceeding of the IEEE, vol. 86, No. 8, (August 1998), pp.1640-1659.

DOI: 10.1109/5.704269

[5] A. A. Seshia, R. T. Howe, and S. Montague: An integrated microelectromechanical resonant-output gyroscope, 15 th IEEE Micro Electro Mechanical Systems Conference (MEMS 2002), Las Vegas, Nevada, (January 2002).

DOI: 10.1109/memsys.2002.984372

[6] G. He, and K. Najafi: A Single-Crystal Silicon Vibrating Ring Gyroscope, Technical Digest, IEEE 2002 Int. Conference on Micro Electro Mechanical Systems (MEMS 2002), Las Vegas, (January 2002).

DOI: 10.1109/memsys.2002.984371
