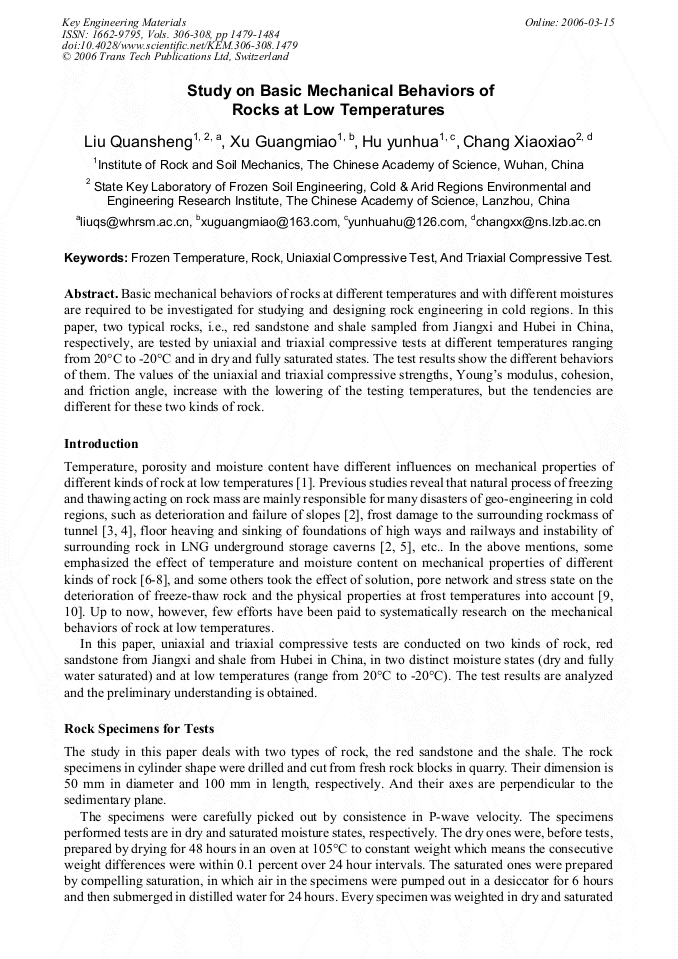

Study on Basic Mechanical Behaviors of Rocks at Low Temperatures

Abstract:

Basic mechanical behaviors of rocks at different temperatures and with different moistures are required to be investigated for studying and designing rock engineering in cold regions. In this paper, two typical rocks, i.e., red sandstone and shale sampled from Jiangxi and Hubei in China, respectively, are tested by uniaxial and triaxial compressive tests at different temperatures ranging from 20°C to -20°C and in dry and fully saturated states. The test results show the different behaviors of them. The values of the uniaxial and triaxial compressive strengths, Young’s modulus, cohesion, and friction angle, increase with the lowering of the testing temperatures, but the tendencies are different for these two kinds of rock.

• Periodical: Key Engineering Materials (Volumes 306-308)
• Pages: 1479-1484
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.306-308.1479
• Online since: March 2006
• Authors: Quan Sheng Liu, Guang Miao Xu, Yun Hua Hu, Xiaoxiao Chang
• Keywords: Frozen Temperature, Rock, Triaxial Compressive Test, Uniaxial Compressive Test

References

[1] N. Matsuoka: Mechanisms of Rock Breakdown by Frost Action: an Experimental Approach. Cold Regions Sci. Tech., Vol. 18 (1990), pp.253-270.

DOI: 10.1016/s0165-232x(05)80005-9

[2] K. M. Neaupane, T. Yamabe and R. Yoshinaka: Simulation of a Fully Coupled Thermo-Hydro-Mechanical System in Freezing and Thawing Rock. Int. J. Rock Mech. Min. Sci., , Vol. 36 (1999), pp.563-580.

DOI: 10.1016/s0148-9062(99)00026-1

[3] Y. M. Lai, H. Wu and Z. W. Wu et al: Analytical Viscoelastic Solution for Frost Force in Cold-region Tunnels. Cold Regions Sci. Tech., Vol. 21(2000), pp.227-234.

DOI: 10.1016/s0165-232x(00)00017-3

[4] Y. M. Lai, S.J. Zhang and L. X. Zhang, et al: Adjusting Temperature Distribution under the South and North Slopes of Embankment in Permafrost Regions by the Ripped-rock Revetment. Cold Regions Sci. Tech., Vol. 39 (2004), pp.67-79.

DOI: 10.1016/j.coldregions.2004.04.003

[5] C. Park, J H Synn and H. S. Shin et al: An Experimental Study on the Thermal Characteristics Rock at Low Temperature. Int. J. Rock Mech. Min. Sci., Vol. 41 (2004), pp.367-368.

DOI: 10.1016/j.ijrmms.2003.12.084

[6] T. Yamabe and K. M. Neaupane: Determination of Some Thermo-Mechanical Properties of Sirahama Sandstone under Subero Temperature Condition. Int. J. Rock Mech. Min. Sci., Vol. 38 (2001), pp.1029-1034.

DOI: 10.1016/s1365-1609(01)00067-3

[7] D. T. Nicholson and F. H Nicholson: Physical Deterioration of Sedimentary Rocks Subjected to Experimental Freeze-thaw Weathering. Earth Surface Processes and Landforms, Vol. 25 (2000), pp.1295-1307.

DOI: 10.1002/1096-9837(200011)25:12<1295::aid-esp138>3.0.co;2-e

[8] T. C. Chen, M. R. Yeung and N. Mori: Effect of Water Saturation on Deterioration of Welded Tuff due to Freeze-Thaw Action. Cold Regions Sci. Tech., Vol. 38 (2004), pp.127-136.

DOI: 10.1016/j.coldregions.2003.10.001

[9] K. Watanabe and M. Mizoguchi: Amount of Unfrozen Water in Frozen Porous Media Saturated with Solution. Cold Regions Sci. Tech., Vol. 34 (2002), pp.103-110.

DOI: 10.1016/s0165-232x(01)00063-5

[10] M. Hroi: Micromechanical Analysis on Deterioration due to Freezing and Thawing in Porous Brittle Materials. Int. J. Eng. Sci., Vol. 36 (1998), pp.511-522.

DOI: 10.1016/s0020-7225(97)00080-3
