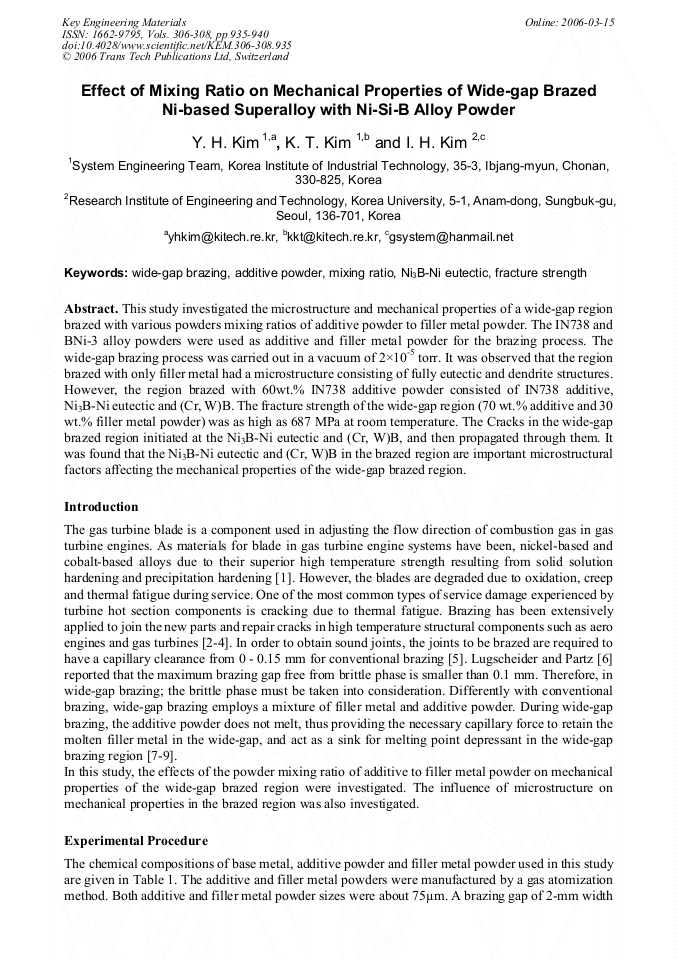

Effect of Mixing Ratio on Mechanical Properties of Wide-Gap Brazed Ni-Based Superalloy with Ni-Si-B Alloy Powder

Abstract:

This study investigated the microstructure and mechanical properties of a wide-gap region brazed with various powders mixing ratios of additive powder to filler metal powder. The IN738 and BNi-3 alloy powders were used as additive and filler metal powder for the brazing process. The wide-gap brazing process was carried out in a vacuum of 2×10-5 torr. It was observed that the region brazed with only filler metal had a microstructure consisting of fully eutectic and dendrite structures. However, the region brazed with 60wt.% IN738 additive powder consisted of IN738 additive, Ni3B-Ni eutectic and (Cr, W)B. The fracture strength of the wide-gap region (70 wt.% additive and 30 wt.% filler metal powder) was as high as 687 MPa at room temperature. The Cracks in the wide-gap brazed region initiated at the Ni3B-Ni eutectic and (Cr, W)B, and then propagated through them. It was found that the Ni3B-Ni eutectic and (Cr, W)B in the brazed region are important microstructural factors affecting the mechanical properties of the wide-gap brazed region.

• Periodical: Key Engineering Materials (Volumes 306-308)
• Pages: 935-940
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.306-308.935
• Online since: March 2006
• Authors: Yong Hwan Kim, Ki Tae Kim, Il Ho Kim
• Keywords: Additive Powder, Fracture Strength, Mixing Ratio, Ni₃B-Ni Eutectic, Wide-Gap Brazing

References

[1] C. T. Sims, N, S. Stoloff and W. C. Hagel: Superalloy II (John Wiely & Sons, Inc., USA 1987).

[2] P. Brauny, M. Hammerschmidt and M. Malik: Mater. Sci. Tech. Vol. 1(1985), p.719.

[3] K. A. Ellison, P. Lowden and J. Liuburdi: J. Eng. Gas Turbines Power Vol. 116(1994), p.237.

[4] S. R. Bell: Mater. Sci. Tech. Vol. 1(1985), p.629.

[5] W. Miglietti: DVS Berichtz. Vol. 212(2001). P. 101.

[6] E. Lugscheider and K. D. Partz: ibid Vol. 62(1983), p163s.

[7] L. C. Lim, W. Y. Lee and M. O. Lai: Mater. Sci. Tech. Vol. 11(1995), P. 955.

[8] Z. Zhang, Z. Zhang, J. Sung and X. Liu: Mat. Trans. Vol. 41(2000), p.1073.

[9] X. Wu, R. S. Chandel, S. H. Pheow and H. Li: J. Mater. Proces. Tech. Vol. 113(2001), p.215.

[10] D. S. Duvall, W. A. Owczarski and D. F. Paulonis: Weld. J. Vol. 53(1974), p.203.

[11] S. K Tung, L. C. Lim and M. O. Lai: Scripta Mater. Vol. 33(1995), p.1253.

[12] B. Jahnke and J. Demmy: Thin Solid Film. Vol. 110(1983), p.225.

[13] R. Tandon and R. M. German: Int. J. Powd. Metall. Vol. 30(1994), p.435.

[14] M. Holmquist, V. Recina and B. Pettersson: Acta Mater. Vol. 47(1999), p.1791.
