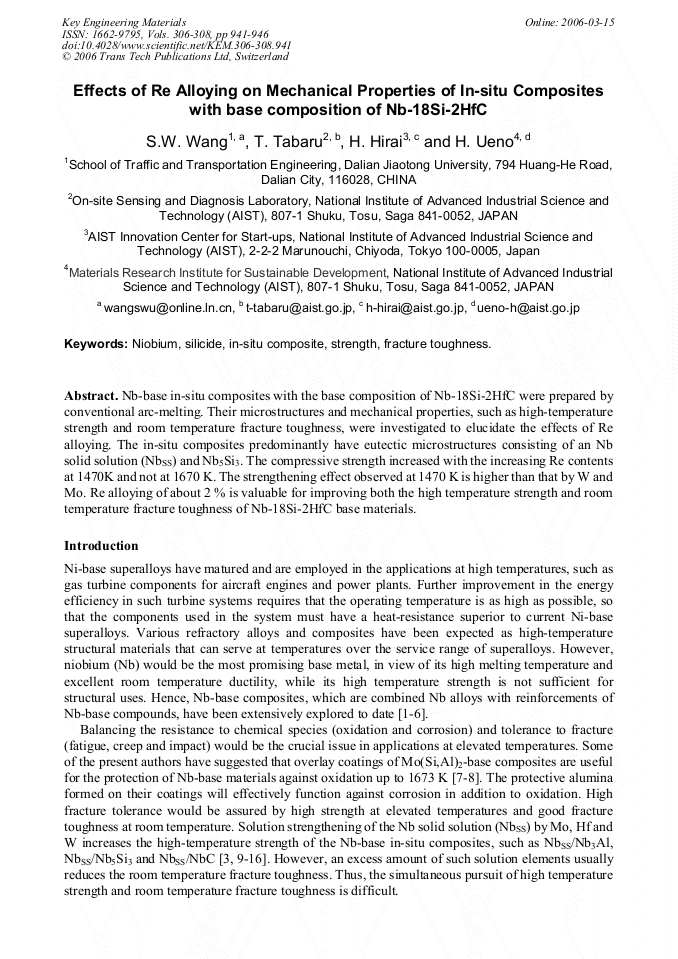

Effects of Re Alloying on Mechanical Properties of In-Situ Composites with Base Composition of Nb-18Si-2HfC

Abstract:

Nb-base in-situ composites with the base composition of Nb-18Si-2HfC were prepared by conventional arc-melting. Their microstructures and mechanical properties, such as high-temperature strength and room temperature fracture toughness, were investigated to elucidate the effects of Re alloying. The in-situ composites predominantly have eutectic microstructures consisting of an Nb solid solution (NbSS) and Nb5Si3. The compressive strength increased with the increasing Re contents at 1470K and not at 1670 K. The strengthening effect observed at 1470 K is higher than that by W and Mo. Re alloying of about 2 % is valuable for improving both the high temperature strength and room temperature fracture toughness of Nb-18Si-2HfC base materials.

• Periodical: Key Engineering Materials (Volumes 306-308)
• Pages: 941-946
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.306-308.941
• Online since: March 2006
• Authors: Sheng Wu Wang, Tatsuo Tabaru, Hisatoshi Hirai, Hideto Ueno
• Keywords: Fracture Toughness, In Situ Composite, Niobium, Silicide, Strength

References

[1] M. R. Jackson, B. P. Bewlay and R. G. Rowe: JOM Vol. 48 (1996), January, p.39.

[2] P.R. Subramanian, M.G. Mendiratta and D. M. Dimiduk: JOM Vol. 48 (1996), January, p.33.

[3] T. Tabaru, S. Hanada, Intermetallics Vol. 6 (1998), p.735.

[4] T. Tabaru, S. Hanada: Intermetallics Vol. 7 (1999), p.807.

[5] J.B. Sha, H. Hirai, T. Tabaru, H. Ueno, A. Kitahara and S. Hanada: J. Jpn. Inst. Met. Vol. 64 (2000), p.31 (in Japanese).

[6] H. Hirai, T. Tabaru, H. Ueno, A. Kitahara and S. Hanada: J. Jpn. Inst. Met. Vol. 64 (2000), p.474 (in Japanese).

[7] T. Tabaru, K. Shobu, J. H. Kim, H. Hirai and S. Hanada: Mater. Sci. Forum Vols. 426-432 (2003), p.2581.

DOI: 10.4028/www.scientific.net/msf.426-432.2581

[8] T. Tabaru, J. H. Kim, K. Shobu, M. Sakamoto, H. Hirai and S. Hanada: Metall. Mater. Trans. A (in press).

[9] R. Gnanamoorthy, S. Hanada and K. Kamata: Scripta Mater. Vol. 34 (1996), p.999.

[10] T. Tabaru and S. Hanada: PRICM3 (TMS, USA 1998), p.537.

[11] Weiss, M. Thirukkonda, R. Srinivasan: Mater. Res. Soc. Symp. Proc. Vol. 322 (MRS, USA 1994), p.377.

[12] B.P. Bewlay, M.R. Jackson and A. Lipsitt: Metal. Trans. A Vol. 27 (1996), p.3801.

[13] P.R. Subramanian, M.G. Mendiratta, D.M. Dimiduk and M.A. Stucke: Mater. Sci. Eng. A 239-240 (1997), p.1.

[14] J.B. Sha, H. Hirai, T. Tabaru, A. Kitahara, H. Ueno and S. Hanada: Metall. Mater. Trans. A 34 (2003), p.85.

[15] J.B. Sha, H. Hirai, T. Tabaru, A. Kitahara, H. Ueno and S. Hanada: Mater. Sci. Eng. A 343 (2003), p.282.

[16] H. Hirai, T. Tabaru, J.B. Sha, H. Ueno, A. Kitahara and S. Hanada: Mater. Res. Soc. Symp. Proc. Vol. 646 (MRS, USA 2001), N5. 41. 1.

[17] S. W. Wang, H. Hirai, T. Tabaru, A. Kitahara and H. Ueno: Key Eng. Mater. Vols. 261-263 (2004), p.1439.

[18] R. T. Begley: Evolution of Refractory Metals and Alloys (TMS, USA 1994), p.29.

[19] J.H. Kin, T. Tabaru, M. Sakamoto and S. Hanada: Mater. Sci. Eng. A 372 (2004), p.137.
