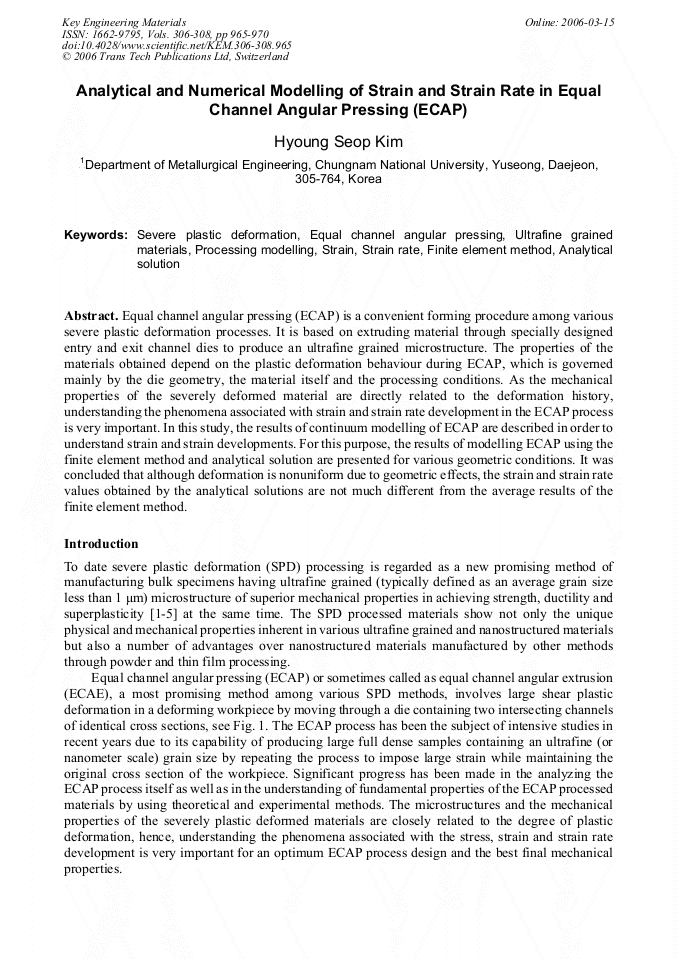

Analytical and Numerical Modelling of Strain and Strain Rate in Equal Channel Angular Pressing (ECAP)

Abstract:

Equal channel angular pressing (ECAP) is a convenient forming procedure among various severe plastic deformation processes. It is based on extruding material through specially designed entry and exit channel dies to produce an ultrafine grained microstructure. The properties of the materials obtained depend on the plastic deformation behaviour during ECAP, which is governed mainly by the die geometry, the material itself and the processing conditions. As the mechanical properties of the severely deformed material are directly related to the deformation history, understanding the phenomena associated with strain and strain rate development in the ECAP process is very important. In this study, the results of continuum modelling of ECAP are described in order to understand strain and strain developments. For this purpose, the results of modelling ECAP using the finite element method and analytical solution are presented for various geometric conditions. It was concluded that although deformation is nonuniform due to geometric effects, the strain and strain rate values obtained by the analytical solutions are not much different from the average results of the finite element method.

• Periodical: Key Engineering Materials (Volumes 306-308)
• Pages: 965-970
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.306-308.965
• Online since: March 2006
• Authors: Hyoung Seop Kim
• Keywords: Analytical Solution, Equal-Channel Angular Pressing (ECAP), Finite Element Model (FEM), Processing Modelling, Severe Plastic Deformation (SPD), Strain, Strain Rate, Ultrafine Grained Material

References

[1] R. Z. Valiev, R. K. Islamgaliev and I. V. Alexandrov, Prog. Mater. Sci. 45 (2000) 103.

[2] I. V. Alexandrov, A. A. Dubravina, A. R. Kilmametov, V. U. Kazykhanov and R. Z. Valiev, Met. Mater. Inter. 9 (2003) 151.

DOI: 10.1007/bf03027271

[3] M. Furukawa, Z. Horita and T. G. Langdon, Met. Mater. Inter. 9 (2003) 141.

[4] D. H. Shin, J. Kim and K-T. Park, Met. Mater. Inter. 7 (2001) 431.

[5] R. Z. Valiev, Met. Mater. Inter. 7 (2001) 413.

[6] V. M. Segal, Mater. Sci. Eng. A197 (1995) 157.

[7] Y. Iwahashi, J. Wang, Z. Horita, M. Nemoto and T. G. Langdon, Scripta Mater. 35 (1996) 143.

[8] H. J. Cui, R. E. Goforth and K. T. Hartwig, JOM-e 50 (1998).

[9] D. N. Lee, Scripta Mater. 43 (2000) 115.

[10] S. L. Semiatin, D. P. Delo and E. B. Shell, Acta Mater. 48 (2000) 1841.

[11] H. S. Kim, S. I. Hong and M. H. Seo, J. Mater. Res. 16 (2001) 856.

[12] H. S. Kim, M. H. Seo and S. I. Hong, Mater. Sci. Eng. 291A (2001) 86.

[13] H. S. Kim, J. Mater. Res. 17 (2002) 172.

[14] S. C. Baik, Y. Estrin, H. S. Kim, R. Hellmig, Mater. Sci. Eng. 351A (2003) 86.

[15] J. C. Werenskiold and H. J. Roven, in Nanomaterials by Severe Plastic Deformation, M. J. Zehetbauer and R. Z. Valiev eds. Wiley-VCH, Weinheim (2003) pp.591-596.

[16] Hibbitt, Karlsson & Sorensen Inc., ABAQUS 5. 8.
