The Preparation and Properties of Layered TCP/Y–TZP Composites with Ribbon-Like Microstructures

Tomaž Kosmač; Aleš Dakskobler

doi:10.4028/www.scientific.net/KEM.309-311.1145

Paper Titles

Syntheses of Silicon-Containing Apatite Fibres by a Homogeneous Precipitation Method and Their Characterization
p.1129

A Histological Evaluation of Novel Cyanoacrylate-Based β-TCP Composite in Rat Calvarial Defects
p.1133

Sintering Effect on Mechanical Properties of Composites of Enamel Derived Hydroxyapatite (EHA) and Titanium
p.1137

Densification of Zirconia–Hydroxyapatite Ceramics Without Phase Changes
p.1141

The Preparation and Properties of Layered TCP/Y–TZP Composites with Ribbon-Like Microstructures
p.1145

Wollastonite-Poly(Ethylmethacrylate-Co-Vinylpyrrolydone) Nanostructured Materials: Mechanical Properties and Biocompatibility
p.1149

Bioactive Organic-Inorganic Hybrids Prepared from Poly(Vinyl Alcohol) via Modification with Metal Oxides and Calcium Salt
p.1153

Bioactive Calcium Phosphate Material for Dental Endodontic Treatment. Root Apical Deposition.
p.1157

Biocompatibility of CaSiO₃ /High-Density Polyethylene Composites Prepared by Hot-Pressing
p.1161

HomeKey Engineering MaterialsKey Engineering Materials Vols. 309-311The Preparation and Properties of Layered...

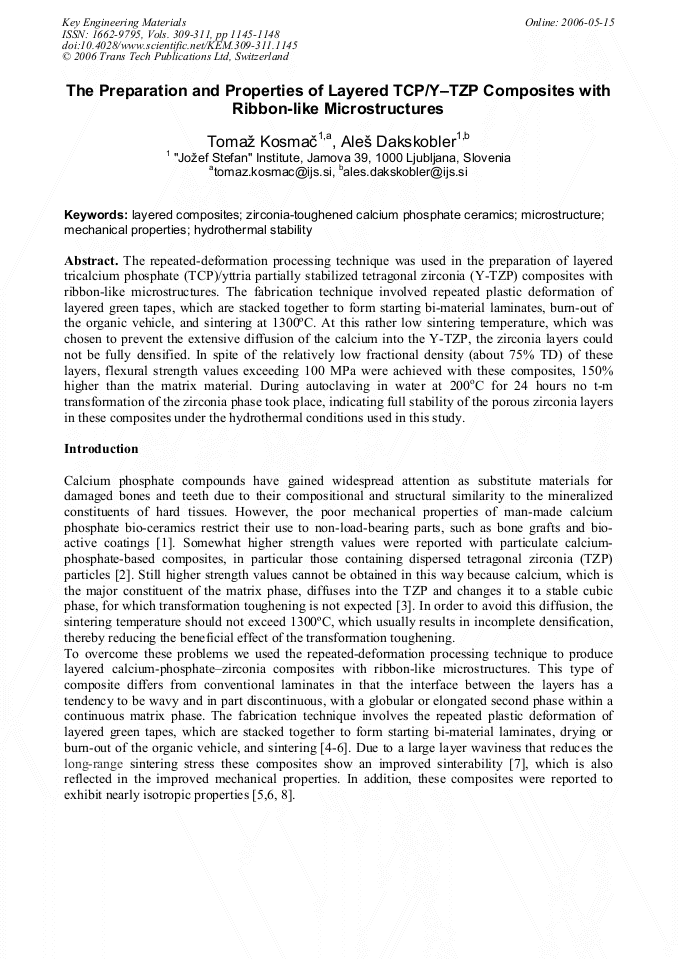

The Preparation and Properties of Layered TCP/Y–TZP Composites with Ribbon-Like Microstructures

Abstract:

The repeated-deformation processing technique was used in the preparation of layered tricalcium phosphate (TCP)/yttria partially stabilized tetragonal zirconia (Y-TZP) composites with ribbon-like microstructures. The fabrication technique involved repeated plastic deformation of layered green tapes, which are stacked together to form starting bi-material laminates, burn-out of the organic vehicle, and sintering at 1300°C. At this rather low sintering temperature, which was chosen to prevent the extensive diffusion of the calcium into the Y-TZP, the zirconia layers could not be fully densified. In spite of the relatively low fractional density (about 75% TD) of these layers, flexural strength values exceeding 100 MPa were achieved with these composites, 150% higher than the matrix material. During autoclaving in water at 200oC for 24 hours no t-m transformation of the zirconia phase took place, indicating full stability of the porous zirconia layers in these composites under the hydrothermal conditions used in this study.
