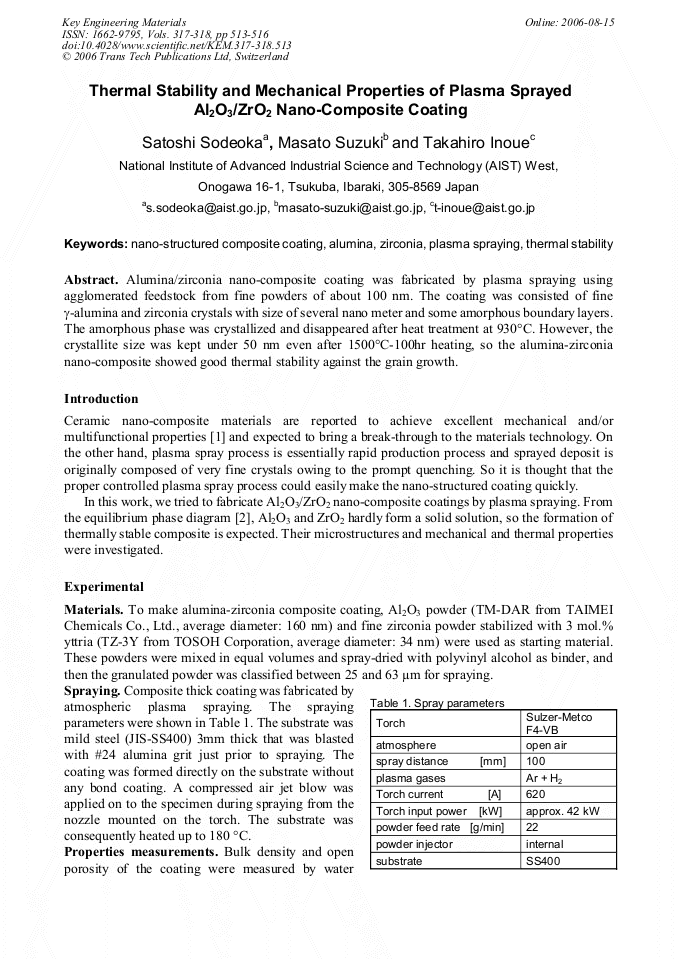

Thermal Stability and Mechanical Properties of Plasma Sprayed Al2O3/ZrO2 Nano-Composite Coating
Alumina/zirconia nano-composite coating was fabricated by plasma spraying using agglomerated feedstock from fine powders of about 100 nm. The coating was consisted of fine γ-alumina and zirconia crystals with size of several nano meter and some amorphous boundary layers. The amorphous phase was crystallized and disappeared after heat treatment at 930°C. However, the crystallite size was kept under 50 nm even after 1500°C-100hr heating, so the alumina-zirconia nano-composite showed good thermal stability against the grain growth.
T. Ohji, T. Sekino and K. Niihara
S. Sodeoka, M. Suzuki, T. Inoue, "Thermal Stability and Mechanical Properties of Plasma Sprayed Al2O3/ZrO2 Nano-Composite Coating", Key Engineering Materials, Vols. 317-318, pp. 513-516, 2006
