The Evolution of Contact Stress and Surface Profile in Press-Fitted Shaft under Partial Slip Conditions

Abstract:

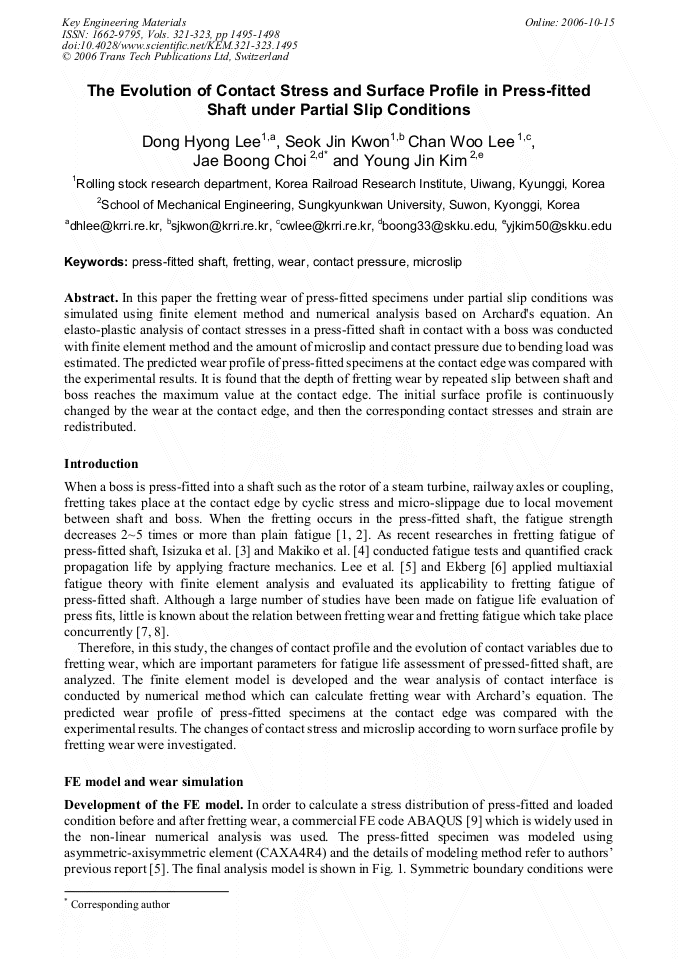

Article Preview

In this paper the fretting wear of press-fitted specimens under partial slip conditions was simulated using finite element method and numerical analysis based on Archard's equation. An elasto-plastic analysis of contact stresses in a press-fitted shaft in contact with a boss was conducted with finite element method and the amount of microslip and contact pressure due to bending load was estimated. The predicted wear profile of press-fitted specimens at the contact edge was compared with the experimental results. It is found that the depth of fretting wear by repeated slip between shaft and boss reaches the maximum value at the contact edge. The initial surface profile is continuously changed by the wear at the contact edge, and then the corresponding contact stresses and strain are redistributed.

Info:

Periodical:

Key Engineering Materials (Volumes 321-323)

Edited by:

Seung-Seok Lee, Joon Hyun Lee, Ik Keun Park, Sung-Jin Song, Man Yong Choi

Pages:

1495-1498

DOI:

10.4028/www.scientific.net/KEM.321-323.1495

Citation:

D. H. Lee et al., "The Evolution of Contact Stress and Surface Profile in Press-Fitted Shaft under Partial Slip Conditions", Key Engineering Materials, Vols. 321-323, pp. 1495-1498, 2006

Online since:

October 2006

Export:

Price:

$35.00

[1] R. B. Waterhouse : Int. Mater. Rev., Vol. 37 (1992), p.77.

[2] R. A. Smith and S. Hillmansen, : Proc. Inst. Mech. Engrs., Vol. 218 (2004) Part F : J. Rail and Rapid Transit, p.267.

[3] H. Ishizuka, M. Akama, T. Hanaoka, Y. Satoh, H. Motomatsu, and K. Tezuka : RTRI Report, Vol. 9 (1995), No. 6, p.25 (In Japanese).

[4] T. Makino and M. Yamamoto, and Hirakawa, K.: ASTM STP 1367 (2000), p.509.

[5] D. H. Lee, B. C. Goo, C. W. Lee, J. B. Choi, and Y. J. Kim : Key engineering materials, Vol. 297-300 (2005), p.108.

[6] A. Ekberg : Proc. Inst. Mech. Engrs., Vol. 218 (2004) Part F : J. Rail and Rapid Transit, p.299.

[7] T. Makino and M. Y. a. K. Hirakawa : Trans. Jpn. Soc. Mech. Eng. (A), Vol. 63, No. 615 (1997), p.2312 (In Japanese).

[8] M. Kubota, S. Niho, C. Sakae, and Y. Kondo : JSME International Journal Series A, Vol. 46, No. 3 (2003), p.297.

[9] ABAQUS user's and theory manual, Version 6. 4 (Hibbit, Karlson & Sorensen, Inc., 2004).

[10] I. F. Stowers and E. Rabinowicz : J. Lubrication Technol., Vol. 90 (1973), p.65.

[11] I. R. McColl, J. Ding, and S. B. Leen : Wear, Vol. 256 (2004), p.1114.

[12] K. Hirakawa, K. Toyama, and M. Kubota : Int. J. Fatigue, Vol. 20, No. 2. (1998), p.135.

[13] P. N. Clark and D. W. Hoeppner : ASTM STP 1425 (2003), p.44.
