Microstructure and Damage Evolution of Ceramic Matrix Composite

Abstract:

Article Preview

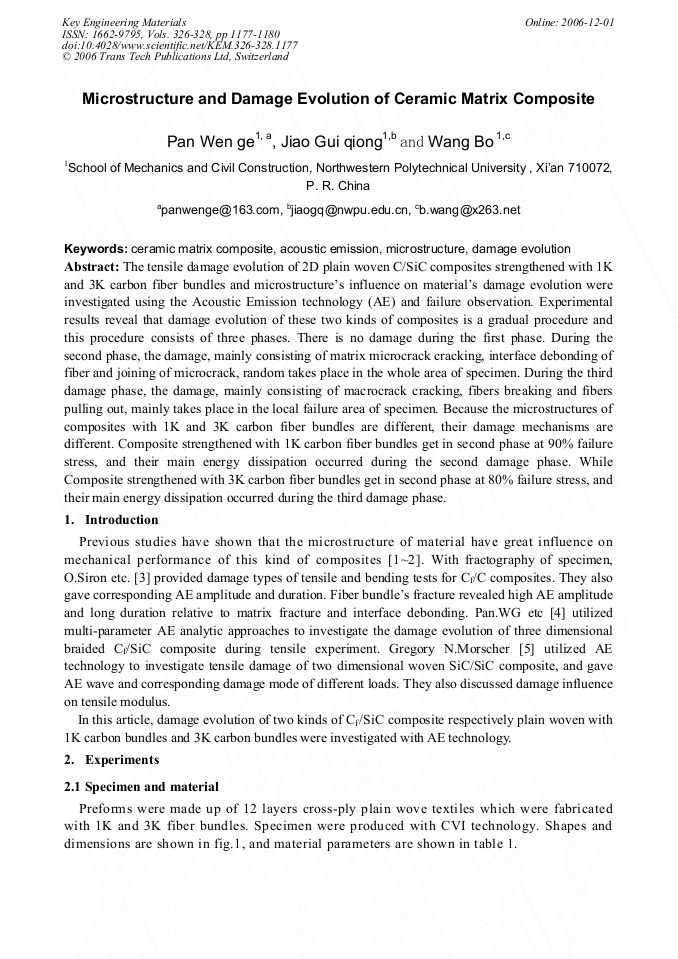

The tensile damage evolution of 2D plain woven C/SiC composites strengthened with 1K and 3K carbon fiber bundles and microstructure’s influence on material’s damage evolution were investigated using the Acoustic Emission technology (AE) and failure observation. Experimental results reveal that damage evolution of these two kinds of composites is a gradual procedure and this procedure consists of three phases. There is no damage during the first phase. During the second phase, the damage, mainly consisting of matrix microcrack cracking, interface debonding of fiber and joining of microcrack, random takes place in the whole area of specimen. During the third damage phase, the damage, mainly consisting of macrocrack cracking, fibers breaking and fibers pulling out, mainly takes place in the local failure area of specimen. Because the microstructures of composites with 1K and 3K carbon fiber bundles are different, their damage mechanisms are different. Composite strengthened with 1K carbon fiber bundles get in second phase at 90% failure stress, and their main energy dissipation occurred during the second damage phase. While Composite strengthened with 3K carbon fiber bundles get in second phase at 80% failure stress, and their main energy dissipation occurred during the third damage phase.

Info:

Periodical:

Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim

Pages:

1177-1180

DOI:

10.4028/www.scientific.net/KEM.326-328.1177

Citation:

W. G. Pan et al., "Microstructure and Damage Evolution of Ceramic Matrix Composite", Key Engineering Materials, Vols. 326-328, pp. 1177-1180, 2006

Online since:

December 2006

Export:

Price:

$35.00

[1] Y. M. Liu� T. E. Mictchell�H. N. G. Wadley. Anisotropic damage evolution in a 0˚/90˚ laminated ceramic-matrix composite[J]. Acta mater�2000�48�4841-4849.

DOI: 10.1016/s1359-6454(00)00286-x

[2] G. Boitier� S. Darzens� J. L. Chermant� et al. Microstructural investigation of interfaces in CMCs[J]. Composites Part A�2002�33: 1467-1470.

DOI: 10.1016/s1359-835x(02)00147-1

[3] O. Siron, G. Chollon, H. Tsuda� et al. Microstructural and mechanical properties of filler-added coal-tar pitch-based C/C composites: the damage and fracture process in correlation with AE waveform parameters[J]. Carbon�2000�38�1369-1389.

DOI: 10.1016/s0008-6223(99)00270-5

[4] Pan Wenge, Jiao Guiqiong, Wang Bo, et al. Characterizing damage evolution of three-dimensional braided C/SiC composite with AE technology[J]. Journal of Inorganic Materials�2004�19�4��871-875.

[5] Gregory N. Morscher. Modal acoustic emission of damage accumulation in a woven SiC/SiC composite[J]. Composites Science and Technology, 1999, 59�687-697.

DOI: 10.1016/s0266-3538(98)00121-3

In order to see related information, you need to Login.
