A New Complex Grinding Method for Ceramic Materials Combined with Ultrasonic Vibration and Electrodischarge Machining

Abstract:

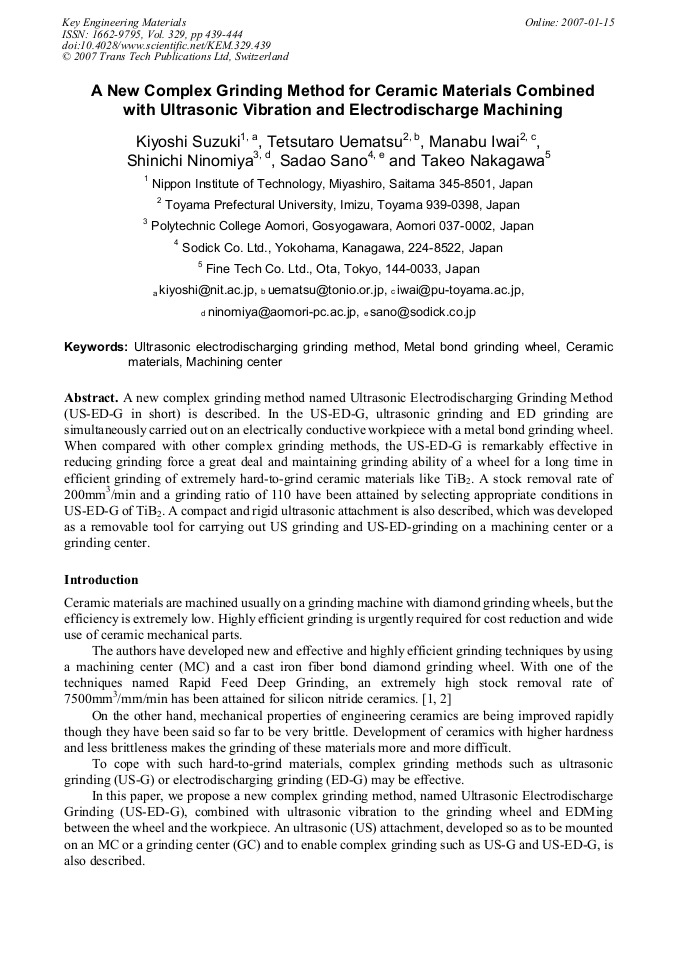

Article Preview

A new complex grinding method named Ultrasonic Electrodischarging Grinding Method (US-ED-G in short) is described. In the US-ED-G, ultrasonic grinding and ED grinding are simultaneously carried out on an electrically conductive workpiece with a metal bond grinding wheel. When compared with other complex grinding methods, the US-ED-G is remarkably effective in reducing grinding force a great deal and maintaining grinding ability of a wheel for a long time in efficient grinding of extremely hard-to-grind ceramic materials like TiB2. A stock removal rate of 200mm3/min and a grinding ratio of 110 have been attained by selecting appropriate conditions in US-ED-G of TiB2. A compact and rigid ultrasonic attachment is also described, which was developed as a removable tool for carrying out US grinding and US-ED-grinding on a machining center or a grinding center.

Info:

Periodical:

Edited by:

Dongming Guo, Tsunemoto Kuriyagawa, Jun Wang and Jun’ichi Tamaki

Pages:

439-444

DOI:

10.4028/www.scientific.net/KEM.329.439

Citation:

K. Suzuki et al., "A New Complex Grinding Method for Ceramic Materials Combined with Ultrasonic Vibration and Electrodischarge Machining", Key Engineering Materials, Vol. 329, pp. 439-444, 2007

Online since:

January 2007

Export:

Price:

$38.00

[1] T. Nakagawa, K. Suzuki, T. Uematsu: Three dimensional creep feed grinding of ceramics by machining center, Proc. of Winter Annual Meeting of ASME, vo1. 17, (1985), pp.1-8.

[2] T. Nakagawa, K. Suzuki, T. Uematsu: Highly efficient grinding of ceramics and hard metal on grinding center, Annals of the CIRP vo1. 35/1, (1986), PP. 205-210.

DOI: 10.1016/s0007-8506(07)61871-x

[3] K. Suzuki, T. Uematsu, T. Nakagawa: On-machine trueing/ dressing of metal bond grinding wheels by electro-discharge machining, Annals of the CIRP vo1. 36/1, (1987).

DOI: 10.1016/s0007-8506(07)62566-9
