Preparation and Photocatalytic Properties of Nanosized La3+ and Co2+ Co-Doped TiO2 by Microemulsions

Abstract:

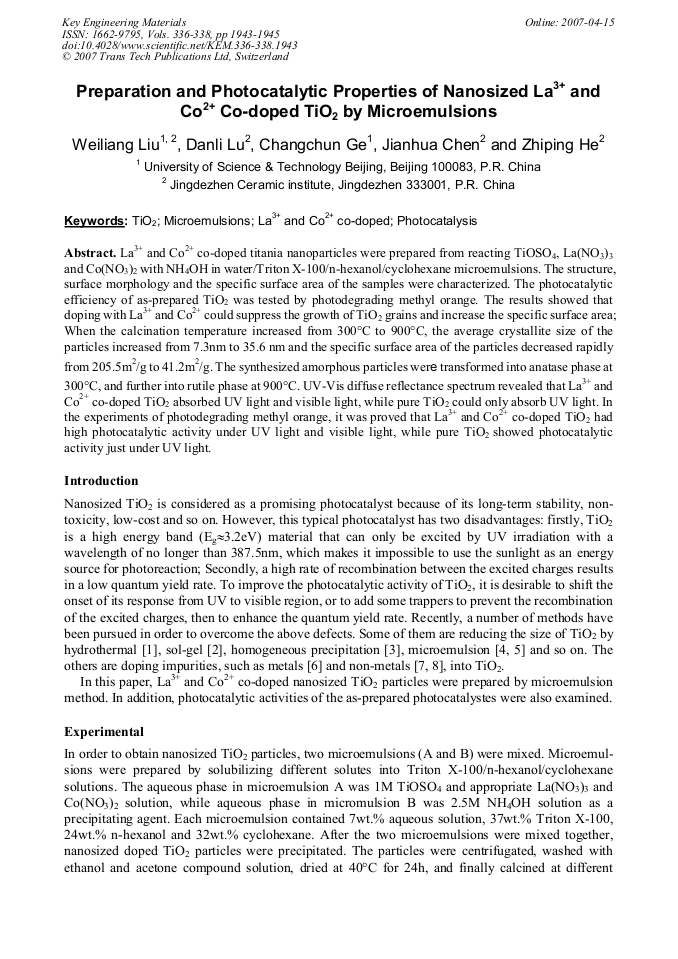

Article Preview

La3+ and Co2+ co-doped titania nanoparticles were prepared from reacting TiOSO4, La(NO3)3 and Co(NO3)2 with NH4OH in water/Triton X-100/n-hexanol/cyclohexane microemulsions. The structure, surface morphology and the specific surface area of the samples were characterized. The photocatalytic efficiency of as-prepared TiO2 was tested by photodegrading methyl orange. The results showed that doping with La3+ and Co2+ could suppress the growth of TiO2 grains and increase the specific surface area; When the calcination temperature increased from 300°C to 900°C, the average crystallite size of the particles increased from 7.3nm to 35.6 nm andthe specific surface area of the particles decreased rapidly from 205.5m2/g to 41.2m2/g. The synthesized amorphous particles wer transformed into anatase phase at 300°C, and further into rutile phase at 900°C. UV-Vis diffuse reflectance spectrum revealed that La3+ and Co2+ co-doped TiO2 absorbed UV light and visible light, while pure TiO2 could only absorb UV light. In the experiments of photodegrading methyl orange, it was proved that La3+ and Co2+ co-doped TiO2 had high photocatalytic activity under UV light and visible light, while pure TiO2 showed photocatalytic activity just under UV light.

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong

Pages:

1943-1945

DOI:

10.4028/www.scientific.net/KEM.336-338.1943

Citation:

W. L. Liu et al., "Preparation and Photocatalytic Properties of Nanosized La3+ and Co2+ Co-Doped TiO2 by Microemulsions", Key Engineering Materials, Vols. 336-338, pp. 1943-1945, 2007

Online since:

April 2007

Export:

Price:

$35.00

[1] J. Zhu, W. Zheng, B. He, et al.: J. Molecular Catal. A Vol. 216 (2004), p.35.

[2] R. Zhang and L. Gao: Mater. Res. Bull. Vol. 36 (2001), pp. (1957).

[3] C. Pakokthom, G. Rujijanagul and T. Tunkasiri: J. Mater. Sci. Lett. Vol. 18 (1999), p.747.

[4] E.J. Kim and S.H. Hahn: Mater. Sci. Eng. A Vol. 303 (2001), p.24.

[5] S.S. Park and K.T. Lim: Catalysis Today Vol. 93-95 (2004), p.871.

[6] J. Kim, K.C. Song, S. Foncillas and S.E. Pratsinis: J. Europ. Ceram. Soc. Vol. 21 (2001), p.2863.

[7] D. Li, H. Haneda, S. Hishita and N. Ohashi: Mater. Sci. Eng. B Vol. 117 (2005), p.67.

[8] S. Mozia, M. Tomaszewska, B. Kosowska, et al.: Appl. Catal. B Vol. 55 (2005), p.195.

[9] E.J. Kim and S.H. Hahn: Mater. Lett. Vol. 49 (2001), p.244.

[10] S. Yin, H. Yamaki, Q. Zhang, et al.: Solid State Ionics Vol. 172 (2004), p.205.

[11] C.H. Chang, R. Gopalan and Y.S. Lin: Membr. Sci. Vol. 91 (1994), p.27.

[12] J. Yang and J.M.F. Ferreira: Mater. Res. Bull. Vol. 33 (1998), p.389.

[13] R. Ashi, T. Morikawa, T. Ohwaki, K. Aoki and Y Taga: Science Vol. 293 (2001).

In order to see related information, you need to Login.
