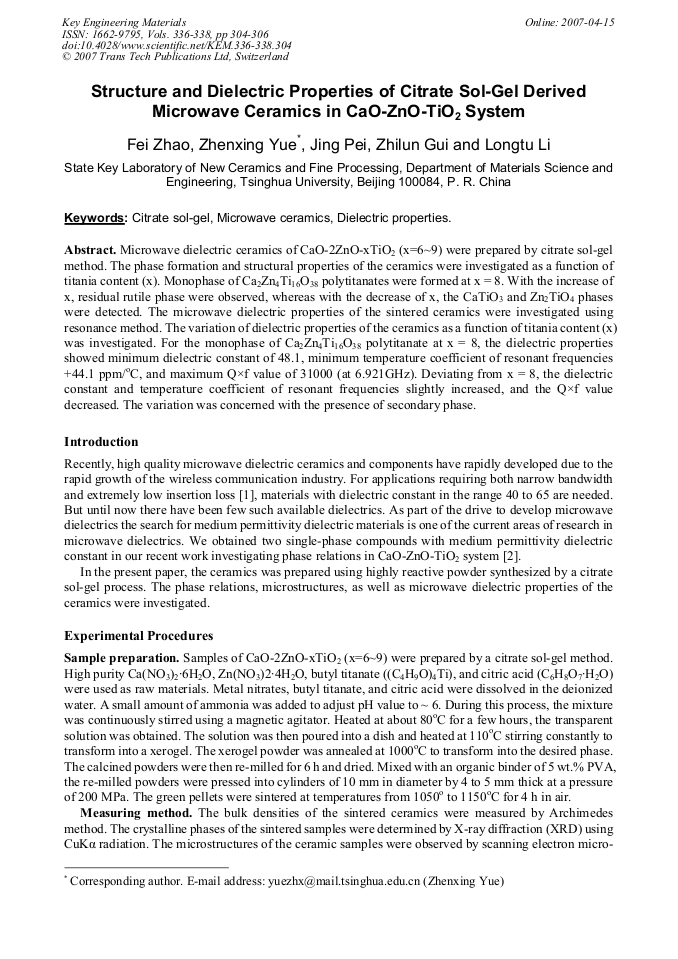

Structure and Dielectric Properties of Citrate Sol-Gel Derived Microwave Ceramics in CaO-ZnO-TiO₂ System

Abstract:

Microwave dielectric ceramics of CaO-2ZnO-xTiO2 (x=6~9) were prepared by citrate sol-gel method. The phase formation and structural properties of the ceramics were investigated as a function of titania content (x). Monophase of Ca2Zn4Ti16O38 polytitanates were formed at x = 8. With the increase of x, residual rutile phase were observed, whereas with the decrease of x, the CaTiO3 and Zn2TiO4 phases were detected. The microwave dielectric properties of the sintered ceramics were investigated using resonance method. The variation of dielectric properties of the ceramics as a function of titania content (x) was investigated. For the monophase of Ca2Zn4Ti16O38 polytitanate at x = 8, the dielectric properties showed minimum dielectric constant of 48.1, minimum temperature coefficient of resonant frequencies +44.1 ppm/oC, and maximum Q×f value of 31000 (at 6.921GHz). Deviating from x = 8, the dielectric constant and temperature coefficient of resonant frequencies slightly increased, and the Q×f value decreased. The variation was concerned with the presence of secondary phase.

• Periodical: Key Engineering Materials (Volumes 336-338)
• Pages: 304-306
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.336-338.304
• Online since: April 2007
• Authors: Fei Zhao, Zhen Xing Yue, Jing Pei, Zhi Lun Gui, Long Tu Li
• Keywords: Citrate Sol-Gel, Dielectric Property, Microwave Ceramic

References

[1] W. Wersing: Curr. Opin. Solid State Mat. Sci. Vol 1(1996), p.715.

[2] F. Zhao, Z.X. Yue, Z.L. Gui and L.T. Li: in The 4 th Asian Meeting on Electroceramcs. (2005).

[3] B.W. Hakki and P.D. Coleman: IRE Trans. Microwave Theory Technol. Vol. 8 (1960), p.402.

[4] W.E. Courtney: IEEE Trans. Microwave Theory Tech. Vol 18 (1970), p.476.

[6] 7 8 9.

[47] [48] [49] [50] [51] 20000 25000 30000.

[40] [50] [60] [70] TiO2 content (x) τf � ppm/o C� Secondary phases: TiO2 Dielectric Constant Qxf (GHz) Ca2Zn4Ti16O38 Secondary phases: Zn2TiO4+CaTiO3 Ca2Zn4Ti15O36 Fig. 4 The variations of dielectric constant, Q×f value and τf value with x for CaO-2ZnO-xTiO2 ceramics.
