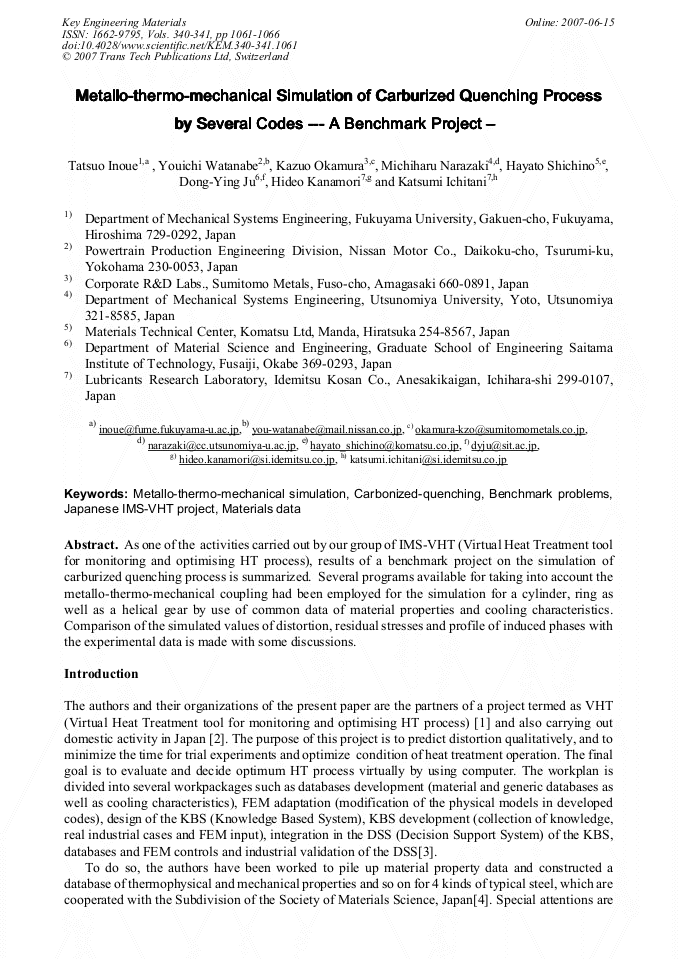

Metallo-Thermo-Mechanical Simulation of Carburized Quenching Process by Several Codes - A Benchmark Project -

Abstract:

As one of the activities carried out by our group of IMS-VHT (Virtual Heat Treatment tool for monitoring and optimising HT process), results of a benchmark project on the simulation of carburized quenching process is summarized. Several programs available for taking into account the metallo-thermo-mechanical coupling had been employed for the simulation for a cylinder, ring as well as a helical gear by use of common data of material properties and cooling characteristics. Comparison of the simulated values of distortion, residual stresses and profile of induced phases with the experimental data is made with some discussions.

• Periodical: Key Engineering Materials (Volumes 340-341)
• Pages: 1061-1066
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.340-341.1061
• Online since: June 2007
• Authors: Tatsuo Inoue, Youichi Watanabe, Kazuo Okamura, Michiharu Narazaki, Hayato Shichino, Dong Ying Ju, Hideo Kanamori, Katsumi Ichitani
• Keywords: Benchmark Problems, Carbonized-Quenching, Japanese IMS-VHT Project, Materials Data, Metallo-Thermo-Mechanical Simulation

References

[1] IMS International web site; http: /www. ims. org.

[2] IMS Japan web site; http: /www. ims. mstc. or. jp/english/index3. html.

[3] Y. Watanabe, D.Y. Ju, H. Shichino, K. Okamura, M. Narazaki, H. Kanamori, K. Ichitani and T. Inoue; Proc. 3rd Asian Conf. Heat Treatment of Materials, Gyeongju (2005), p.370.

[4] T. Inoue and K. Okamura; Proc. 5 th Int. Symp. Quenching and Distortion Control, ASM, St Louis, 2000, p.753.

[5] M. Narazaki: Reports in Joint Meeting of JSMS and JSHT on Benchmark Project on Quenching Simulation (in Japanese), 2004, p.9.

[6] T. Inoue, Y. Watanabe, K. Okamura, M. Narazaki, H. Shichino, D.Y. Ju, H. Kanamori and K. Ichitani, K.: Trans. Materials and Heat Treatment, Vol. 25-5 (2004), p.28.

[7] T. Inoue, Y. Watanabe, K. Okamura, M. Narazaki, H. Shichino, D.Y. Ju, H. Kanamori and K. Ichitani: Proc. 1st Int. Conf. Distortion Engineering, Bremen (2005), p.133.

[8] Preprint, Joint Meeting of JSMS and JSHT on Benchmark Project on Quenching Simulation (in Japanese), (2004).

[9] T. Inoue, K. Arimoto and D.Y. Ju: Proc. Int. Conf. Quenching and Control of Distortion, ASM International, (1992) p.205.

[10] T. Inoue and K. Arimoto: J. Mat. Eng. Perform., ASM International, 6-1 (1997), p.51.

[11] Y. Nagasaka: Metal. Trans., A, 24A (1993) p.795.

[12] K. Okamura and H. Kawashima: Proc. 32nd Japan Cong. Mat. Res., (1989), p.323.

[13] H. Porzner: Pam User Conference in Asia, PUCA MM, 2 (2000), p.5790.

[14] K. Arimoto, D. Lambert, G. Li, A. Arvind and W.T. Wu: Proc. 18th ASM Heat Treatment Society Conference and Exposition, (1998), p.23.

[15] D.Y. Ju, Y. Ito and T. Inoue: Proc. of 4 th International Conference on Quenching and Control of Distortion, (2003), p.291.

[16] T. Inoue, S. Nagaki, T. Kishino and M. Monkawa: Ingenieur-Archiv, Vol. 50-5 (1981), p.315.
