Crash Behaviour of Various Modern Steels Exposed to High Deformation Rates

Abstract:

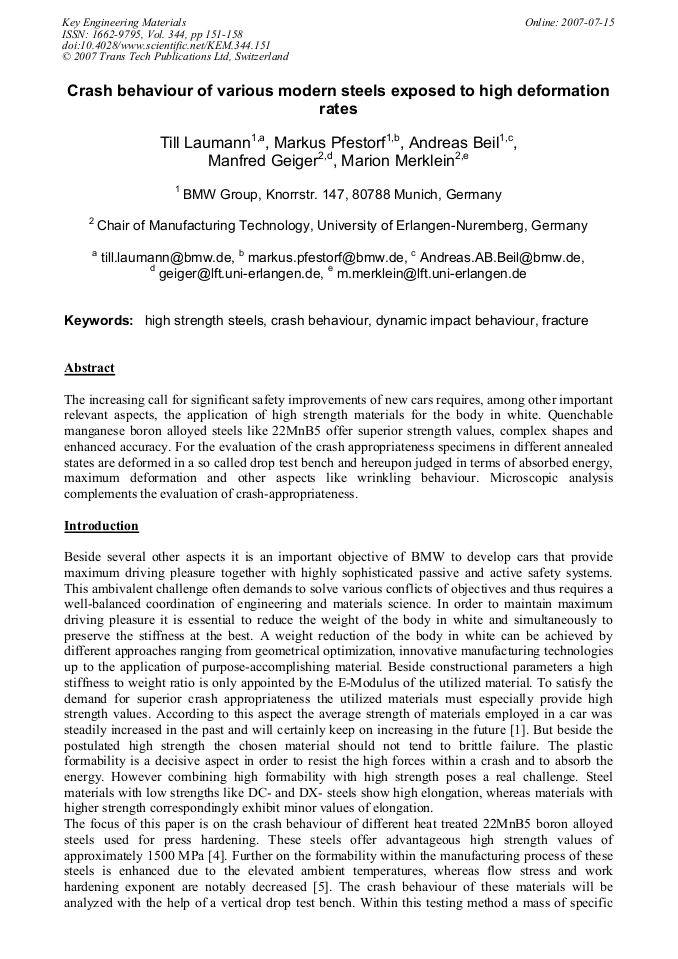

Article Preview

The increasing call for significant safety improvements of new cars requires, among other important relevant aspects, the application of high strength materials for the body in white. Quenchable manganese boron alloyed steels like 22MnB5 offer superior strength values, complex shapes and enhanced accuracy. For the evaluation of the crash appropriateness specimens in different annealed states are deformed in a so called drop test bench and hereupon judged in terms of absorbed energy, maximum deformation and other aspects like wrinkling behaviour. Microscopic analysis complements the evaluation of crash-appropriateness.

Info:

Periodical:

Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini

Pages:

151-158

Citation:

T. Laumann et al., "Crash Behaviour of Various Modern Steels Exposed to High Deformation Rates", Key Engineering Materials, Vol. 344, pp. 151-158, 2007

Online since:

July 2007

Export:

Price:

$38.00

[1] M. Pfestorf, Manufacturing of High Strength Steel and Aluminium for a mixed material body in white: Tagungsband SheMet'05, Erlangen, Germany, 109-124.

[2] J. H. Hollomon, L. D. Jaffe, Time-Temperature Relationships in Tempering Steel: Transactions of the American Institute of Mining and Metallurgical Engineers 162 (1945), 233-249.

[3] H. -J. Bargel, G. Schulze, Werkstoffkunde, VDI Verlag, Düsseldorf, (1983).

[4] http: /www. tailored-blanks. com/de/news/ [12. 09. 2006].

[5] M. Merklein, J. Lechler, Investigation of the thermo-mechanical properties of hot stamping steels: Journal of Materials Processing Technology 177 (2006), 452-455.

DOI: https://doi.org/10.1016/j.jmatprotec.2006.03.233

[6] M. A. McCarthy and J. F. M. Wiggenraad, Numerical investigation of a crash test of a composite helicopter subfloor structure: Composite Structures 51 (2001), 345-359.

DOI: https://doi.org/10.1016/s0263-8223(00)00150-1

[7] M. Mahé, H. Ribet and F. Le Page, Composite fuselage crash FE modelling dedicated to enhance the design in correlation with full scale drop test: Mécanique & Industries, Vol. 2 (2001), 5-17.

DOI: https://doi.org/10.1016/s1296-2139(00)01081-2

[8] Hoesch Hohenlimburg, Warmgewalzte, borlegierte Stähle - Die starke Alternative mit wirtschaftlichem Fokus, company brochure, (2006).

[9] L. Engel, H. Klingele, Rasterelektronenmikroskopische Untersuchungen von Metallschäden, Hanser Verlag, München, 1982. Type of fabrication Fmax [kN] Faver [kN] deformation length [mm] Ezug [kNm] Type 1A (hard) direct stamp hardening 162. 7 ± 11. 1 90. 9 ± 4. 5 196. 6 ± 10. 9 16. 9 ± 0. 5 Type 1A (hard) + CDP direct stamp hardening 152. 0 ± 8. 6 86. 0 ± 5. 1 211. 8 ± 8. 7 15. 8 ± 0. 4 Type 1B (annealed) direct stamp hardening 143. 3 ± 7. 9 83. 9 ± 3. 5 214. 3 ± 6. 2 15. 3 ± 0. 5 Type 1B (annealed) + CDP direct stamp hardening 147. 6 ± 2. 4 84. 4 ± 3. 5 211. 9 ± 9. 2 15. 4 ± 0. 4 Type 2 (hard) indirect stamp hardening 158. 4 ± 13. 1 89. 0 ± 22. 2 210. 1 ± 35. 1 15. 6 ± 2. 9.

DOI: https://doi.org/10.1016/0036-9748(81)90294-5
