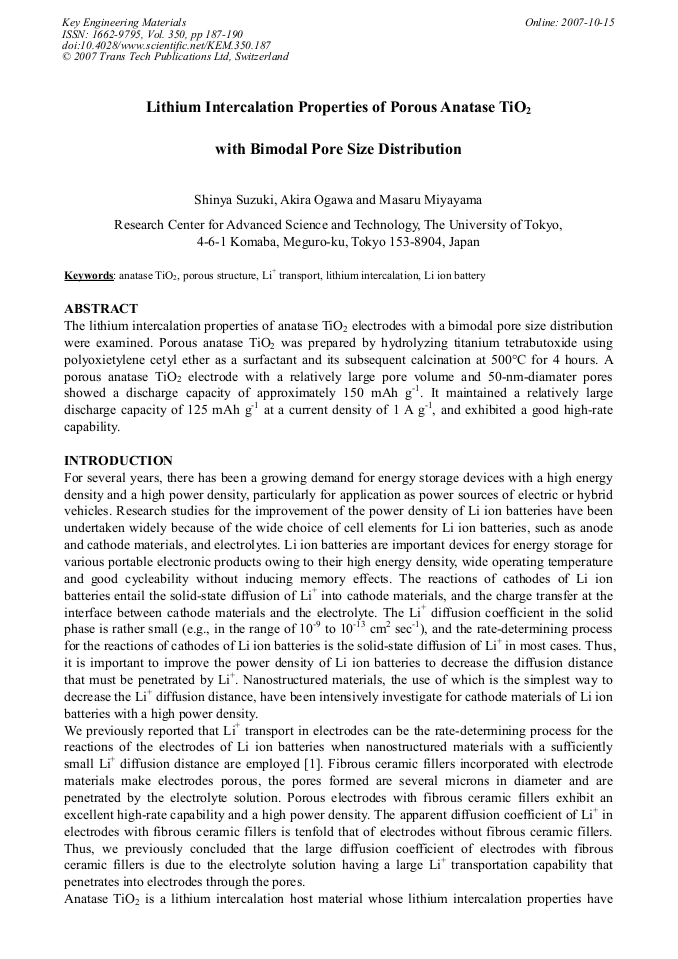

Lithium Intercalation Properties of Porous Anatase TiO2 with Bimodal Pore Size Distribution

Abstract:

Article Preview

The lithium intercalation properties of anatase TiO2 electrodes with a bimodal pore size distribution were examined. Porous anatase TiO2 was prepared by hydrolyzing titanium tetrabutoxide using polyoxietylene cetyl ether as a surfactant and its subsequent calcination at 500°C for 4 hours. A porous anatase TiO2 electrode with a relatively large pore volume and 50-nm-diamater pores showed a discharge capacity of approximately 150 mAh g-1. It maintained a relatively large discharge capacity of 125 mAh g-1 at a current density of 1 A g-1, and exhibited a good high-rate capability.

Info:

Periodical:

Edited by:

K. Katayama, K. Kato, T. Takenaka, M. Takata and K. Shinozaki

Pages:

187-190

DOI:

10.4028/www.scientific.net/KEM.350.187

Citation:

S. Suzuki et al., "Lithium Intercalation Properties of Porous Anatase TiO2 with Bimodal Pore Size Distribution ", Key Engineering Materials, Vol. 350, pp. 187-190, 2007

Online since:

October 2007

Export:

Price:

$35.00

[1] S. Suzuki and M. Miyayama, J. Power Sources, 124 (2003) p.513.

[2] T. Ohzuku, Z. Takehara and S. Yoshizawa, Electrochim. Acta, 24 (1979) p.219.

[3] T. Okada and M. Miyayama, Key Eng. Mater., 301(CSJ-13) (2005) p.151.

[4] X. Wang, J.C. Yu, C. Ho, Y. Hou and X. Fu, Langmuir, 21 (2005) p.2552. e-mail: sin@crm. rcast. u-tokyo. ac. jp FAX# +81-3-5452-5083 0 50 100 150.

[1] 2.

[1] 4.

[1] 6.

[1] 8.

[2] 0 Specific Capacity, Q / mAh (g-TiO2) -1 Potential, E / V (vs. Li+ /Li) 50 mA g-1 100 mA g-1 200 mA g-1 500 mA g-1 1 A g-1 0 50 100 150.

[1] 2.

[1] 4.

[1] 6.

[1] 8.

[2] 0 Specific Capacity, Q / mAh (g-TiO2) -1 Potential, E / V (vs. Li+ /Li) 50 mA g-1 100 mA g-1 200 mA g-1 Figure 3. Discharge curves for Comp-LP at various current densities. Figure 4. Discharge curves for Comp-HP at various current densities.
