Evaluation of Cracked Beam-to-Column Connection from Brittle Failure Using Finite Element Method

Abstract:

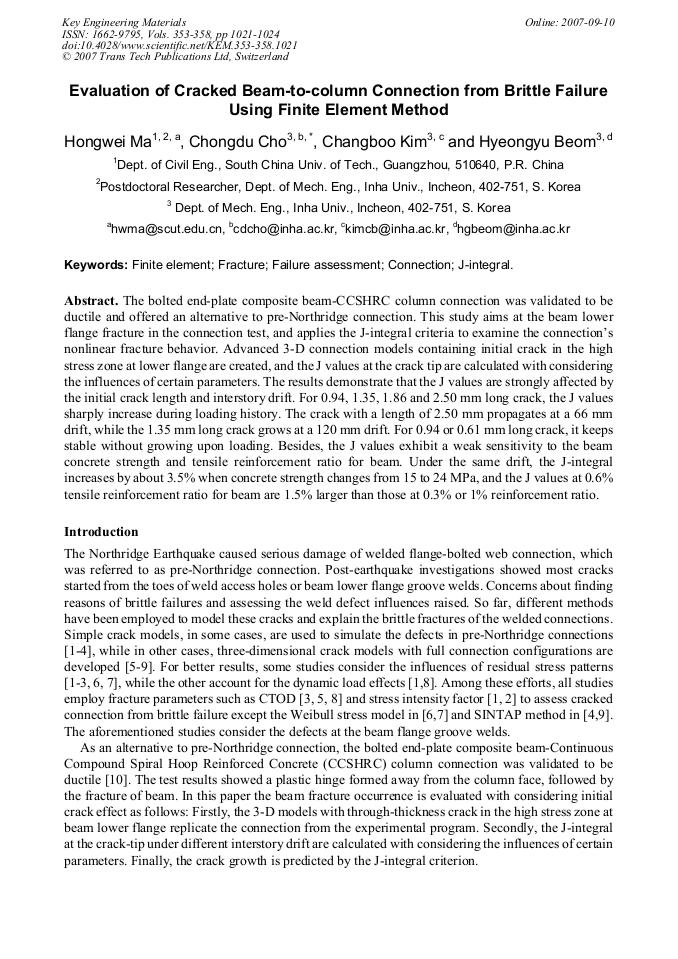

Article Preview

The bolted end-plate composite beam-CCSHRC column connection was validated to be ductile and offered an alternative to pre-Northridge connection. This study aims at the beam lower flange fracture in the connection test, and applies the J-integral criteria to examine the connection’s nonlinear fracture behavior. Advanced 3-D connection models containing initial crack in the high stress zone at lower flange are created, and the J values at the crack tip are calculated with considering the influences of certain parameters. The results demonstrate that the J values are strongly affected by the initial crack length and interstory drift. For 0.94, 1.35, 1.86 and 2.50 mm long crack, the J values sharply increase during loading history. The crack with a length of 2.50 mm propagates at a 66 mm drift, while the 1.35 mm long crack grows at a 120 mm drift. For 0.94 or 0.61 mm long crack, it keeps stable without growing upon loading. Besides, the J values exhibit a weak sensitivity to the beam concrete strength and tensile reinforcement ratio for beam. Under the same drift, the J-integral increases by about 3.5% when concrete strength changes from 15 to 24 MPa, and the J values at 0.6% tensile reinforcement ratio for beam are 1.5% larger than those at 0.3% or 1% reinforcement ratio.

Info:

Periodical:

Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie

Pages:

1021-1024

Citation:

H. W. Ma et al., "Evaluation of Cracked Beam-to-Column Connection from Brittle Failure Using Finite Element Method", Key Engineering Materials, Vols. 353-358, pp. 1021-1024, 2007

Online since:

September 2007

Export:

Price:

$38.00

[1] C.G. Matos and R.H. Dodds: Eng. Struct. Vol. 22 (2000), p.1103.

[2] T.D. Righiniotis, E. Omer and A.Y. Elghazouli: Eng. Struct. Vol. 24 (2002), p.1133.

[3] O.S. Bursi, F. Ferrario and V. Fontanari: Comput. Struct. Vol. 80 (2002), p.2333.

[4] T. Iwashita, Y. Kurobane, K. Azuma and Y. Makino: Eng. Struct. Vol. 25 (2003), p.1815.

[5] K. Azuma, Y. Kurobane and Y. Makino: Eng. Struct. Vol. 22 (2000), p.1596.

[6] C.G. Matos and R.H. Dodds: Eng. Struct. Vol. 23 (2001), p.1011.

[7] C.G. Matos and R.H. Dodds: Eng. Struct. Vol. 24 (2002), p.687.

[8] K. Kuntiyawichai and F.M. Burdekin: Eng. Fract. Mech. Vol. 70 (2003), p. (1991).

[9] B.G. Kiral and S. Erim: Eng. Struct. Vol 27 (2005), p.760.

[10] H.W. Ma, W.S. Jiang and J.P. Hao: J. of Harbin Inst. of Tech. (Supp. ) Vol. 35 (2003), p.185.

[11] S.D. Zhao and Z.B. Wang: Fafigue Resistance Design: Methods and Datas (China Machine Press, Beijing 1997).
