Self-Organized Zirconia Nanotube Arrays Prepared by Anodization

Rong Qing Xu; Jian Ling Zhao; Jin Liang Tao; Zun Ming Lu; Yang Xian Li

doi:10.4028/www.scientific.net/KEM.368-372.1510

Paper Titles

Nanoporous TiO₂/SiO₂ Composite Prepared by a Combined Sol-Gel and Hybrid Method
p.1497

Preparation and Photocatalytic Property of WO₃-TiO₂ /Ti Ceramic Film via Anodic Oxidation Treatment
p.1500

A Series of Bi-Based Oxychlorides as Efficient Photocatalysts
p.1503

Tri-Metallic Catalyst for Mass Production of Quasi-Aligned Carbon Nanotubes by Thermal Chemical Vapor Deposition
p.1507

Self-Organized Zirconia Nanotube Arrays Prepared by Anodization
p.1510

Preparation and Characterization of Macroporous Pumice-Porcelain Composite Foams
p.1513

Preparation of Molybdates with Antibacterial Property
p.1516

Preparation and Bactericidal Properties of Nano-SiO₂ Grafted with Macromolecular Quaternary Ammonium Salts Derivative of Alkylated Polyethylenimines
p.1519

Preparation and Characterization of CPC Interclating α-ZrP as VOCs Adsorbent
p.1523

HomeKey Engineering MaterialsKey Engineering Materials Vols. 368-372Self-Organized Zirconia Nanotube Arrays Prepared...

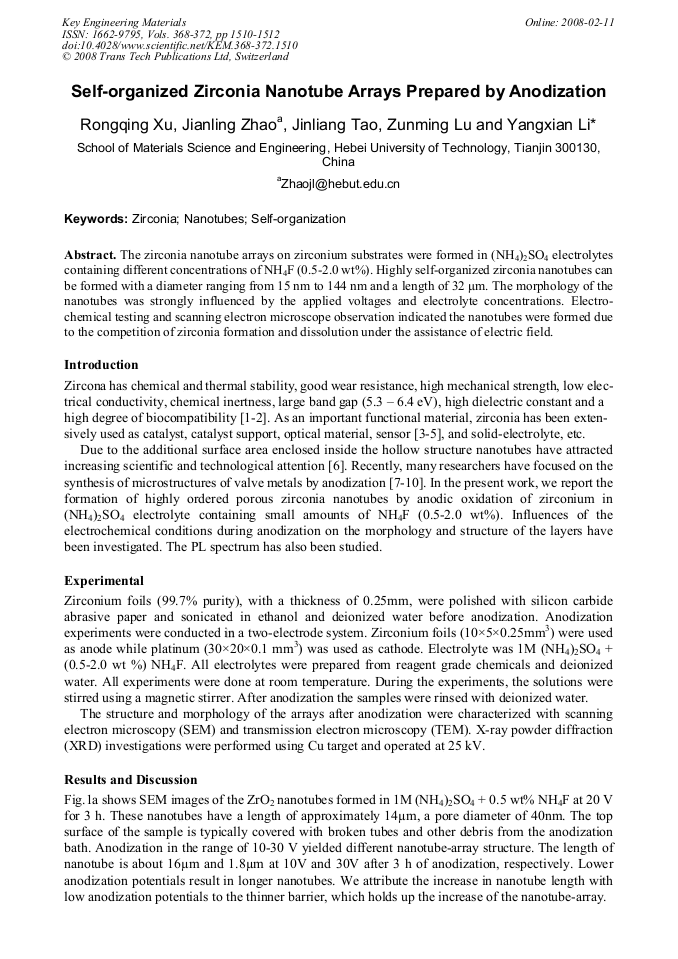

Self-Organized Zirconia Nanotube Arrays Prepared by Anodization

Abstract:

The zirconia nanotube arrays on zirconium substrates were formed in (NH4)2SO4 electrolytes containing different concentrations of NH4F (0.5-2.0 wt%). Highly self-organized zirconia nanotubes can be formed with a diameter ranging from 15 nm to 144 nm and a length of 32 μm. The morphology of the nanotubes was strongly influenced by the applied voltages and electrolyte concentrations. Electrochemical testing and scanning electron microscope observation indicated the nanotubes were formed due to the competition of zirconia formation and dissolution under the assistance of electric field.
