Phase Transformation of Tangshan Ironstone-Tailings at Different Temperatures

Kai Zhao; Jing Zhou Yang; Zhao Hui Huang; Ming Hao Fang; Yan Gai Liu

doi:10.4028/www.scientific.net/KEM.368-372.1532

Paper Titles

Preparation and Bactericidal Properties of Nano-SiO₂ Grafted with Macromolecular Quaternary Ammonium Salts Derivative of Alkylated Polyethylenimines
p.1519

Preparation and Characterization of CPC Interclating α-ZrP as VOCs Adsorbent
p.1523

Combustion Synthesis of Alumina-Based Multiphase Foam Ceramic
p.1526

High Temperature Properties of Geopolymeric Ceramic
p.1529

Phase Transformation of Tangshan Ironstone-Tailings at Different Temperatures
p.1532

Preparation of Wear-Resistant Ceramics with Tangshan Ironstone-Tailings
p.1535

Synthesis of Aluminium Titanate Ceramics from Waste Sludge of Aluminium Factory
p.1538

Adsorption of Soluble Metal Ions from Red Mud by Modified Activated Carbon
p.1541

Effect of Calcination Temperature on Mineral Composition of Carbide Slag, Lime Activity and Synthesized Xonotlite
p.1545

HomeKey Engineering MaterialsKey Engineering Materials Vols. 368-372Phase Transformation of Tangshan...

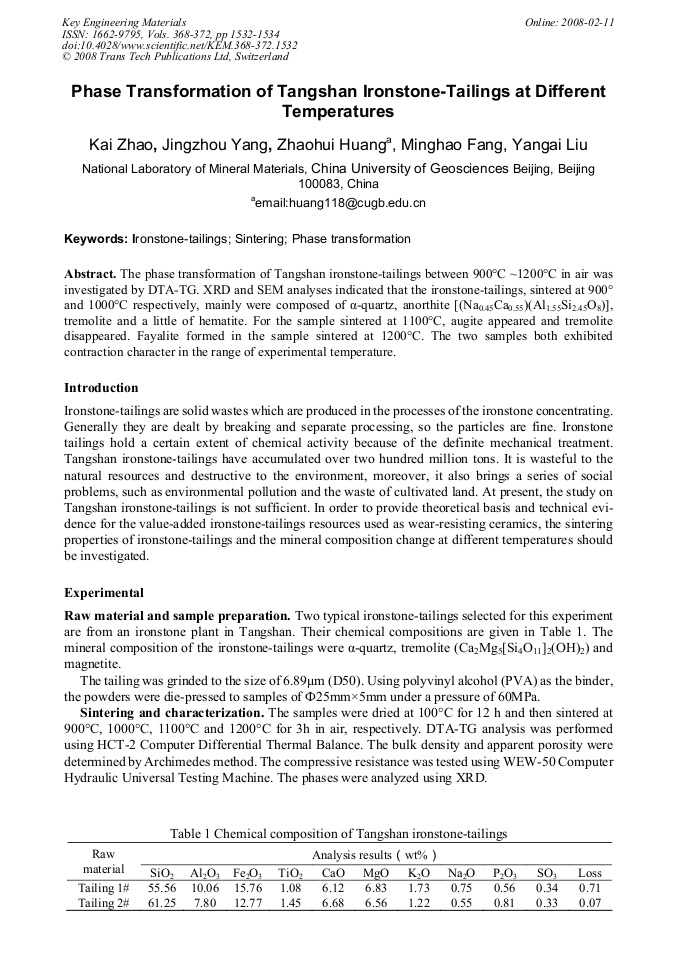

Phase Transformation of Tangshan Ironstone-Tailings at Different Temperatures

Abstract:

The phase transformation of Tangshan ironstone-tailings between 900°C ~1200°C in air was investigated by DTA-TG. XRD and SEM analyses indicated that the ironstone-tailings, sintered at 900° and 1000°C respectively, mainly were composed of α-quartz, anorthite [(Na0.45Ca0.55)(Al1.55Si2.45O8)], tremolite and a little of hematite. For the sample sintered at 1100°C, augite appeared and tremolite disappeared. Fayalite formed in the sample sintered at 1200°C. The two samples both exhibited contraction character in the range of experimental temperature.
