Simultaneous Flatness and Surface Roughness Measurement of a Plastic Sheet Using a Fan-Shaped Laser Beam Scanning System

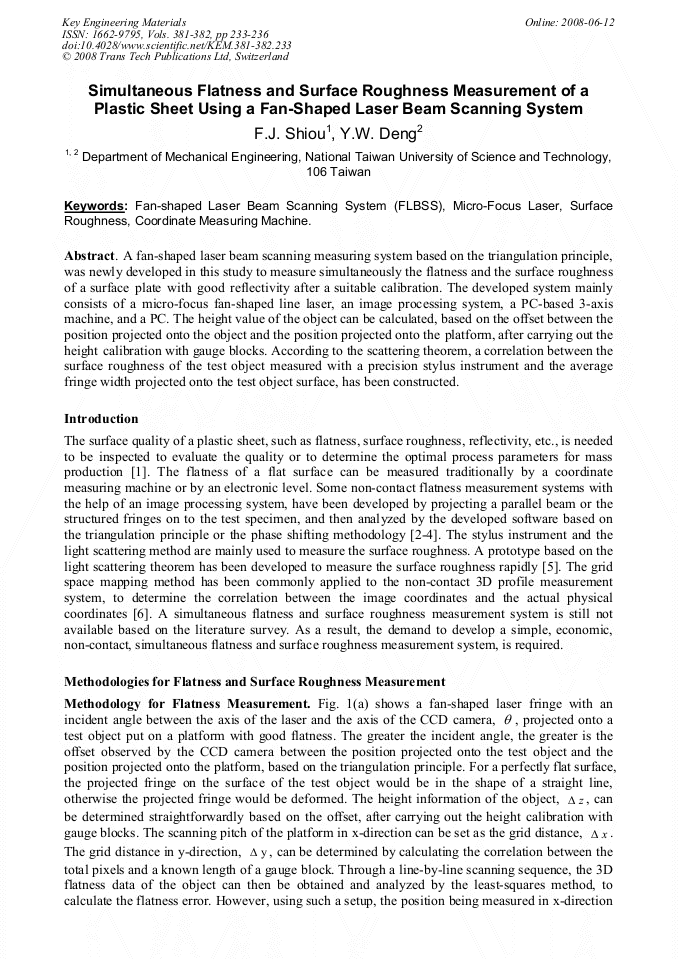

Abstract:

A fan-shaped laser beam scanning measuring system based on the triangulation principle, was newly developed in this study to measure simultaneously the flatness and the surface roughness of a surface plate with good reflectivity after a suitable calibration. The developed system mainly consists of a micro-focus fan-shaped line laser, an image processing system, a PC-based 3-axis machine, and a PC. The height value of the object can be calculated, based on the offset between the position projected onto the object and the position projected onto the platform, after carrying out the height calibration with gauge blocks. According to the scattering theorem, a correlation between the surface roughness of the test object measured with a precision stylus instrument and the average fringe width projected onto the test object surface, has been constructed.

You might also be interested in these eBooks

Measurement Technology and Intelligent Instruments VIII

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 381-382)

Pages:

233-236

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.381-382.233

Citation:

Cite this paper

Online since:

June 2008

Authors:

Fang Jung Shiou, Y.W. Deng

Keywords:

Coordinate Measuring Machine, Fan-Shaped Laser Beam Scanning System (FLBSS), Micro-Focus Laser, Surface Roughness (SR)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Neitzel, M. Blinzler, K. Edelmann, and F. Hoecker: Polymer Composites, Vol. 21(2000), Mo. 4, pp.630-635.

DOI: 10.1002/pc.10218

Google Scholar

[2] K. C. Fan and F. J. Shiou: Precision Engineering, Vol. 21(1997), No. 2, pp.102-112.

Google Scholar

[3] M. Chang and D. S. Wang: Optics and Lasers in Engineering, Vol. 15(1991), No. 2, pp.127-139.

Google Scholar

[4] S. Pavageau, R. Dallier, N. Servagent, and T. Bosch: Measurement Science and Technology, Vol. 14(2003), No. 12, pp.2121-2126.

DOI: 10.1088/0957-0233/14/12/011

Google Scholar

[5] D. G. Jansson, J. M. Rourke, and A. C. Bell: J. of Engineering for Industry, Vol. 106(1984), pp.34-39.

Google Scholar

[6] M. Chang and K. H. Lin: Optics and Lasers in Engineering, Vol. 30(1999), pp.503-512.

Google Scholar

[7] P. Beckmann and A. Spizzichino: The scattering of electromagnetic waves from rough surfaces, (Pergamon Press Ltd, 1987).

Google Scholar
