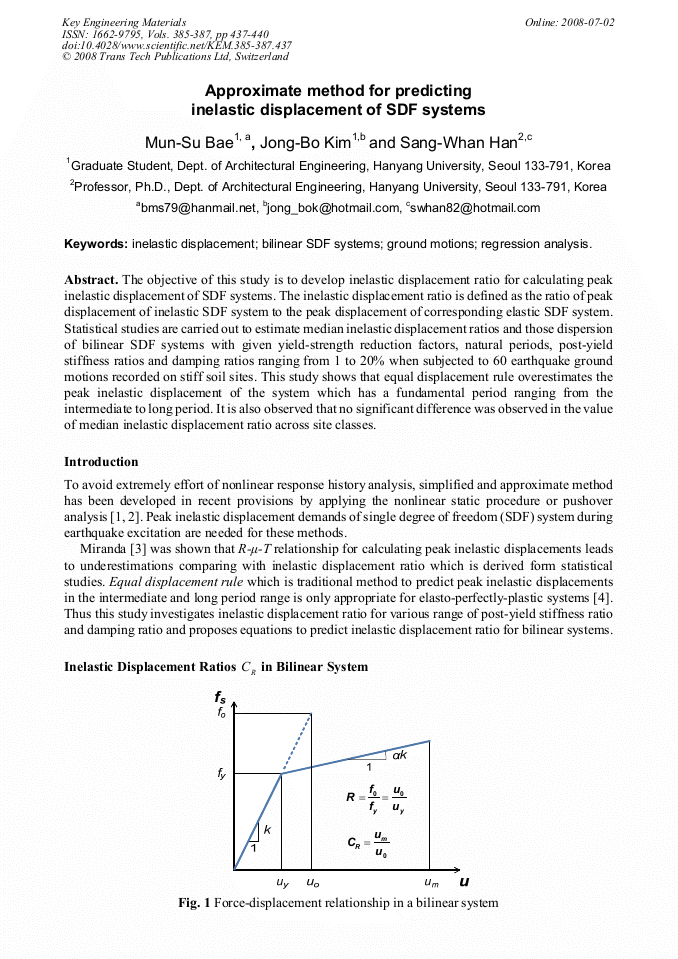

Approximate Method for Predicting Inelastic Displacement of SDF Systems

Abstract:

The objective of this study is to develop inelastic displacement ratio for calculating peak inelastic displacement of SDF systems. The inelastic displacement ratio is defined as the ratio of peak displacement of inelastic SDF system to the peak displacement of corresponding elastic SDF system. Statistical studies are carried out to estimate median inelastic displacement ratios and those dispersion of bilinear SDF systems with given yield-strength reduction factors, natural periods, post-yield stiffness ratios and damping ratios ranging from 1 to 20% when subjected to 60 earthquake ground motions recorded on stiff soil sites. This study shows that equal displacement rule overestimates the peak inelastic displacement of the system which has a fundamental period ranging from the intermediate to long period. It is also observed that no significant difference was observed in the value of median inelastic displacement ratio across site classes.

You might also be interested in these eBooks

Advances in Fracture and Damage Mechanics VII

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 385-387)

Pages:

437-440

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.385-387.437

Citation:

Cite this paper

Online since:

July 2008

Authors:

Mun Su Bae, Jong Bo Kim, Sang Whan Han

Keywords:

Bilinear SDF System, Ground Motion, Inelastic Displacement, Regression Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Applied Technology Council: Seismic evaluation and retrofit of concrete buildings, Report ATC-40, Redwood City, Calif., (1996).

Google Scholar

[2] BSSC: NEHRP guidelines for the seismic rehabilitation of buildings, Report FEMA 273(Guidelines) and Report. 274 (Commentary), Federal Emergency Management Agency Washington, D.C., (1997).

Google Scholar

[3] Miranda, E.: Estimation of inelastic deformation demands of SDOF systems, J. Struct. Engrg., ASCE, 127(9), 1005-1012, (2001).

DOI: 10.1061/(asce)0733-9445(2001)127:9(1005)

Google Scholar

[4] Ruiz-García, J. and Miranda, E.: Performance-based assessment of existing structures accounting for residual displacement, Report TR-153, The John A. Blume Earthquake Engineering Center, Stanford University, Stanford, CA, (2005).

Google Scholar

[5] Chopra, A.K. and Chintanapakdee, C.: Inelastic deformation ratios for design and evaluation of structures: single-degree-of-freedom bilinear system, J. Struct. Engrg., ASCE, 130(9), 1309-1319, (2004).

DOI: 10.1061/(asce)0733-9445(2004)130:9(1309)

Google Scholar
