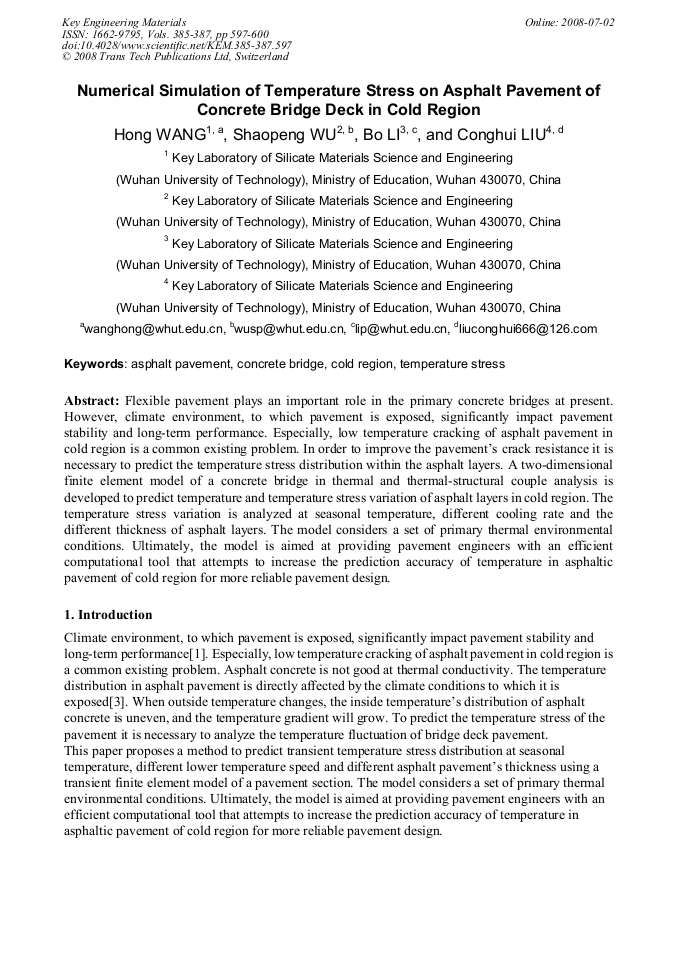

Numerical Simulation of Temperature Stress on Asphalt Pavement of Concrete Bridge Deck in Cold Region

Abstract:

Flexible pavement plays an important role in the primary concrete bridges at present. However, climate environment, to which pavement is exposed, significantly impact pavement stability and long-term performance. Especially, low temperature cracking of asphalt pavement in cold region is a common existing problem. In order to improve the pavement’s crack resistance it is necessary to predict the temperature stress distribution within the asphalt layers. A two-dimensional finite element model of a concrete bridge in thermal and thermal-structural couple analysis is developed to predict temperature and temperature stress variation of asphalt layers in cold region. The temperature stress variation is analyzed at seasonal temperature, different cooling rate and the different thickness of asphalt layers. The model considers a set of primary thermal environmental conditions. Ultimately, the model is aimed at providing pavement engineers with an efficient computational tool that attempts to increase the prediction accuracy of temperature in asphaltic pavement of cold region for more reliable pavement design.

• Periodical: Key Engineering Materials (Volumes 385-387)
• Pages: 597-600
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.385-387.597
• Online since: July 2008
• Authors: Hong Wang, Shao Peng Wu, Bo Li, Cong Hui Liu
• Keywords: Asphalt Pavement, Cold Region, Concrete Bridge, Temperature Stress

References

[1] C. Yavuzturk, K. Ksaibati, P.E., and A. D: Chiasson, P.E. Journal of Materials in Civil Engineering, Vol. 17(2005), pp.465-475.

[2] Manuel J. C. Minhoto, Jorge C. Pais and Paulo A. A. Pereira etc: Transportation Research Record, Vol. 1919(2005), pp.96-110.

[3] H. I. Al-Abdul Wahhab, and F. A. Balghunaim: Journal of Materials in Civil Engineering, Vol. 6(1994), pp.5282-5296.

[4] Andrew D. Chiasson, Ph.D., P.E., and Cenk Yavuzturk etc: Journal of Materials in Civil Engineering, Vol. 20(2008), pp.118-127.

[5] Barber, E. S: Highway Research Board Bulletin, Vol. 168(1957), pp.1-8. accelerated cooling actual cooling - 22 - 20 - 18 - 16 - 14 6 7 8 9 10 11 Time(h) Temperature(℃).

36.

41.

46.

51.

56 σ(MPa) Fig. 3 Surface temperature stress distribution on different cooling rates.

15.

2.

25.

3.

35.

4.

45 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time(h) σ(MPa) 4cm 5cm 6cm Fig. 4 Temperature stress distribution of bottom pavement on different asphalt thickness.
