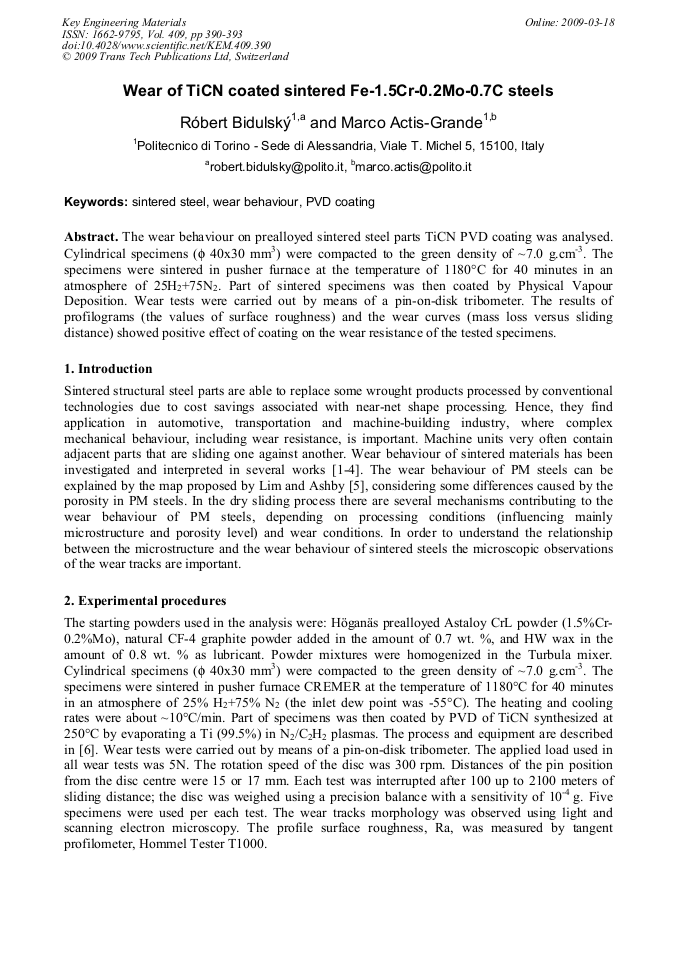

Wear of TiCN Coated Sintered Fe-1.5Cr-0.2Mo-0.7C Steels

Abstract:

The wear behaviour on prealloyed sintered steel parts TiCN PVD coating was analysed. Cylindrical specimens ( 40x30 mm3) were compacted to the green density of ~7.0 g.cm-3. The specimens were sintered in pusher furnace at the temperature of 1180°C for 40 minutes in an atmosphere of 25H2+75N2. Part of sintered specimens was then coated by Physical Vapour Deposition. Wear tests were carried out by means of a pin-on-disk tribometer. The results of profilograms (the values of surface roughness) and the wear curves (mass loss versus sliding distance) showed positive effect of coating on the wear resistance of the tested specimens.

• Periodical: Key Engineering Materials (Volume 409)
• Pages: 390-393
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.409.390
• Online since: March 2009
• Authors: Róbert Bidulský, Marco Actis Grande
• Keywords: PVD Coating, Sintered Steel, Wear Behaviour

References

[1] M. Campos and J.M. Torralba: Surf. Coat. Technol. Vol. 182 (2004), p.351.

[2] G. Straffelini and A. Molinari: Wear Vol. 159 (1992), p.127.

[3] A.I. Taskinen and M.H. Tikkanen: Prog. Powder Metall. Vol. 17 (1984), p.545.

[4] J. Wang and H. Danninger: Wear Vol. 222 (1998), p.49.

[5] S.C. Lim and M.F. Ashby: Acta Metall. Vol. 35 (1987), p.1.

[6] J. Kral, M. Ferdinandy, D. Liska and P. Diko: Mater. Sci. Eng. Vol. 140 A (1991), p.479.

[7] J. Bidulská, T. Kvačkaj and V. Bodák: Hutnicke listy Vol. 57 [1-3] (2002), p.11.

[8] J. Bidulská, T. Kvačkaj, V. Bodák and R. Rakučiak: Acta Metallurgica Slovaca Vol. 8 (2002), p.211.

[9] H. Karlsson, L. Nyborg abd S. Berg: Powder Metall. Vol. 48.

[1] (2005), p.51.

[10] E. Hryha, L. Čajková and E. Dudrová: Powder Metall. Progr. Vol. 7 (2007), p.181.

[11] Friction, Lubrication, and Wear Technology, Vol. 18 of the ASM Handbook, ASM International, (1992).
