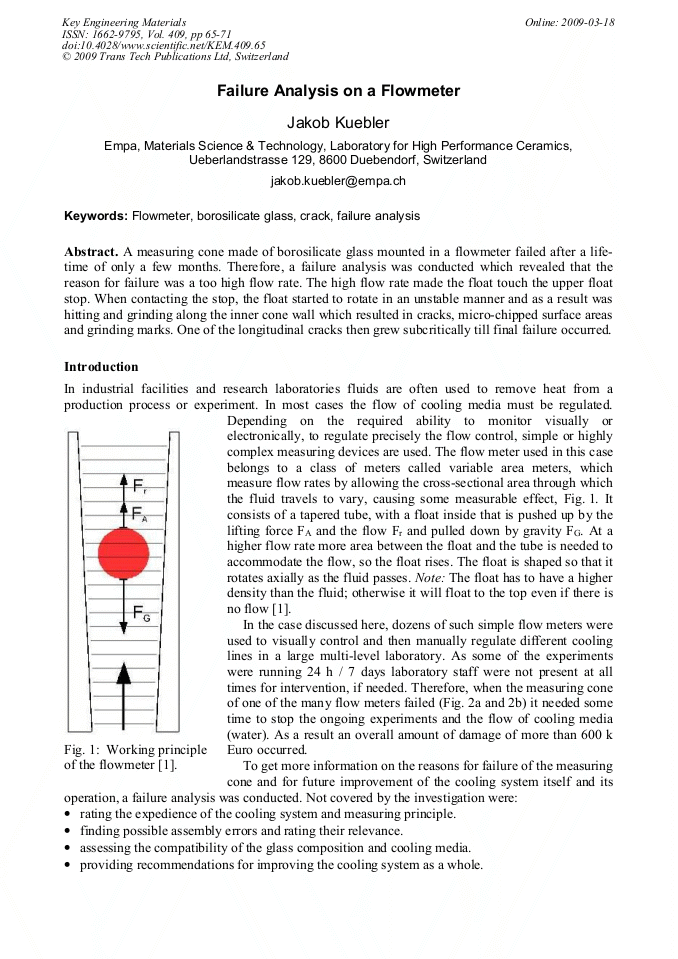

Failure Analysis on a Flowmeter

Abstract:

A measuring cone made of borosilicate glass mounted in a flowmeter failed after a life¬time of only a few months. Therefore, a failure analysis was conducted which revealed that the reason for failure was a too high flow rate. The high flow rate made the float touch the upper float stop. When contacting the stop, the float started to rotate in an unstable manner and as a result was hitting and grinding along the inner cone wall which resulted in cracks, micro-chipped surface areas and grinding marks. One of the longitudinal cracks then grew subcritically till final failure occurred.

• Periodical: Key Engineering Materials (Volume 409)
• Pages: 65-71
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.409.65
• Online since: March 2009
• Authors: Jakob Kuebler
• Keywords: Borosilicate Glass, Crack, Failure Analysis, Flowmeter

References

[1] Information on http: /www. wikipedia. org.

[2] G.D. Quinn: Fractography of Ceramics and Glasses, NIST Recommended Practice Guide, Spec. Publ. 960-16, (2007), pp.4-33 / 7-22.

DOI: 10.6028/nbs.sp.960-16

[3] D. Munz and T. Fett: Ceramics - Mechanical Properties, Failure Behaviour, Materials Selection, Springer Series in Materials Science, Vol. 36 (1999), p.48 / 150.

DOI: 10.1007/978-3-642-58407-7

[4] R. Morrell: Handbook of Properties of Technical & Engineering Ceramics - Part 1: An Introduction for the Engineer and Designer, HMSO Publication Centre, London, (1985), p.124 / 125.

[5] T. Fett, K. Keller, J. Kübler and D. Munz: Theor. Appl. Fract. Mech. Vol. 16 (1991), p.27.
