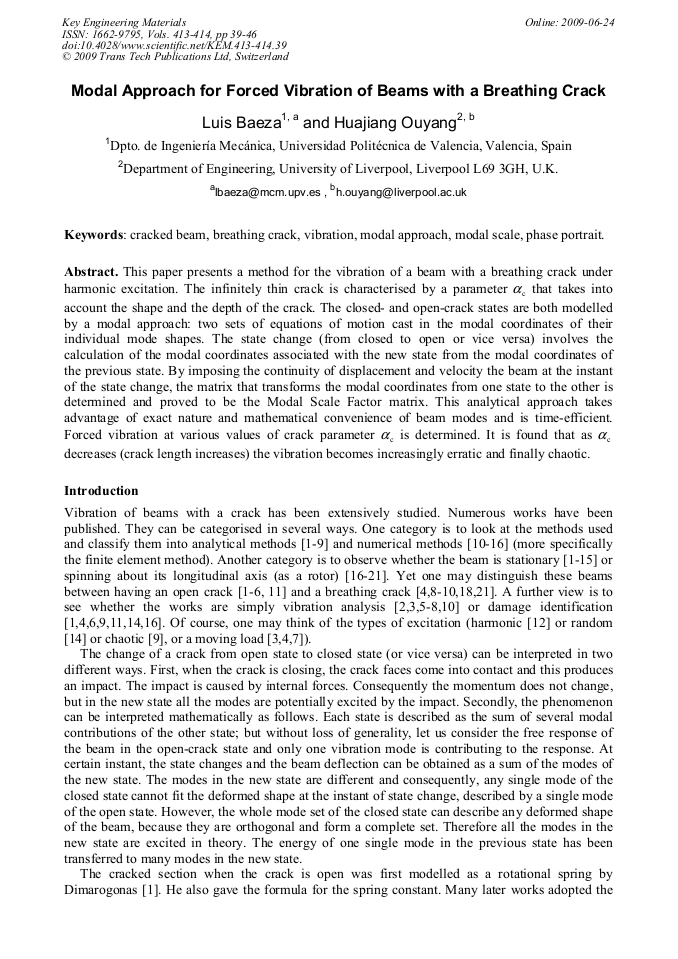

Modal Approach for Forced Vibration of Beams with a Breathing Crack

Abstract:

This paper presents a method for the vibration of a beam with a breathing crack under harmonic excitation. The infinitely thin crack is characterised by a parameter that takes into account the shape and the depth of the crack. The closed- and open-crack states are both modelled by a modal approach: two sets of equations of motion cast in the modal coordinates of their individual mode shapes. The state change (from closed to open or vice versa) involves the calculation of the modal coordinates associated with the new state from the modal coordinates of the previous state. By imposing the continuity of displacement and velocity the beam at the instant of the state change, the matrix that transforms the modal coordinates from one state to the other is determined and proved to be the Modal Scale Factor matrix. This analytical approach takes advantage of exact nature and mathematical convenience of beam modes and is time-efficient. Forced vibration at various values of crack parameter is determined. It is found that as decreases (crack length increases) the vibration becomes increasingly erratic and finally chaotic.

• Periodical: Key Engineering Materials (Volumes 413-414)
• Pages: 39-46
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.413-414.39
• Online since: June 2009
• Authors: Luis Baeza, Hua Jiang Ouyang
• Keywords: Breathing Crack, Cracked Beam, Modal Approach, Modal Scale, Phase Portrait, Vibration

References

[1] P.F. Rizos, N. Aspragathos and A.D. Dimarogonas: Journal of Sound and Vibration Vol. 138 (1990), p.381.

[2] W.M. Ostachowitz and M. Krawczuk: Journal of Sound and Vibration Vol. 150 (1991), p.191.

[3] H.P. Lee and T.Y. Ng: Acta Mechanica Vol. 106 (1994), p.221.

[4] S.S. Law and X.Q. Zhu: Engineering Structures Vol. 26 (2004), p.1279.

[5] X. Zhu, T.Y. Li, Y. Zhao and J.X. Liu: Journal of Sound and Vibration Vol. 297 (2006), p.215.

[6] H. -P. Lin: Engineering Structures Vol. 26 (2004), p.427.

[7] H. -P. Lin and S. -C. Chang: International Journal of Mechanical Sciences Vol. 48 (2006), p.1456.

[8] T.G. Chondros, A.D. Dimarogonas and J. Yao: Journal of Sound and Vibration Vol. 239 (2001), p.57.

[9] J. Ryue and P.R. White: Journal of Sound and Vibration Vol. 307 (2007), p.627.

[10] M. Kisa and J.A. Brandon: Journal of Sound and Vibration Vol. 238 (2000), p.1.

[11] J.K. Sinha, M.I. Friswell and S. Edwards: Journal of Sound and Vibration Vol. 251 (2002), p.13.

[12] U. Andreaus, P. Casini and F. Vestroni: Journal of Non-Linear Mechanics Vol. 42 (2007), p.566.

[13] E. Luzzato: Journal of Sound and Vibration Vol. 265 (2003), p.745.

[14] S. Benfratello, P. Cacciola, N. Impollonia, A. Masnata and G. Muscolino: Engineering Fracture Mechanics Vol. 74, (2007), p.2992.

DOI: 10.1016/j.engfracmech.2006.06.023

[15] M. Skrinar and T. Plibersek: Computational Material Science Vol. 39 (2007), p.250.

[16] S. Ratan, H. Baruh and J. Rodriguez: Journal of Sound and Vibration Vol. 194 (1996), p.67.

[17] S.C. Huang, Y.M. Huang and S.M. Shieh: Journal of Sound and Vibration Vol. 162 (1993), p.387.

[18] I. Ballo: Journal of Sound and Vibration Vol. 217 (1998), p.321.

[19] C. Chen and L. Dai: Nonlinear Dynamics Vol. 50 (2007), p.483.

[20] J. -J. Sinou and A.W. Lees: European Journal of Mechanics A-Solids Vol. 26 (2007), p.152.

[21] O.S. Jun and M.S. Gadala: Journal of Sound and Vibration Vol. 309 (2008), p.1075.

[22] C. Zhong, O.S. Oyadiji and K. Ding: Journal of Sound and Vibration Vol. 311 (2008), p.210.

[23] M.I. Friswell and J.E.T. Penny: Structural Health Monitoring Vol. 1 (2002), p.139.

[24] G. Kerschen, K. Worden, A.F. Vakakis and J.C. Golinval: Mechanical Systems and Signal Processing Vol. 20 (2006), p.505.

DOI: 10.1016/j.ymssp.2005.04.008

[25] S. Timoshenko: Vibration Problems in Engineering (3rd edition) (Van Nostrand, New York, 1955).

[26] P.J.P. Gonçalves, M.J. Brennan and S.J. Elliott: Journal of Sound and Vibration 301 (2007), p.1035.
