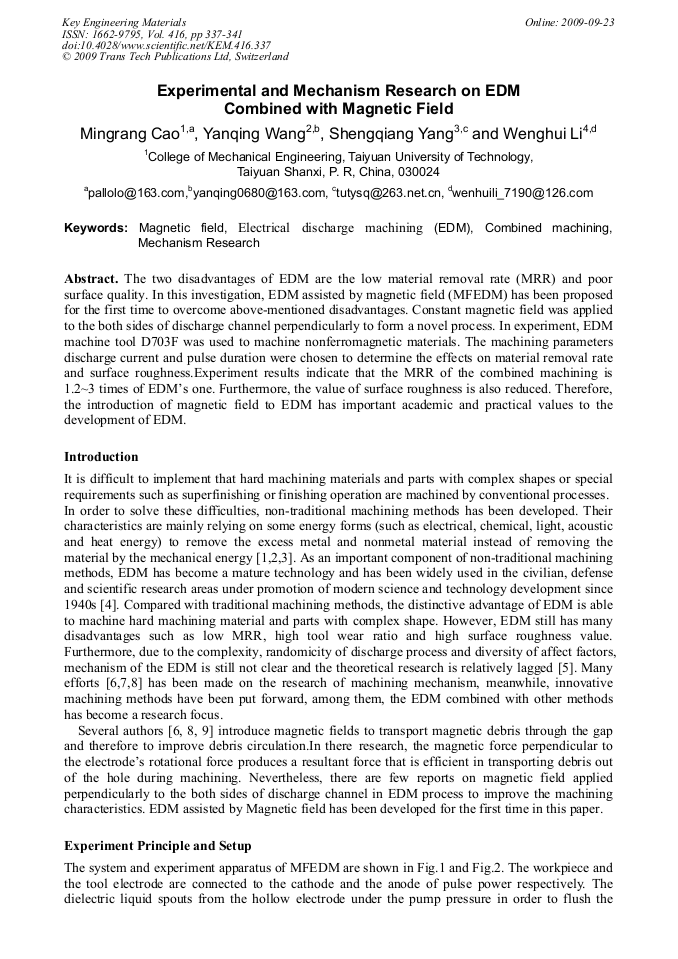

Experimental and Mechanism Research on EDM Combined with Magnetic Field

Abstract:

The two disadvantages of EDM are the low material removal rate (MRR) and poor surface quality. In this investigation, EDM assisted by magnetic field (MFEDM) has been proposed for the first time to overcome above-mentioned disadvantages. Constant magnetic field was applied to the both sides of discharge channel perpendicularly to form a novel process. In experiment, EDM machine tool D703F was used to machine nonferromagnetic materials. The machining parameters discharge current and pulse duration were chosen to determine the effects on material removal rate and surface roughness.Experiment results indicate that the MRR of the combined machining is 1.2~3 times of EDM’s one. Furthermore, the value of surface roughness is also reduced. Therefore, the introduction of magnetic field to EDM has important academic and practical values to the development of EDM.

You might also be interested in these eBooks

Advances in Grinding and Abrasive Technology XV

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 416)

Pages:

337-341

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.416.337

Citation:

Cite this paper

Online since:

September 2009

Authors:

Ming Rang Cao, Y.Q. Wang, Sheng Qiang Yang, Weng Hui Li

Keywords:

Combined Machining, Electric Discharge Machining (EDM), Magnetic Field, Mechanism Research

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W.S. Zhao and J.C. Liu: The EDM Technology (Harbin University of Technology Press, China 2000), pp.90-97. (In Chinese).

Google Scholar

[2] F.G. Cao: The EDM Technology (Chemical Industry Press, China 2005), pp.9-24. (In Chinese).

Google Scholar

[3] G.C. Wang and Y.X. Zhang: The Precision and �on-traditional Machining (Wuhan University of Technology Press, China 2001), pp.1-2. (In Chinese).

Google Scholar

[4] K.H. Ho and S.T. Newman: International Journal of Machine Tools and Manufacture, Vol. 43 (2003) No. 13, pp.1287-1300.

Google Scholar

[5] H.Y. X, M.H. Li and Y.H. Peng: Electromachining & Machining (1997) No. 3, pp.8-12. (In Chinese).

Google Scholar

[6] H.E. De Bruijn, T.H. Delft and A.J. Pekelaring: Ann. CIRP 27 1 (1978), pp.93-95.

Google Scholar

[7] Y.Y. Tsai, C.H. Tseng and C.K. Chang: Journal of Materials Processing Technology, Vol. 201 (2008), pp.565-569.

Google Scholar

[8] Y.C. Lin and H.S. Lee: International Journal of Machine Tools & Manufacture, Vol. 48 (2008), pp.1179-1186.

Google Scholar

[9] S.H. Yeo, M. Murali and H.T. Cheah: Journal of Micromechanics and Microengineering, Vol. 14 (2004), pp.1526-1529.

Google Scholar
