Experimental Research on Diamond String Bead Wire Cutting the Steel-Based Material

Abstract:

Diamond wire saw was a tool which is used to cut the steel-based material, its grinding mechanism was researched in the paper. Based on technical characteristic of the diamond wire, a string of diamond beads in the cutting moment was detected by using the electron microscope. Wear figuration and invalidation reason of the diamond beads was analyzed, and mathematic relation among wear rate, feed velocity and cutting velocity of the diamond wire were educed, and reasonable cutting parameters were received. In order to validate the mathematic model, the experiment was finished. When the diamomd wire saw is used to cut the steel-based material, its two experiential formulas of radial feed force and tangent cutting force are educed by using the orthogonal regression method. In the formula, radial force and cutting force is increasing with augment of the workpiece breadth, ridial feed velocity and cutting velocity, and influence of the workpiece breadth to the cutting force is more than to the radial force. Meanwhile, experiment show yet that error between theory cutting(or feed) force and actual cutting(or feed) force is in the reasonable scope.

You might also be interested in these eBooks

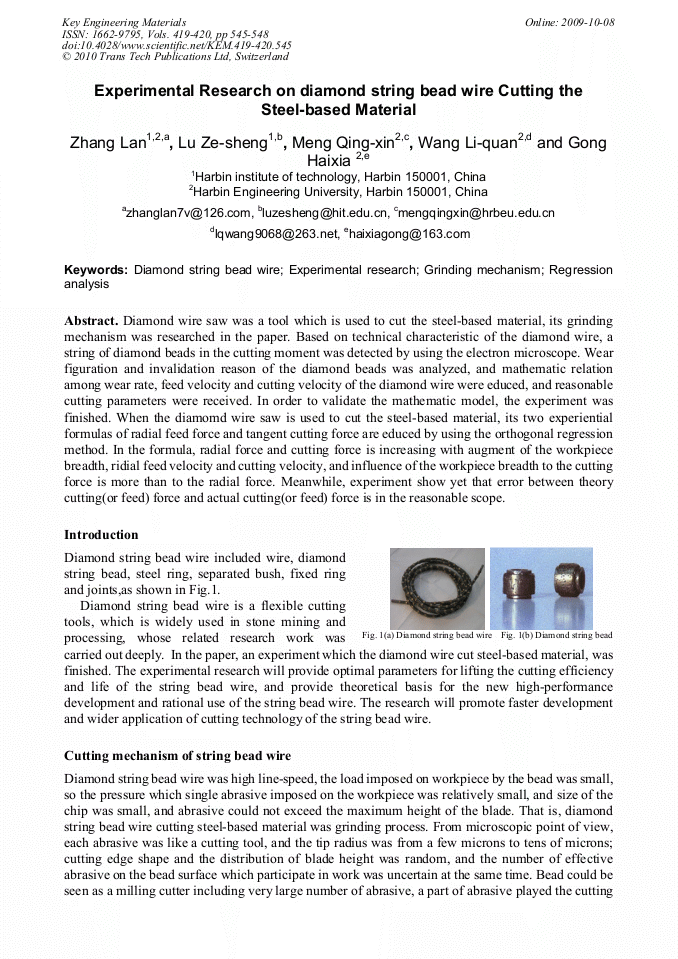

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 419-420)

Pages:

545-548

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.419-420.545

Citation:

Cite this paper

Online since:

October 2009

Authors:

Lan Zhang, Ze Sheng Lu, Qing Xin Meng, Li Quan Wang, Hai Xia Gong

Keywords:

Diamond String Bead Wire, Experimental Research, Grinding Mechanism, Regression Analysis

Export:

RIS, BibTeX
