Millimeter Wave Sintering of AlN Ceramics for Heat Sink Application

Akira Kishimoto; Tetsuya Morimoto; Hidetaka Hayashi

doi:10.4028/www.scientific.net/KEM.421-422.533

Paper Titles

Preparation of Barium Titanate and Strontium Titanate Nanocube Particles and their Accumulation Using Smart Glue
p.514

Relaxation Phenomena of MgCuZn Ferrites
p.521

Effect of Thermal Annealing on Electrical Degradation Characteristics of Sb₂O₃-Bi-Mn-Co-Doped ZnO Varistors
p.525

The Effect of Reoxidation on Thermal Shock Resistance of SrTiO₃-Based Varistors
p.529

Millimeter Wave Sintering of AlN Ceramics for Heat Sink Application
p.533

Thermophysical Behaviour of Crystalline Halides with Temperature
p.537

High Frequency Characteristic of Elements Substituted Hexagonal Ferrites
p.541

New Titanium Oxide Compound for Photocatalytic Water Splitting, Hydrous Na₁₆Ti₁₀O₂₈
p.546

Effect of Vibro-Milling Time on Phase Formation and Particle Size of ZnNbO₆ Nano-Powders
p.550

HomeKey Engineering MaterialsKey Engineering Materials Vols. 421-422Millimeter Wave Sintering of AlN Ceramics for Heat...

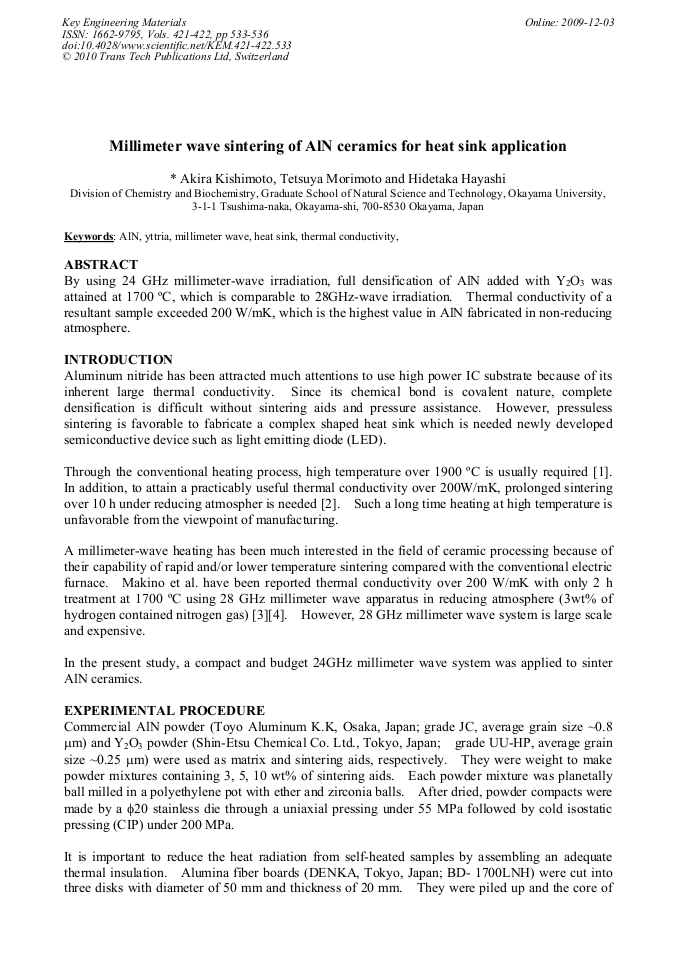

Millimeter Wave Sintering of AlN Ceramics for Heat Sink Application

Abstract:

By using 24 GHz millimeter-wave irradiation, full densification of AlN added with Y2O3 was attained at 1700 °C, which is comparable to 28GHz-wave irradiation. Thermal conductivity of a resultant sample exceeded 200 W/mK, which is the highest value in AlN fabricated in non-reducing atmosphere.
