High Temperature Mechanical Properties of Ti(C,N)-Co-Mo₂C Cermets

Abstract:

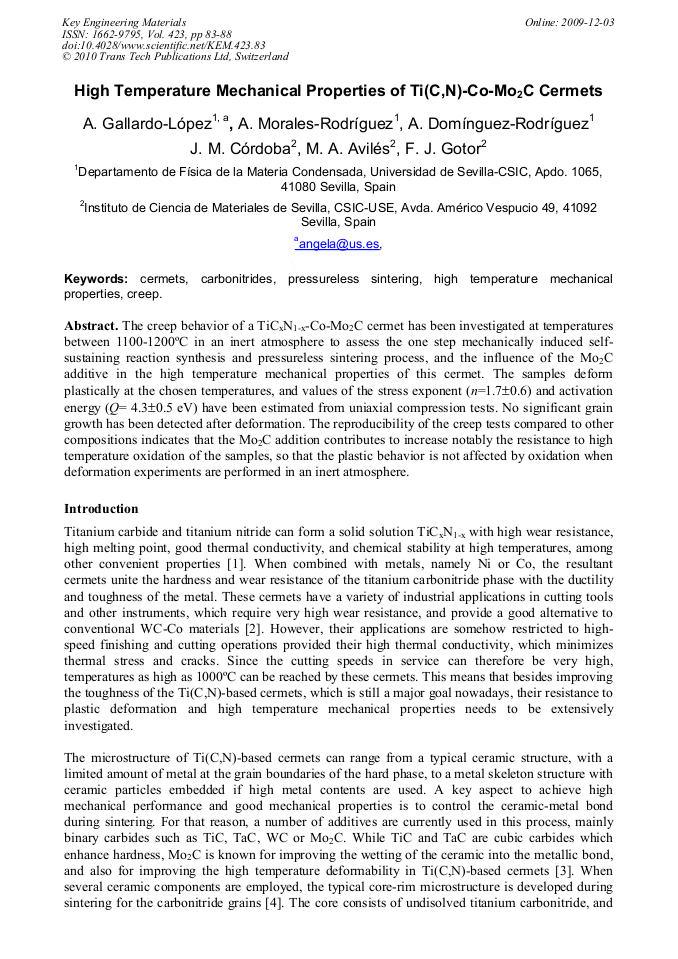

The creep behavior of a TiCxN1-x-Co-Mo2C cermet has been investigated at temperatures between 1100-1200°C in an inert atmosphere to assess the one step mechanically induced self-sustaining reaction synthesis and pressureless sintering process, and the influence of the Mo2C additive in the high temperature mechanical properties of this cermet. The samples deform plastically at the chosen temperatures, and values of the stress exponent (n=1.70.6) and activation energy (Q= 4.30.5 eV) have been estimated from uniaxial compression tests. No significant grain growth has been detected after deformation. The reproducibility of the creep tests compared to other compositions indicates that the Mo2C addition contributes to increase notably the resistance to high temperature oxidation of the samples, so that the plastic behavior is not affected by oxidation when deformation experiments are performed in an inert atmosphere.

• Periodical: Key Engineering Materials (Volume 423)
• Pages: 83-88
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.423.83
• Online since: December 2009
• Authors: Angela Gallardo-López, A. Morales-Rodríguez, Arturo Domínguez-Rodríguez, J.M. Córdoba, M.A. Avilés, F.J. Gotor
• Keywords: Carbonitrides, Cermet, Creep, High-Temperature Mechanical Property, Pressureless Sintering

References

[1] H. Pastor, Mater. Sci. Eng. A., 106 (1988) 401-409.

[2] P. Ettmayer, H. Kolaska, W. Lengauer and K Dreyer, Int. J. Refract. Met. Hard Mater., 13 (1995) 343-351.

[3] K. Okuyama and T. Sakuma, Mat. Sci. Eng. A, 194 (1995) 63-68.

[4] J. Zackrisson and H. O. Andrén, Int. J. Refract. Met. Hard Mater., 17 (1999) 265-273.

[5] F. Qi and S. Kang, Mater. Sci. Eng. A., 251 (1998) 276-285.

[6] A. Bellosi, F. Monteverde, R. Calzavarini and C. Zancolo, Int. J. Refract. Met. Hard Mater., 19 (2001) 191-202.

[7] C. C. Koch, Nanostruct. Mater., 9 (1997) 13-22.

[8] L. Takacs, Prog. Mater. Sci, 47 (2002) 355-414.

[9] J. M. Córdoba, M. J. Sayagués, M. D. Alcalá, and F. J. Gotor, J. Am. Ceram. Soc., 88 (2005) 1760-1764.

[10] J. M. Córdoba, M. D. Alcalá, M. A. Avilés, M. J. Sayagüés and F. J. Gotor, J. Eur. Ceram. Soc., 28 (2008) 2085-(2098).

[11] S. Sarian, J. Appl. Phys., 39 (1968) 3305-3310.

[12] M. F. Ashby and R. A. Verrall, Acta Metall., 21 (1973) 149-163.

[13] S. Bolognini, G. Feusier, D. Mari, T. Viatte, and W. Benoit, Int. J. Refract. Met. Hard Mater., 16 (1998) 257-268.
