Microstructure and Mechanical Property of Three-Dimensional Needled C/SiC Composites Prepared by Precursor Pyrolysis

Cui Lin Han; Dong Lin Zhao; Lei Zhang; Zeng Min Shen

doi:10.4028/www.scientific.net/KEM.434-435.45

Paper Titles

Mechanical and Tribological Properties of 3D Carbon Fiber Reinforced SiC Composites Prepared by Liquid Silicon Infiltration
p.28

Structure and Performance of Self-Reactive Spray Formed Ti(C,N)-TiB₂ Multi-Phased Ceramic Materials
p.33

Microstructure and Performance of the Hot-Pressed Silicon Nitride Ceramics with Lu₂O₃ Additives
p.37

Effects of CeO₂ on the Mechanical Property and Microstructure of 3Y-TZP Nanocomposite Ceramic Die Material
p.42

Microstructure and Mechanical Property of Three-Dimensional Needled C/SiC Composites Prepared by Precursor Pyrolysis
p.45

Property and Microstructure of CNTs/AlN Ceramics
p.48

Microstructures and Mechanical Properties of B₄C-TiB₂ Composite Prepared by Hot Pressure Sintering
p.50

Effects of Adding SiC Powder on the Properties of Carbon Fiber Reinforced Si-O-C Composites Fabricated via Precursor Pyrolysis
p.54

Damage Detection in Fibre Reinforced Ceramic and Metal Matrix Composites by Acoustic Emission
p.57

HomeKey Engineering MaterialsKey Engineering Materials Vols. 434-435Microstructure and Mechanical Property of...

Microstructure and Mechanical Property of Three-Dimensional Needled C/SiC Composites Prepared by Precursor Pyrolysis

Abstract:

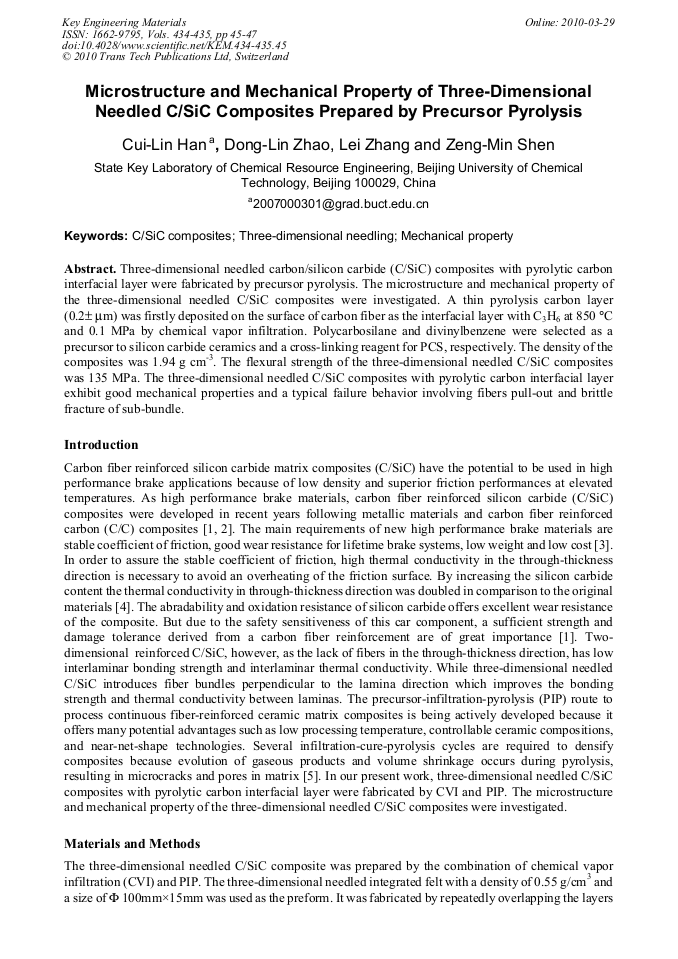

Three-dimensional needled carbon/silicon carbide (C/SiC) composites with pyrolytic carbon interfacial layer were fabricated by precursor pyrolysis. The microstructure and mechanical property of the three-dimensional needled C/SiC composites were investigated. A thin pyrolysis carbon layer (0.2m) was firstly deposited on the surface of carbon fiber as the interfacial layer with C3H6 at 850 °C and 0.1 MPa by chemical vapor infiltration. Polycarbosilane and divinylbenzene were selected as a precursor to silicon carbide ceramics and a cross-linking reagent for PCS, respectively. The density of the composites was 1.94 g cm-3. The flexural strength of the three-dimensional needled C/SiC composites was 135 MPa. The three-dimensional needled C/SiC composites with pyrolytic carbon interfacial layer exhibit good mechanical properties and a typical failure behavior involving fibers pull-out and brittle fracture of sub-bundle.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 434-435)

Pages:

45-47

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.434-435.45

Citation:

Cite this paper

Online since:

March 2010

Authors:

Cui Lin Han, Dong Lin Zhao, Lei Zhang, Zeng Min Shen

Keywords:

C/SiC Composite, Mechanical Property, Three-Dimensional Needling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W. Krenkel: Ceram. Eng. Sci. Proc. Vol. 23 (2002), p.329.

Google Scholar

[2] S.W. Fan, Y.D. Xu, L.T. Zhang, et al.: Mater. Sci. Eng. A Vol. 467 (2007), p.53.

Google Scholar

[3] Y.Z. Cai, Y.D. Xu, B. Li, et al.: J. Eur. Ceram. Soc. Vol. 20 (2009), p.497.

Google Scholar

[4] Y.Z. Cai, Y.D. Xu, B. Li, et al.: Mater. Sci. Eng. A Vol. 497 (2008), p.278.

Google Scholar

[5] Q.S. Ma, Z.H. Chen, W.W. Zheng, et al.: Mater. Sci. Eng. A Vol. 352 (2003), p.212.

Google Scholar

[6] A.G. Evans, F.W. Zok: J. Mater. Sci. Vol. 29 (1994), p.3857.

Google Scholar

[7] V.M. Prokopenko, S.T. Mileiko: Compos. Sci. Technol. Vol. 61 (2001), p.1649.

Google Scholar

[8] C. Blanco, E. Casal, M. Granda, et al.: J. Eur. Ceram. Soc. Vol. 23 (2003), p.2857. Fig. 3. Flexural stress- strain curve of three-dimensional needled C/SiC.

Google Scholar
