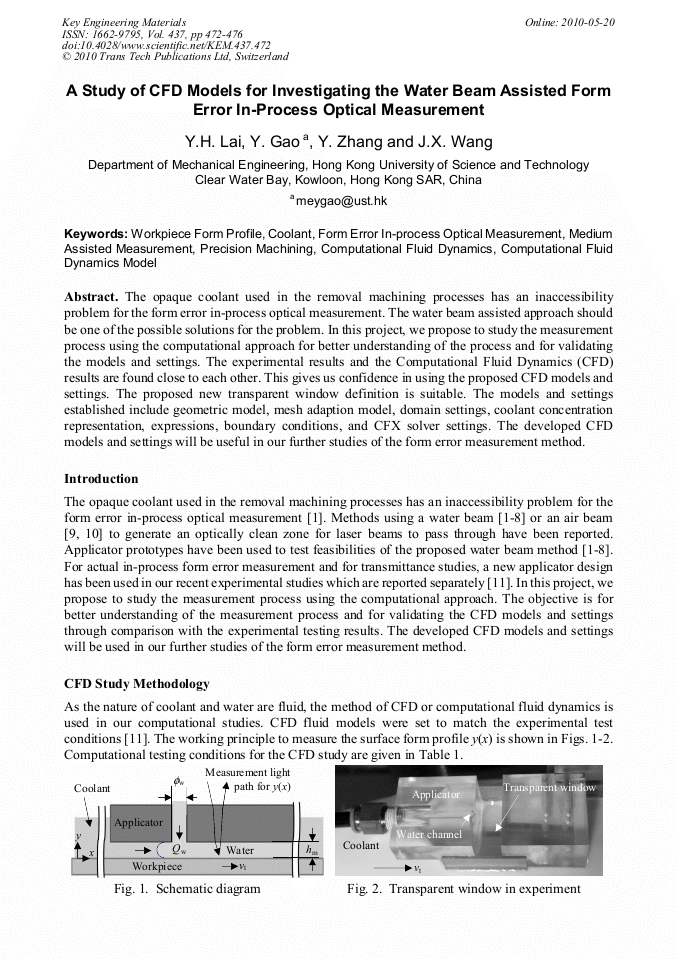

A Study of CFD Models for Investigating the Water Beam Assisted Form Error In-Process Optical Measurement

Abstract:

The opaque coolant used in the removal machining processes has an inaccessibility problem for the form error in-process optical measurement. The water beam assisted approach should be one of the possible solutions for the problem. In this project, we propose to study the measurement process using the computational approach for better understanding of the process and for validating the models and settings. The experimental results and the Computational Fluid Dynamics (CFD) results are found close to each other. This gives us confidence in using the proposed CFD models and settings. The proposed new transparent window definition is suitable. The models and settings established include geometric model, mesh adaption model, domain settings, coolant concentration representation, expressions, boundary conditions, and CFX solver settings. The developed CFD models and settings will be useful in our further studies of the form error measurement method.

• Periodical: Key Engineering Materials (Volume 437)
• Pages: 472-476
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.437.472
• Online since: May 2010
• Authors: Y.H. Lai, Y. Gao, Y. Zhang, J.X. Wang
• Keywords: Computational Fluid Dynamics (CFD), Computational Fluid Dynamics Model, Coolant, Form Error In-Process Optical Measurement, Medium Assisted Measurement, Precision Machining, Workpiece Form Profile

References

[1] Y. Gao, in: Proc ASPE 2001, Vol. 1, p.329.

[2] Y. Gao, S. Tse, Z. Tao and X. Xu: Journal of Materials Processing Tech. Vol. 129 (2002), p.10.

[3] Y. Gao, S. Tse and Z. Tao, in: Int. Progress on Adv Optics and Sensors. Proc EOS 2003. p.263.

[4] S. Tse, Y. Gao, Y. Kuen and Z. Tao: Key Engineering Materials. Vol. 238-239 (2003), p.199.

[5] Y. Gao, Z. Tao and S. Tse: Key Engineering Materials. Vol. 238-239 (2003), p.157.

[6] Z. Tao: PhD Thesis (HKUST, Hong Kong 2003).

[7] Y. Gao, S. Tse and K., Lai, in: Proc ISMQC 2001. p.89.

[8] Y. Gao, S. Tse, W. Li, S. Chan and Z. Tao: Key Eng. Materials. Vol. 238-239 (2003), p.163.

[9] Y. Gao, K. Xiao, Y. Zhang and Y.S. Chan: Key Eng. Materials. Vol. 381-382 (2008), p.183.

[10] Y. Zhang and Y. Gao, in: Proc ISPMM 2008. p.193.

[11] Y. Zhang, Y. Gao, Y.H. Lai and J.X. Wang, in: Proc ISMTII 2009. Vol. 4, pp.4-151.

[12] P. Hug, A.R. Nelson and S.C. Salmon: Key Engineering Materials. Vol. 389-390 (2009), p.308. At (mm 2) Height of medium hm (mm) Water flow rate Qw (ml/s).

[20] [20] 20.

[30] [30] [30] [40] [40] [40] [50] [50] [50] [60] [60] [70] [80] 0. 3 0. 45 0. 6 0. 75 0. 9 1. 05 1. 21. 2 0. 2 0. 3 0. 4 0. 5 0. 60. 6.

[20] [30] [40] [50] [60] [70] [0] 0. 15 0. 3 0. 45 0. 6 0. 75 0. 9 1. 05 1. 2 1. 35.

[10] [20] [30] [40] [50] [60] 70Transparent window size At (mm 2) Water flow rate Qw (ml/s) cc=5% vt=90mm/s hm=0. 4mm CFX result Experimental result [11] CFX image Experimental image.
