Wire Strand and IWRC Modeling and Contact Analysis Using Finite Elements

Abstract:

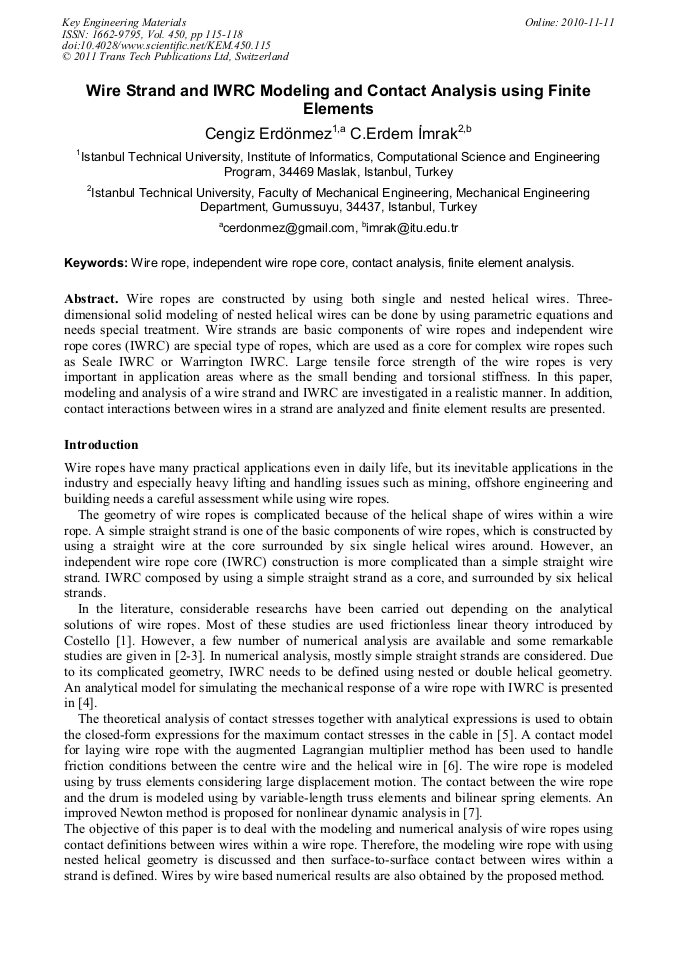

Wire ropes are constructed by using both single and nested helical wires. Three-dimensional solid modeling of nested helical wires can be done by using parametric equations and needs special treatment. Wire strands are basic components of wire ropes and independent wire rope cores (IWRC) are special type of ropes, which are used as a core for complex wire ropes such as Seale IWRC or Warrington IWRC. Large tensile force strength of the wire ropes is very important in application areas where as the small bending and torsional stiffness. In this paper, modeling and analysis of a wire strand and IWRC are investigated in a realistic manner. In addition, contact interactions between wires in a strand are analyzed and finite element results are presented.

• Periodical: Key Engineering Materials (Volume 450)
• Pages: 115-118
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.450.115
• Online since: November 2010
• Authors: Cengiz Erdönmez, C. Erdem Imrak
• Keywords: Contact Analysis, Finite Element Analysis (FEA), Independent Wire Rope Core, Wire Rope
