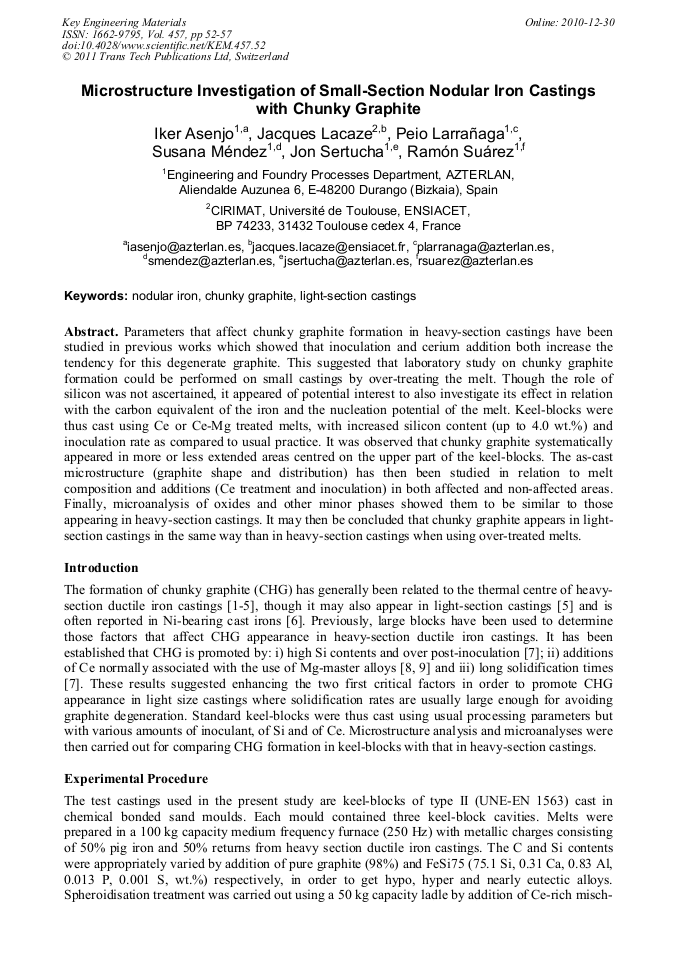

Microstructure Investigation of Small-Section Nodular Iron Castings with Chunky Graphite

Abstract:

Parameters that affect chunky graphite formation in heavy-section castings have been studied in previous works which showed that inoculation and cerium addition both increase the tendency for this degenerate graphite. This suggested that laboratory study on chunky graphite formation could be performed on small castings by over-treating the melt. Though the role of silicon was not ascertained, it appeared of potential interest to also investigate its effect in relation with the carbon equivalent of the iron and the nucleation potential of the melt. Keel-blocks were thus cast using Ce or Ce-Mg treated melts, with increased silicon content (up to 4.0 wt.%) and inoculation rate as compared to usual practice. It was observed that chunky graphite systematically appeared in more or less extended areas centred on the upper part of the keel-blocks. The as-cast microstructure (graphite shape and distribution) has then been studied in relation to melt composition and additions (Ce treatment and inoculation) in both affected and non-affected areas. Finally, microanalysis of oxides and other minor phases showed them to be similar to those appearing in heavy-section castings. It may then be concluded that chunky graphite appears in light-section castings in the same way than in heavy-section castings when using over-treated melts.

• Periodical: Key Engineering Materials (Volume 457)
• Pages: 52-57
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.457.52
• Online since: December 2010
• Authors: Iker Asenjo, Jacques Lacaze, Peio Larrañaga, Susana Méndez, Jon Sertucha, Ramón Suárez
• Keywords: Chunky Graphite, Light-Section Casting, Nodular Iron

References

[1] S. I. Karsay: AFS Transactions Vol. 78 (1970), p.85.

[2] M. Gagné and D. Argo, in: Advanced Casting Technology, edited by J. Easwaren, ASM Int., Metals Park, OH (1987), p.231.

[3] A. Javaid and C. R. Loper Jr.: AFS Transactions Vol. 103 (1995), p.135.

[4] Z. Ignaszak: Materials Science (Medziagotyra) Vol. 9 (2003), p.245.

[5] R. Kallböm: Materials Science and Engineering A Vol. 413-414 (2005), p.346.

[6] M. Gagné and C. Labrecque: AFS Transactions Vol. 115 (2007), paper 07-004(05).

[7] I. Asenjo, P. Larrañaga, J. Sertucha, R. Suárez, J. M. Gómez, I. Ferrer and J. Lacaze: International Journal of Cast Metals Research Vol. 20 (2007), p.319.

DOI: 10.1179/136404608x286138

[8] J. Sertucha, R. Suárez, I. Asenjo, P. Larrañaga, J. Lacaze, I. Ferrer and S. Armendariz: ISIJ International Vol. 49 (2009), p.220.

DOI: 10.2355/isijinternational.49.220

[9] P. Larrañaga, I. Asenjo, J. Sertucha, R. Suárez, I. Ferrer and J. Lacaze: Metallurgical and Materials Transactions Vol. 40A (2009), p.654.

[10] S. Méndez, P. Larrañaga, J. Izaga and R. Suárez: Proceedings 2010 World Foundry Congress, in press.

[11] S. Méndez, D. López, I. Asenjo, P. Larrañaga and J. Lacaze, unpublished research.

[12] R. Källbom, K. Hamberg and L-E. Bjorkegren: World Foundry Congress (2006), paper 184.
