Elastic-Plastic Analysis of Surface Crack in Round Bars under Torsion

Abstract:

An elastic-plastic finite element analysis (FEA) is used to determine the J-integral around the crack front of 3-dimensional semi-elliptical surface crack in a round bar under torsion loading. Crack geometries are based on the experimental observation. The present model is validated using the SIF under bending loading since no suitable SIF for torsion is available. Lack of numerical solution of elastic and plastic stress parameters under torsion are found. The FE J values are normalized by dividing with the estimation J value using a reference stress method. It is found that higher J values are obtained for deep cracks and the maximum J changed from the deepest point along the crack front to the outer point at the free surface when a/D > 0.2. J values can be estimated for all type of crack geometries under consideration with a correction factor, h1.

You might also be interested in these eBooks

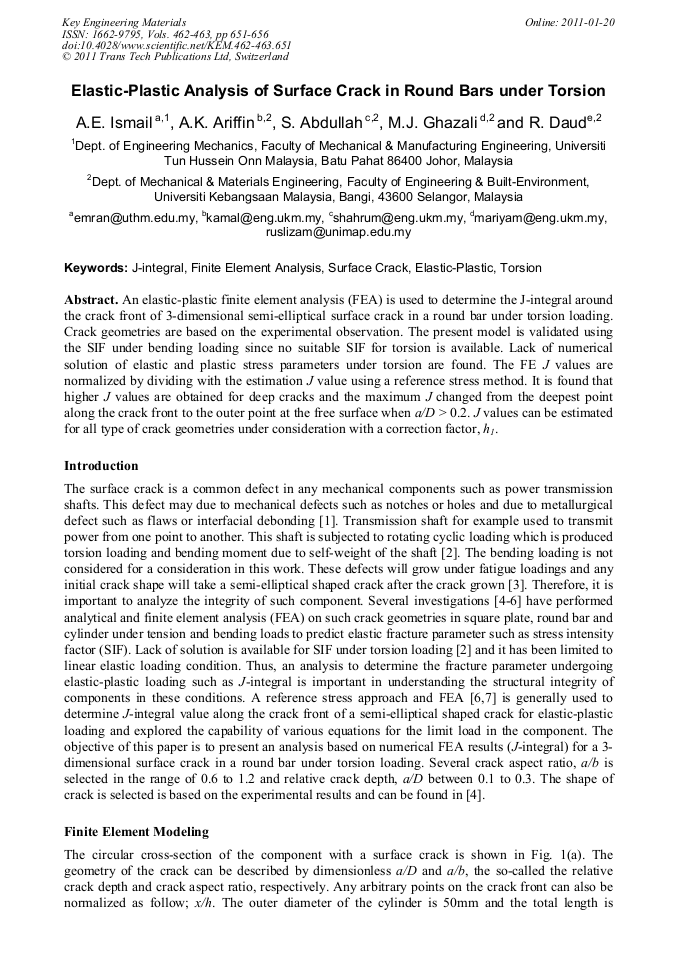

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 462-463)

Pages:

651-656

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.462-463.651

Citation:

Cite this paper

Online since:

January 2011

Authors:

Al Emran Ismail, Ahmad Kamal Ariffin, Shahrum Abdullah, Mariyam Jameelah Ghazali, Ruslizam Daud

Keywords:

Elastic-Plastic, Finite Element Analysis (FEA), Ĵ-Integral, Surface Crack, Torsion

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W.F. Pan, C.Y. Hung and L.L. Chen: Int. J. Fatigue Vol. 21 (1999), p.3.

Google Scholar

[2] M. d. Fonte and M. d. Freitas: Int. J. Fatigue Vol. 21 (1999), p.457.

Google Scholar

[3] X.B. Smith and R.A. Smith: Int. J. Fatigue Vol. 19 (1997), p.461.

Google Scholar

[4] K.O. Findley, S.W. Koh and A. Saxena: Int. J. Fatigue Vol. 29 (2007), p.822.

Google Scholar

[4] J.C. Newman and I.S. Raju, in: Stress intensity factor equations for cracks in three-dimensional finite bodies, edited by J.C. Lewis, G. Sines, Fracture Mechanics: Fourteenth symposium – Vol. 1: Theory and analysis (1983).

DOI: 10.1520/stp37074s

Google Scholar

[6] Y.J. Kim, D.J. Shim, J.B. Choi and Y.J. Kim: Engng. Frac. Mech. Vol. 69 (2002), p.1447.

Google Scholar

[7] Y. Lei: Int. Journal of Pressure Vessels and Piping Vol. 81 (2004), p.21.

Google Scholar

[8] A. Carpinteri, S. Vantadori: Int. J. Fatigue Vol. 31 (2009), p.759.

Google Scholar
