Preparation of Nafion/SiO2 Composite Membrane of Direct Ethanol Fuel Cell

Abstract:

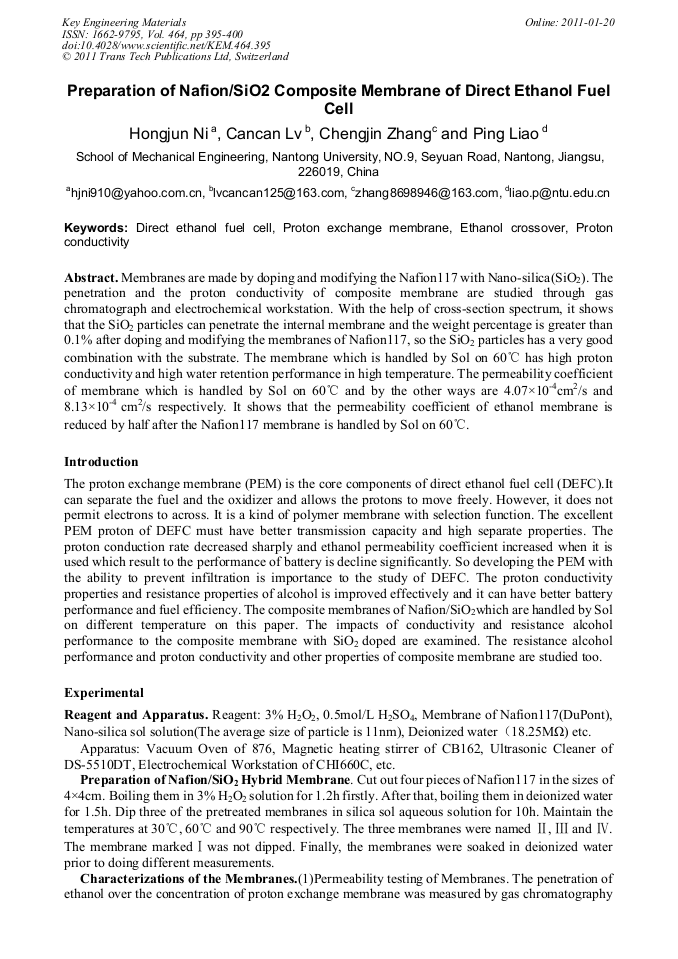

Article Preview

Membranes are made by doping and modifying the Nafion117 with Nano-silica(SiO2). The penetration and the proton conductivity of composite membrane are studied through gas chromatograph and electrochemical workstation. With the help of cross-section spectrum, it shows that the SiO2 particles can penetrate the internal membrane and the weight percentage is greater than 0.1% after doping and modifying the membranes of Nafion117, so the SiO2 particles has a very good combination with the substrate. The membrane which is handled by Sol on 60°C has high proton conductivity and high water retention performance in high temperature. The permeability coefficient of membrane which is handled by Sol on 60°C and by the other ways are 4.07×10-4cm2/s and 8.13×10-4 cm2/s respectively. It shows that the permeability coefficient of ethanol membrane is reduced by half after the Nafion117 membrane is handled by Sol on 60°C.

Info:

Periodical:

Edited by:

Long Chen, Yongkang Zhang, Aixing Feng, Zhenying Xu, Boquan Li and Han Shen

Pages:

395-400

DOI:

10.4028/www.scientific.net/KEM.464.395

Citation:

H. J. Ni et al., "Preparation of Nafion/SiO2 Composite Membrane of Direct Ethanol Fuel Cell", Key Engineering Materials, Vol. 464, pp. 395-400, 2011

Online since:

January 2011

Export:

Price:

$38.00

[1] P. Liao, H.J. Ni and C.J. Zhang: China. Patent 200910182793. 2. (2009).

[2] P Staiti, A Arico and V Baglio: Solid State Lonics, Vol. 145 (2001) No. (1-4), pp.101-107.

[3] H.P. Hu, X. Zhang and H.Y. Hu: Functional Materials, Vol. 11 (2008) No. 39, pp.1915-1918. (In Chinese).

[4] Y.H. Liu, B.L. Yi and M.H. Zhang.: Power Technology, Vol. 29 (2005) No. 2, pp.92-95. (In Chinese).

[5] W.B. Yang, H. Zhu and M. Wang: Functional Materials, Vol. 12 (2007) No. 38, pp.2077-2083. (In Chinese).

[6] H.D. Yeny, S.H. Choi and S. H Shu: Microporous and Mesoporous Materials, Vol. 118 (2009)No. (1-3), pp.427-434.
