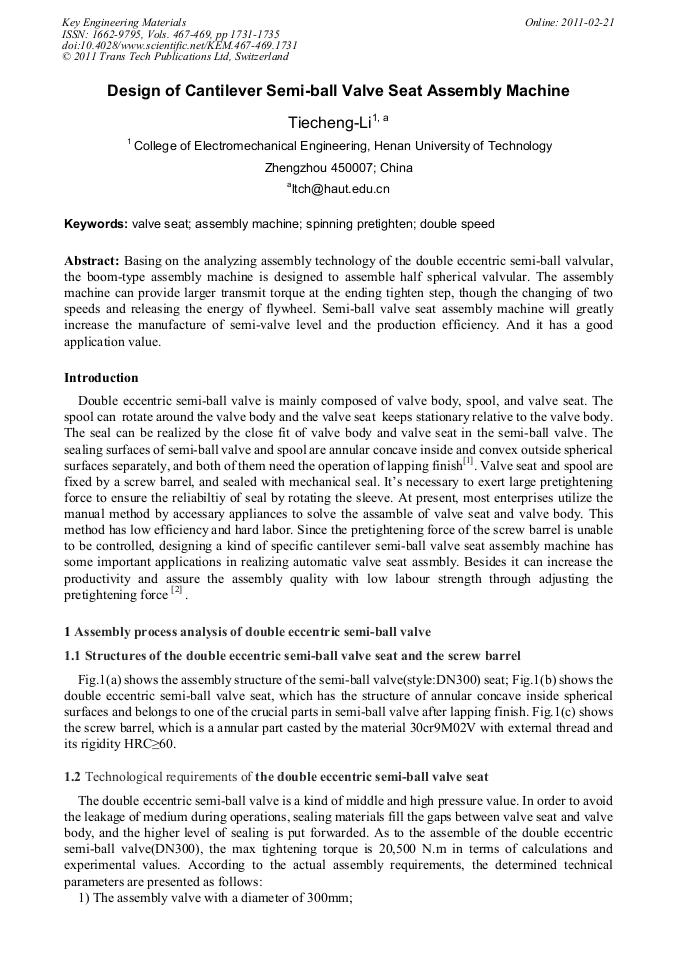

Design of Cantilever Semi-Ball Valve Seat Assembly Machine

Abstract:

Basing on the analyzing assembly technology of the double eccentric semi-ball valvular, the boom-type assembly machine is designed to assemble half spherical valvular. The assembly machine can provide larger transmit torque at the ending tighten step, though the changing of two speeds and releasing the energy of flywheel. Semi-ball valve seat assembly machine will greatly increase the manufacture of semi-valve level and the production efficiency. And it has a good application value.

• Periodical: Key Engineering Materials (Volumes 467-469)
• Pages: 1731-1735
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.467-469.1731
• Online since: February 2011
• Authors: Tie Cheng Li
• Keywords: Assembly Machine, Double Speed, Spinning Pretighten, Valve Seat

References

[1] Wenping He, Zongcai Wang, Tiecheng Li: Coal Mine Machinery, Vol. 9(2008), p.107.

[2] Shuren Zheng，Junhua Cheng: Machinery Design & Manufacture. Vol. 4(2003), p.98.

[3] Yihua Shen, Luhai Tong: Light Industry Machinery, Vol. 4(2007), p.106.

[4] Zhifu Yang, Hui Yang, Yingang Yang, etc: Modular Machine Tool & Automatic Manufacturing Technique, Vol. 9(2005), p.90.

[5] Min Zhao, Yingmin Pan, Yaping Lu, etc: Mining and Metallurgy, Vol. 4(2003), p.71.

[6] Daxian Cheng: Handbook of mechanical design (3th). (Chemical Industry Press, Beijing, China 2002).

[7] Zhihui Liu, Ziqiang Zhang: Machinery&Electronics, Vol. 6(2009), p.31.
