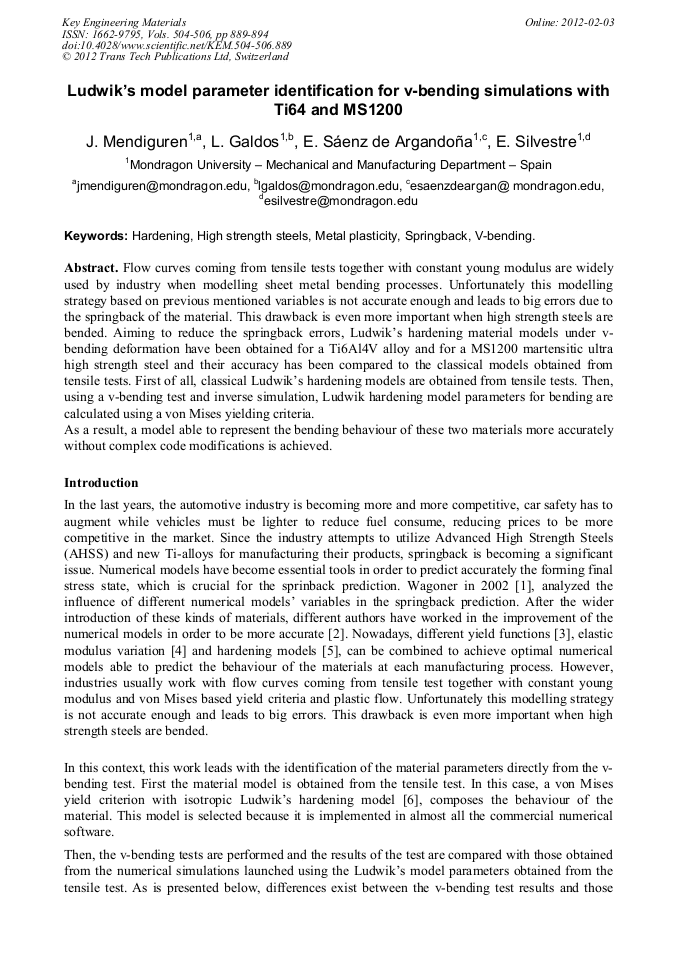

Ludwik’s Model Parameter Identification for V-Bending Simulations with Ti64 and MS1200

Abstract:

Flow curves coming from tensile tests together with constant young modulus are widely used by industry when modelling sheet metal bending processes. Unfortunately this modelization strategy based on previous mentioned variables is not accurate enough and leads to big errors due to the springback of the material. This drawback is even more important when high strength steels are bended. Aiming to reduce the springback errors, Ludwik’s hardening material models under bending deformation have been obtained for a Ti6Al4V alloy and for a MS1200 martensitic ultra high strength steel and their accuracy has been compared to the classical models obtained from tensile tests. First of all, classical Ludwik’s hardening models are obtained from tensile tests. Then, using a V-Bending test and inverse simulation, Ludwik hardening model parameters for bending are calculated using a Von Mises yielding criteria. As a result, a model able to represent the bending behaviour of these two materials more accurately without complex code modifications is achieved.

• Periodical: Key Engineering Materials (Volumes 504-506)
• Pages: 889-894
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.504-506.889
• Online since: February 2012
• Authors: Joseba Mendiguren, Lander Galdos, Eneko Sáenz de Argandoña, E. Silvestre
• Keywords: Hardening, High Strength Steel (HSS), Metal Plasticity, Springback, V-Bending

References

[1] K. Li, W. Carden, R. Wagoner, Simulation of springback, International Journal of Mechanical Sciences. 44 (2002) 103-122.

DOI: 10.1016/s0020-7403(01)00083-2

[2] S. Zang, C. Guo, S. Thuillier, M. Lee, A model of one-surface cyclic plasticity and its application to springback prediction, International Journal of Mechanical Sciences. 53 (2011) 425-435.

DOI: 10.1016/j.ijmecsci.2011.03.005

[3] A. Taherizadeh, D. Green, A. Ghaei, J.W. Yoon, A non-associated constitutive model with mixed iso-kinematic hardening for finite element simulation of sheet metal forming, International Journal of Plasticity. 26 (2010) 288-309.

DOI: 10.1016/j.ijplas.2009.07.003

[4] M. Vrh, M. Halilovic, B. Stok, Impact of young's modulus degradation on springback calculation in steel sheet drawing, Journal of Mechanical Engineering. 54 (2008) 288-296.

[5] A. Taherizadeh, A. Ghaei, D. Green, W. Altenhof, Finite element simulation of springback for a channel draw process with drawbead using different hardening models, International Journal of Mechanical Sciences. 51 (2009) 314-25.

DOI: 10.1016/j.ijmecsci.2009.03.001

[6] Y. Bergstrom, H. Hallen, An improved dislocation model for the stress-strain behaviour of polycrystalline -Fe, Material Science and Engineering. 55 (1982) 49 -61.

DOI: 10.1016/0025-5416(82)90083-0

[7] L. Galdos, C. García, A. Aginagalde, J. A. Esnaola, Influence of the lubrication in tube hydroforming processes. Method for the determination of the friction coefficients and modelling of the process. Advances in Materials Processing Technologies, AMPT'2006, Las Vegas (2006).

[8] J. A. Nelder, R. Mead, A Simplex Method for Function Minimization, The Computer Journal. 7 (1965) 308-313.

DOI: 10.1093/comjnl/7.4.308
