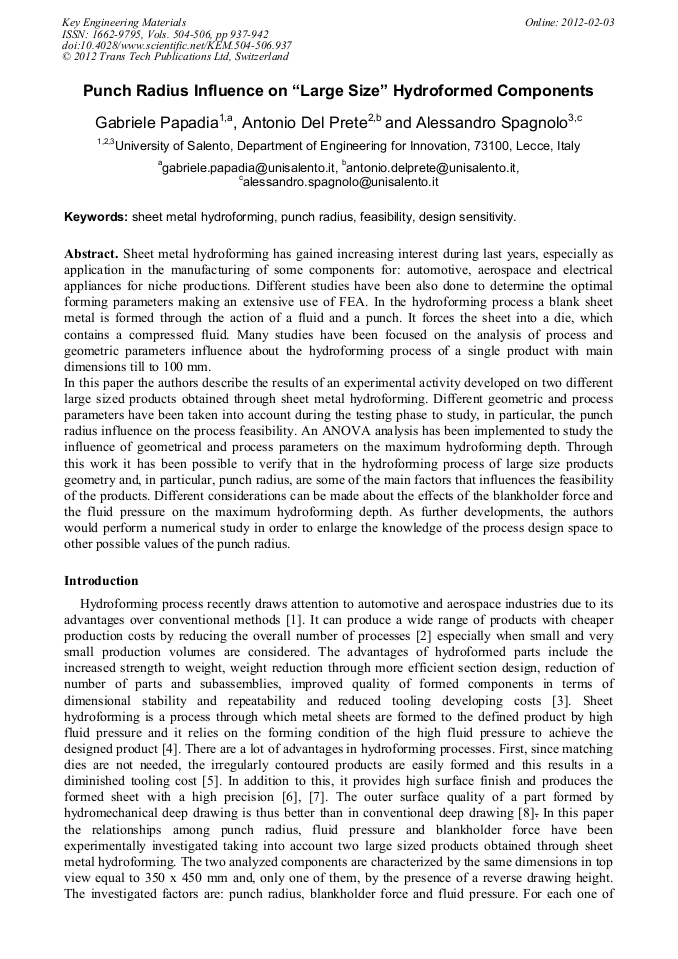

Punch Radius Influence on “Large Size” Hydroformed Components

Abstract:

Sheet metal hydroforming has gained increasing interest during last years, especially as application in the manufacturing of some components for: automotive, aerospace and electrical appliances for niche productions. Different studies have been also done to determine the optimal forming parameters making an extensive use of FEA. In the hydroforming process a blank sheet metal is formed through the action of a fluid and a punch. It forces the sheet into a die, which contains a compressed fluid. Many studies have been focused on the analysis of process and geometric parameters influence about the hydroforming process of a single product with main dimensions till to 100 mm. In this paper the authors describe the results of an experimental activity developed on two different large sized products obtained through sheet metal hydroforming. Different geometric and process parameters have been taken into account during the testing phase to study, in particular, the punch radius influence on the process feasibility. An ANOVA analysis has been implemented to study the influence of geometrical and process parameters on the maximum hydroforming depth. Through this work it has been possible to verify that in the hydroforming process of large size products geometry and, in particular, punch radius, are some of the main factors that influences the feasibility of the products. Different considerations can be made about the effects of the blankholder force and the fluid pressure on the maximum hydroforming depth. As further developments, the authors would perform a numerical study in order to enlarge the knowledge of the process design space to other possible values of the punch radius.

• Periodical: Key Engineering Materials (Volumes 504-506)
• Pages: 937-942
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.504-506.937
• Online since: February 2012
• Authors: Gabriele Papadia, Antonio Del Prete, Alessandro Spagnolo
• Keywords: Design Sensitivity, Feasibility, Punch Radius, Sheet Metal Hydroforming

References

[1] Lihui Lang, Joachim Danckert, Karl Brian Nielsen and Xibin Zhou, Investigation into the forming of a complex cup locally constrained by a round die based on an innovative hydromechanical deep drawing method, Journal of Materials Processing Technology 167 (2005) 191–200.

DOI: 10.1016/j.jmatprotec.2005.06.030

[2] L. Lang, Z.R. Wang, S. Yuan, D. Kang, S. Zhang, J. Danckert, K.B. Nielsen, Hydroforming highlights: sheet hydroforming and tube hydroforming, J. Mater. Process. Technol. 151 (1–3) (2004) 165–177.

DOI: 10.1016/j.jmatprotec.2004.04.032

[3] L. Lang, J. Danckert, K.B. Nielsen, Analysis of key parameters in sheet hydroforming combined with stretching forming and deep drawing, J. Eng. Manuf. Proc. IMechE, Part B 218 (2004) 845–856.

DOI: 10.1243/0954405041486145

[4] A. Tekkaya, State-of-the-art of simulation of sheet metal forming, Journal of Materials Processing Technology, (2000) Vol.103, pp.14-22.

DOI: 10.1016/s0924-0136(00)00413-1

[5] Lihui Lang, Tao Li, Xianbin Zhou, Joachim Danckert, Karl Brian Nielsen, The effect of the key process parameters in the innovative hydroforming on the formed parts, Journal of Materials Processing Technology 187–188 (2007) 304–308.

DOI: 10.1016/j.jmatprotec.2006.11.196

[6] G. Papadia, A. Del Prete, A. Spagnolo, A. Anglani, Pre-bulging influence on a inverse drawn shape obtained with Hydromechanical Deep Drawing (HDD), International Journal of Material Forming, Vol. 3, No. 0. (1 April 2010), pp.287-290.

DOI: 10.1007/s12289-010-0763-7

[7] R. Padmanabhan, M.C. Oliveira, J.L. Alves, L.F. Menezes, Influence of process parameters on the deep drawing of stainless steel, Finite Elements in Analysis and Design 43 (2007) 1062 – 1067.

DOI: 10.1016/j.finel.2007.06.011

[8] T. Khandeparkar, M. Liewald, Hydromechanical deep drawing of cups with stepped geometries, Journal of materials processing technology, 202 (2008) 246–254.

DOI: 10.1016/j.jmatprotec.2007.08.072
