Experimental and Numerical Investigation on the Formability of Clad Sheets Copper/Stainless Steel 304L in Spinning Process

Abstract:

In present study, spinning process of clad sheets composed of Copper and Stainless steel 304L is investigated experimentally. To achieve the Copper-Steel 304L clad sheet the explosive welding method is used. In order to smooth the surface of clad sheets, a cold roll forming process was carried out. The clad sheets were heat treated to improve the metallurgical bounding and formability. The mechanical properties of copper-steel clad sheet were obtained by experimental measurements. Spinning process was performed on Copper-steel 304L clad sheets with internal layer of copper and external layer of steel. Different experimental tests are carried out to investigate the effects of some influential parameters including the tool path and the tool materials on formability of the clad sheets. Moreover, corresponding numerical simulations were made to verify the experimental values. Finally comparison of thickness strain distribution of a perfect product sample shows a reasonable agreement between numerical and experimental data.

You might also be interested in these eBooks

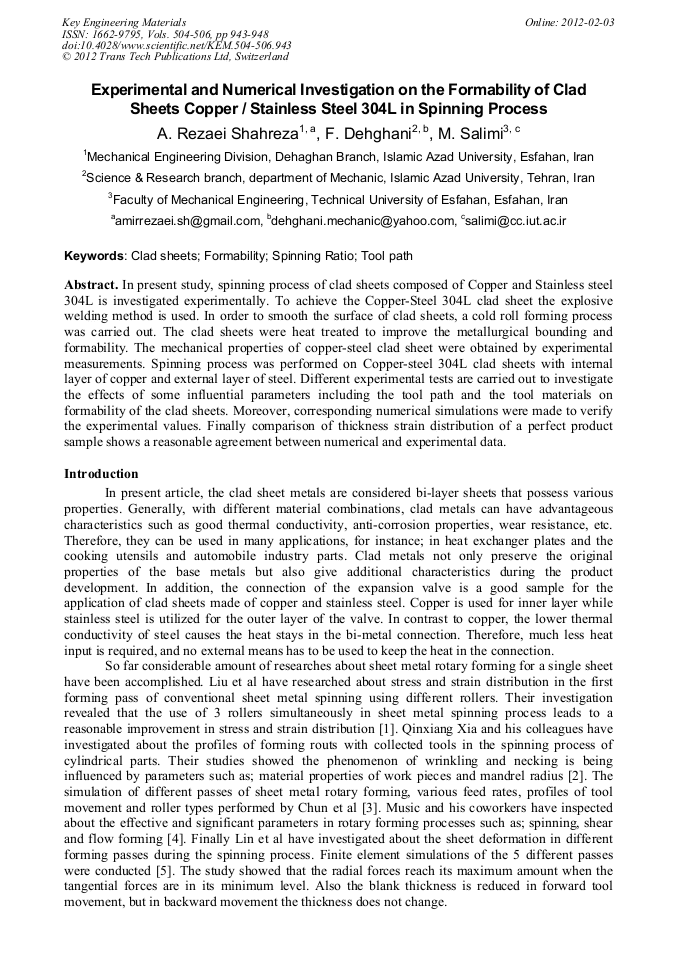

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 504-506)

Pages:

943-948

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.504-506.943

Citation:

Cite this paper

Online since:

February 2012

Authors:

Amir Rezaei Shahreza, Farshid Dehghani, Mahmood Salimi

Keywords:

Clad Sheets, Formability, Spinning Ratio, Tool Path

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.H. Liu, H.Yang, Y.Q.Li, "A study of the stress and strain distributions of first-pass conventional spinning under different roller-traces", pp.326-329, Journal of Materials Processing Technology, (2002)

DOI: 10.1016/s0924-0136(02)00682-9

Google Scholar

[2] Qinxiang Xia, Susumu Shima, Hidetoshi Kotera, DaifuYasuhuku "A study of the one-path deep drawing spinning of cups", pp.397-400, Journal of Materials Processing Technology, (2005)

DOI: 10.1016/j.jmatprotec.2004.05.027

Google Scholar

[3] Chun-Ho Liu, "The simulation of the multi-pass and die-less spinning process", pp.518-524, Vol. 192-193, Journal of Materials Processing Technology, (2007)

DOI: 10.1016/j.jmatprotec.2007.04.021

Google Scholar

[4] O. Music, J. M. All wood, K. Kawai, "A review of the mechanics of metal spinning" pp.3-23, Vol. 210, Journal of Materials Processing Technology, (2010)

Google Scholar

[5] Lin Wang, Hui Long, "Investigation of material deformation in multi-pass conventional metal spinning", pp.2891-2899, Materials and Design, (2011)

DOI: 10.1016/j.matdes.2010.12.021

Google Scholar
