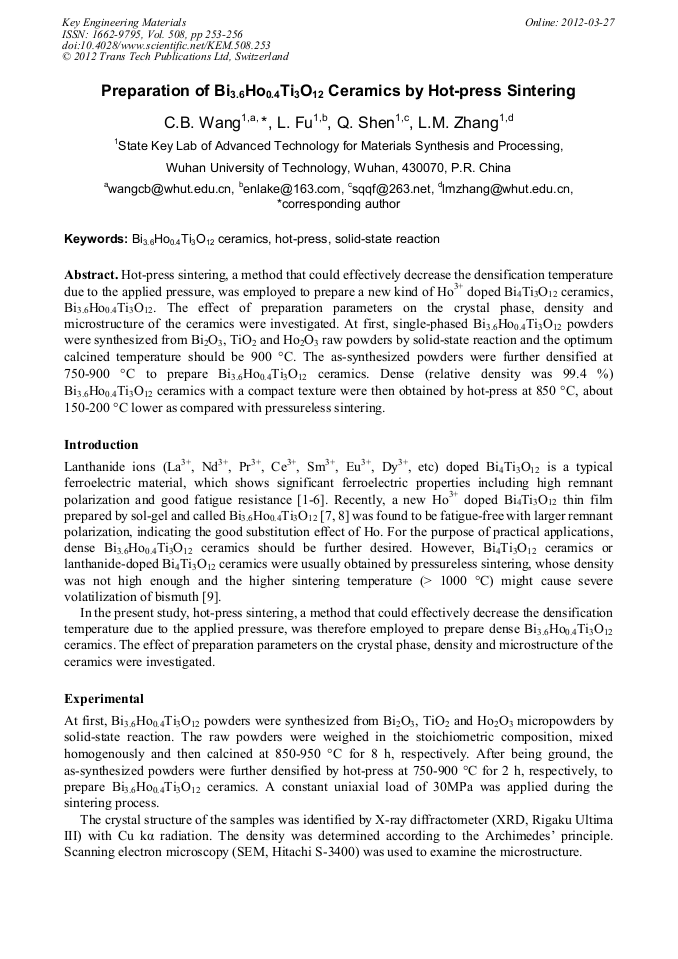

Preparation of Bi_3.6Ho_0.4Ti₃O₁₂ Ceramics by Hot-Press Sintering

Abstract:

Hot-Press Sintering, a Method that Could Effectively Decrease the Densification Temperature due to the Applied Pressure, Was Employed to Prepare a New Kind of Ho³⁺ Doped Bi₄Ti₃O₁₂ Ceramics, Bi_3.6Ho_0.4Ti₃O₁₂. The Effect of Preparation Parameters on the Crystal Phase, Density and Microstructure of the Ceramics Were Investigated. at First, Single-Phased Bi_3.6Ho0.4Ti3O12 Powders Were Synthesized from Bi2o3, Tio2 and Ho2o3 Raw Powders by Solid-State Reaction and the Optimum Calcined Temperature Should Be 900 °C. The as-Synthesized Powders Were Further Densified at 750-900 °C to Prepare Bi_3.6Ho_0.4Ti₃O₁₂ Ceramics. Dense (relative Density Was 99.4 %) Bi_3.6Ho_0.4Ti₃O₁₂ Ceramics with a Compact Texture Were then Obtained by Hot-Press at 850 °C, about 150-200 °C Lower as Compared with Pressureless Sintering.

• Periodical: Key Engineering Materials (Volume 508)
• Pages: 253-256
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.508.253
• Online since: March 2012
• Authors: Chuan Bin Wang, L. Fu, Qiang Shen, Lian Meng Zhang
• Keywords: Bi_3.6Ho_0.4Ti₃O₁₂ Ceramics, Hot-Press, Solid-State Reaction

References

[1] B.H. Park, B.S. Kang, S.D. Bu, Nature 401 (1999) 682-684.

[2] A. Garg, Z.H. Barbr, M. Dawber, Appl. Phys. Lett. 83 (2003) 2414-2416.

[3] U. Chon, J.S. Shim, H.M. Jang, J. Appl. Phys. 93 (2003) 4769-4775.

[4] U. Chon, K.B. Kim, H. M. Jang, Appl. Phys. Lett. 79 (2001) 3137-3139.

[5] S.S. Kim, C.J. Bae, W.J. Kim, J. Cryst. Growth 274 (2005) 394-401.

[6] C.P. Cheng, M.H. Tang, Z. Ye, Mater. Lett. 61 (2007) 4117-4120.

[7] D.Y. Guo, M.Y. Li, J. Wang, Appl. Phys. Lett. 91 (2007) 232905-3.

[8] D.Y. Guo, L.M. Zhang, M.Y. Li, J. Am. Ceram. Soc. 91 (2008) 3280-3284.

[9] V.B. Santos, J.C. M'Peko, M. Mir, J. Eur. Ceram. Soc. 29 (2009) 751-756.

[10] H.F. Yu, H.R. Zeng, L.N. Zhang, Mater. Lett. 59 (2005) 1538-1541.
