Paper Titles

The Effect of Load Ratio and Grain Size on Fatigue Crack Growth Rates in Nickel Base Superalloy AP-1
p.209

An Analysis on Surface Crack Growth under Rotary Bending Fatigue in Terms of Fracture Mechanics
p.215

Fatigue Crack Propagation between Holes or Ingredients
p.221

Surface Crack Growth Behavior in Corrosion Fatigue of Off-Shore Structural Steel
p.227

Material Degradation and Strength Characteristics of a Long-Term Operated HP-IP Rotor
p.233

Analytical Evaluation of Remaining Service Life of Fossil Steam Turbine Rotor and Casing
p.241

Standardization of Grain Boundary Etching Test Method for Evaluating High Temperature Material Degradation
p.247

The Evaluation for In-Service Material Degradation of Superheater Tubes of Fossil Boiler
p.253

DBTT Estimation of Ferritic Low Alloy Steels in Service Plant by means of Small Punch Test
p.259

HomeKey Engineering MaterialsKey Engineering Materials Vols. 51-52Material Degradation and Strength Characteristics...

Material Degradation and Strength Characteristics of a Long-Term Operated HP-IP Rotor

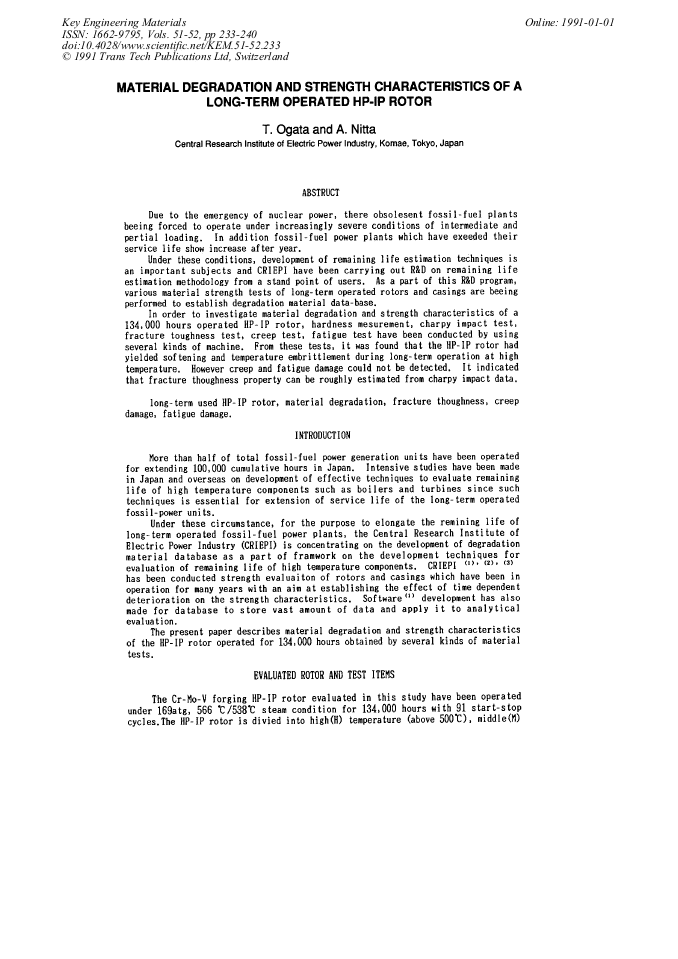

Article Preview

Abstract:

You might also be interested in these eBooks

Fracture and Strength '90

Info:

Periodical:

Key Engineering Materials (Volumes 51-52)

Pages:

233-240

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.51-52.233

Citation:

Cite this paper

Online since:

January 1991

Authors:

Takashi Ogata, A. Nitta

Keywords:

Creep Damage, Fatigue Damage, Fracture Toughness, Long-Term Used HP-IP Rotor, Material Degradation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 1991 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:
