Figuring of Aspherical Metal Mirror Substrate for Neutron Focusing by Numerically Controlled Electrochemical Machining

Abstract:

Article Preview

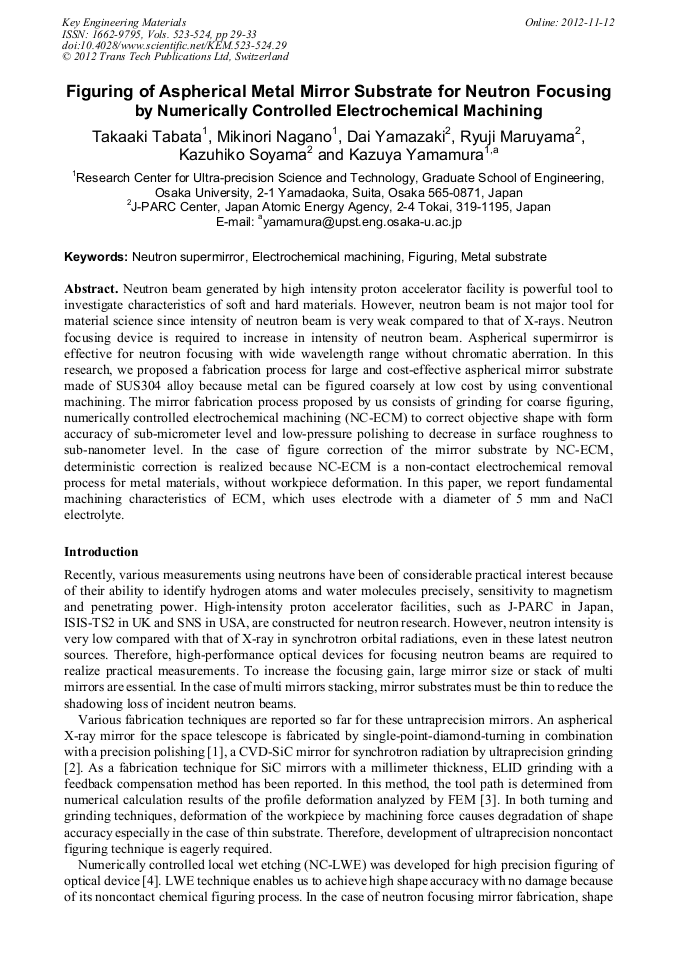

Neutron beam generated by high intensity proton accelerator facility is powerful tool to investigate characteristics of soft and hard materials. However, neutron beam is not major tool for material science since intensity of neutron beam is very weak compared to that of X-rays. Neutron focusing device is required to increase in intensity of neutron beam. Aspherical supermirror is effective for neutron focusing with wide wavelength range without chromatic aberration. In this research, we proposed a fabrication process for large and cost-effective aspherical mirror substrate made of aluminum alloy because metal can be figured coarsely at low cost by using conventional machining. The mirror fabrication process proposed by us consists of grinding for coarse figuring, numerically controlled electrochemical machining (NC-ECM) to correct objective shape with form accuracy of sub-micrometer level and low-pressure polishing to decrease in surface roughness to sub-nanometer level. In the case of figure correction of the mirror substrate by NC-ECM, deterministic correction is realized because NC-ECM is a non-contact electrochemical removal process for metal materials, without workpiece deformation. In this paper, we report fundamental machining characteristics of ECM, which uses electrode with a diameter of 10 mm and NaNO3 electrolyte.
