In-Process Monitoring of Tool Behavior and Tool Wear in End Milling by Use of Projection Image

Abstract:

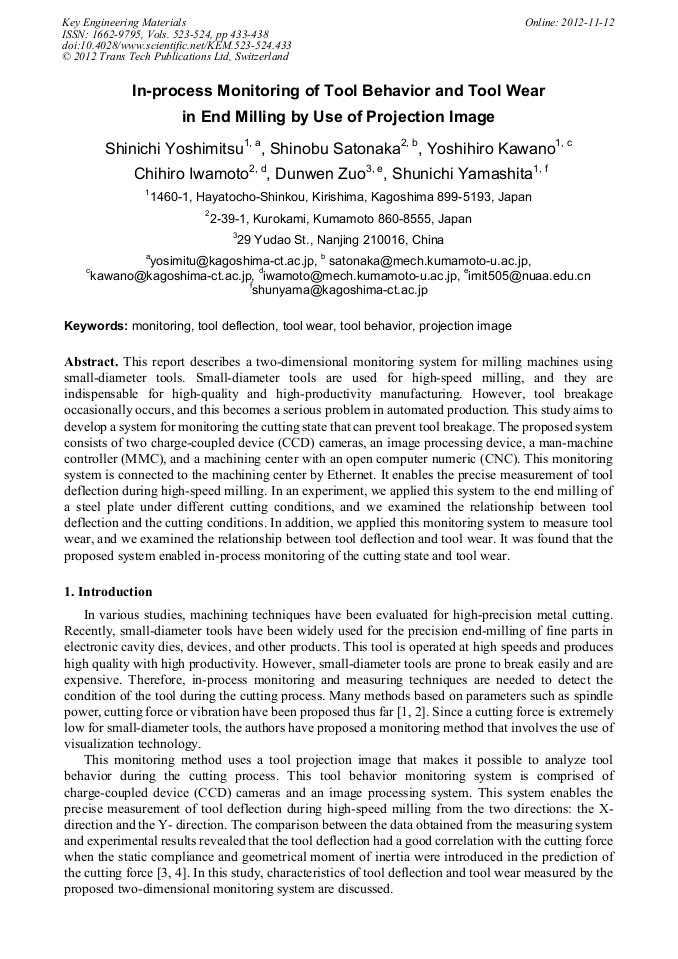

Article Preview

This report describes a two-dimensional monitoring system for milling machines using small-diameter tools. Small-diameter tools are used for high-speed milling, and they are indispensable for high-quality and high-productivity manufacturing. However, tool breakage occasionally occurs, and this becomes a serious problem in automated production. This study aims to develop a system for monitoring the cutting state that can prevent tool breakage. The proposed system consists of two charge-coupled device (CCD) cameras, an image processing device, a man-machine controller (MMC), and a machining center with an open computer numeric (CNC). This monitoring system is connected to the machining center by Ethernet. It enables the precise measurement of tool deflection during high-speed milling. In an experiment, we applied this system to the end milling of a steel plate under different cutting conditions, and we examined the relationship between tool deflection and the cutting conditions. In addition, we applied this monitoring system to measure tool wear, and we examined the relationship between tool deflection and tool wear. It was found that the proposed system enabled in-process monitoring of the cutting state and tool wear.

Info:

Periodical:

Key Engineering Materials (Volumes 523-524)

Edited by:

Tojiro Aoyama, Hideki Aoyama, Atsushi Matsubara, Hayato Yoshioka and Libo Zhou

Pages:

433-438

Citation:

S. Yoshimitsu et al., "In-Process Monitoring of Tool Behavior and Tool Wear in End Milling by Use of Projection Image", Key Engineering Materials, Vols. 523-524, pp. 433-438, 2012

Online since:

November 2012

Export:

Price:

$38.00

[1] Daikoh Y, Terabayashi T, Matsuda M. Micro Drilling of Printed Circuit Boards (1st Report). Journal of JSPE, 1994, 60(12): 1796-1800.

DOI: https://doi.org/10.2493/jjspe.60.1796

[2] Miyaguchi T, Takeoka E, Masuda M, Iwabe H. Dynamic Cutting Force in High-Spindle-Speed Milling Using Small Ball End mill. Journal of JSPE, 2001, 67(3): 450-455.

DOI: https://doi.org/10.1016/s0141-6359(01)00067-8

[3] Kawano Y, Zuo D, Satonaka S, Yoshimitsu S, Yamashita S. Monitoring System for Behavior of Small-diameter End Mill by Use of CCD Image (Performance Characteristics of Measuring System). Journal of JSPE, 2005: 363-368.

[4] Yoshimitsu S, Kawano Y, Satonaka S, Iwamoto C, Yamashita S. Image Processing and Two Dimensional Monitoring of Tool Behavior in End Milling with Small Diameter Tool. ASPEN2009, 1D6(2009).
